Product Description

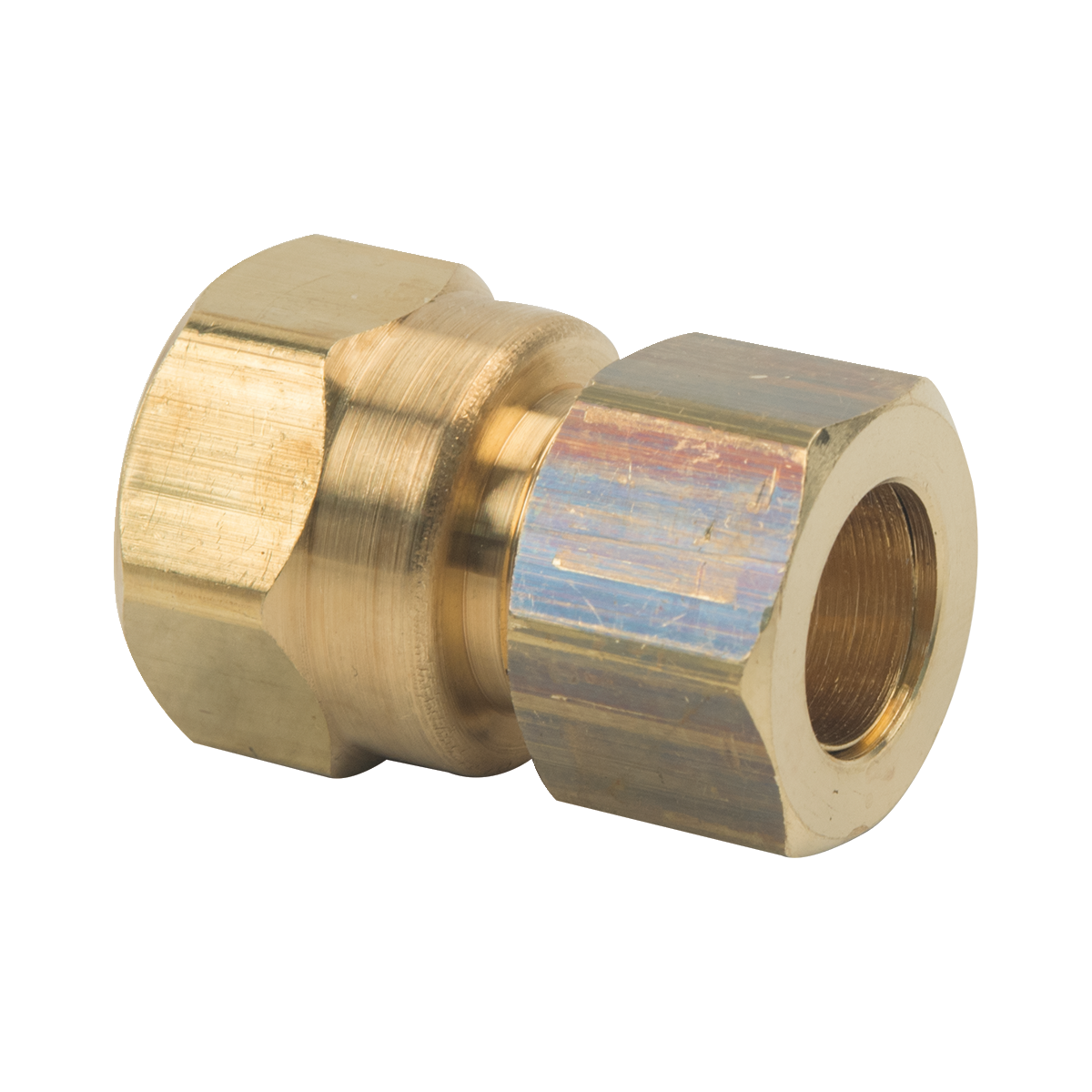

The BrassCraft compression adapter, MPN 66-8-8X, is designed for efficient plumbing applications. It connects a 1/2 inch outside diameter tube to a 1/2 inch female iron pipe in a secure manner. The fitting is suitable for both potable and non-potable water systems.
- Brass construction for durability
- Compatible with aluminum and copper tubing
- No flaring or soldering required
Product Highlights
This compression fitting simplifies connections without the need for extensive tube preparation. It is ideal for hydraulic and pneumatic systems, making it versatile for various applications.
Product Information
Standard Information
-
Brand: BrassCraft
-
MPN: 66-8-8X
Technical Specifications
-
Overall Dimensions: 0.88 x 0.88 x 0.88 inches
-
Finish: Rough Brass
-
Item Weight: 0.09287 lbs
-
Temperature Rating: -65 degrees to 250 degrees F at maximum operating pressures
-
Working Pressure: 200 psi
-
Compatibility: Designed for aluminum and copper tubing, not recommended for steel tubing
-
Additional Notes: Sleeves and/or inserts needed for plastic and PEX tubing installations
