Product Description

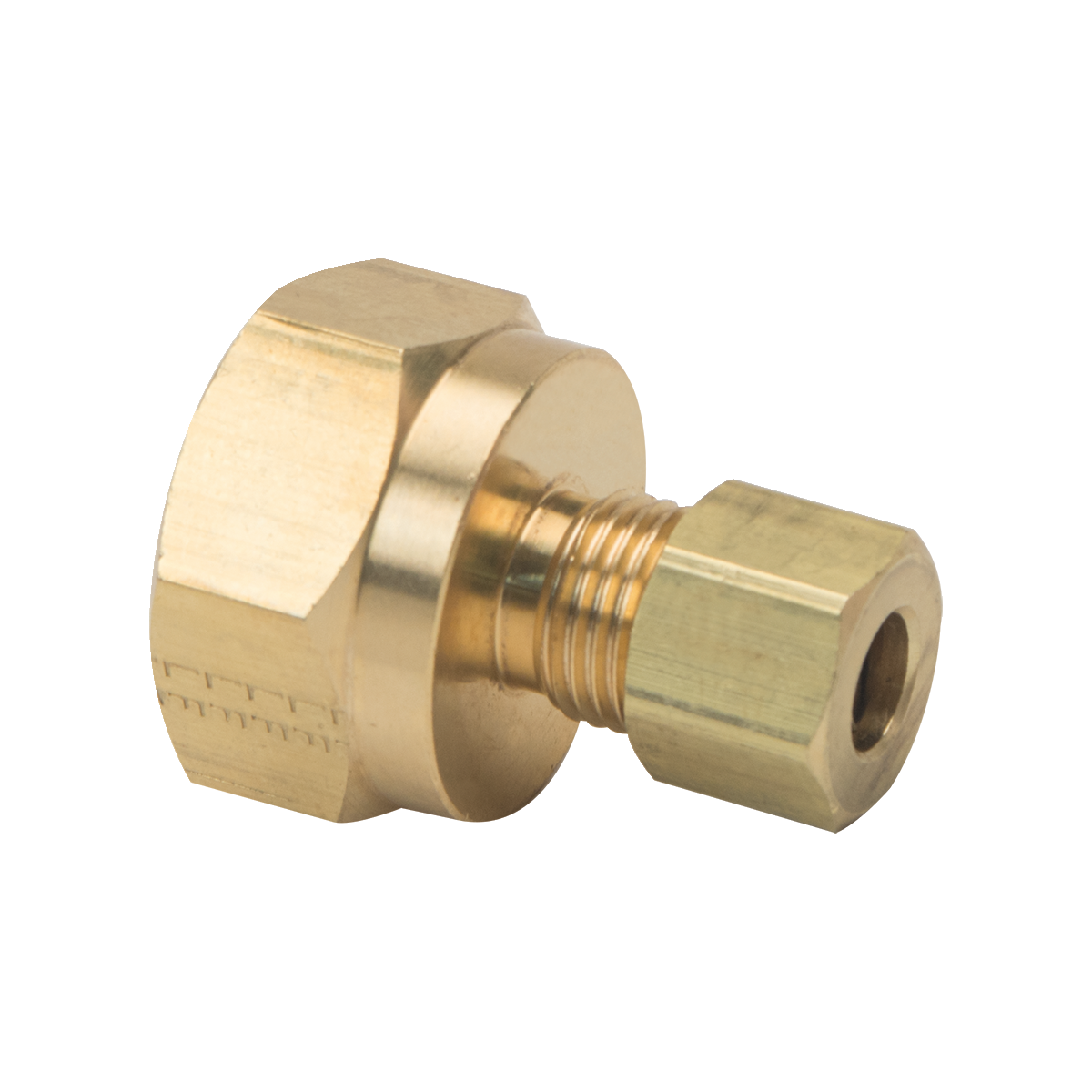

The BrassCraft 66-4-8X is a compression reducing adapter designed for connecting 1/4 inch O.D. tube to 1/2 inch FIP threads. It is applicable for various plumbing and pneumatic systems. This product is made from durable brass to ensure longevity and reliability in installation.
- Use with aluminum and copper tubing.
- No flaring or soldering needed.
- Compatible with potable and non-potable water systems.
Product Highlights
The BrassCraft compression fitting simplifies installations and supports multiple applications including hydraulic and pneumatic systems.
Product Information
Standard Information
-
Brand: BrassCraft
-
MPN: 66-4-8X
Technical Specifications
-
Category: Brass Fittings
-
Finish: Rough Brass
-
Item Weight: 0.06628 lbs
-
Temperature Rating: -65°F to 250°F
-
Working Pressure: 150 PSI
-
Pipe Type Compatibility: Designed for aluminum, copper, and plastic tubing; not suitable for steel tubing
-
Installation Requirements: Little to no tube preparation; plastic and PEX installations require sleeves/inserts
