Product Description

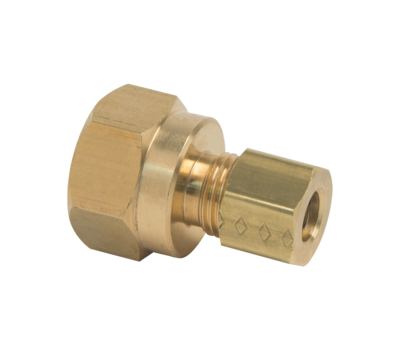

BrassCraft compression reducing adapter, model 66-4-6X, is made from brass. This adapter is used to connect a quarter inch outside diameter tube to a three-eighths inch female iron pipe. It works well in plumbing, instrumentation, hydraulic, and pneumatic systems. This includes applications such as gasoline, grease, oil, potable water, and air lines. It is compatible with copper, aluminum, and plastic tubing. Steel tubing is not recommended.
- Temperature rating: -65 degrees Fahrenheit to 250 degrees Fahrenheit
- One-piece brass construction
- Easy installation with little to no tube preparation required
Product Highlights
BrassCraft compression fittings offer durability and reliability. Suitable for various applications while ensuring a secure fit without the need for flaring or soldering.
Product Information
Standard Information
-
Brand: BrassCraft
-
Model Number: 66-4-6X
Technical Specifications
-
Item Weight: 0.05128 lbs
-
Finish: Rough Brass
-
Tube Size: 1/4 inch O.D. x 3/8 inch FIP
-
Maximum Pressure Rating: 300 PSI
-
Applications: Potable and non-potable water, instrumentation, hydraulic systems
