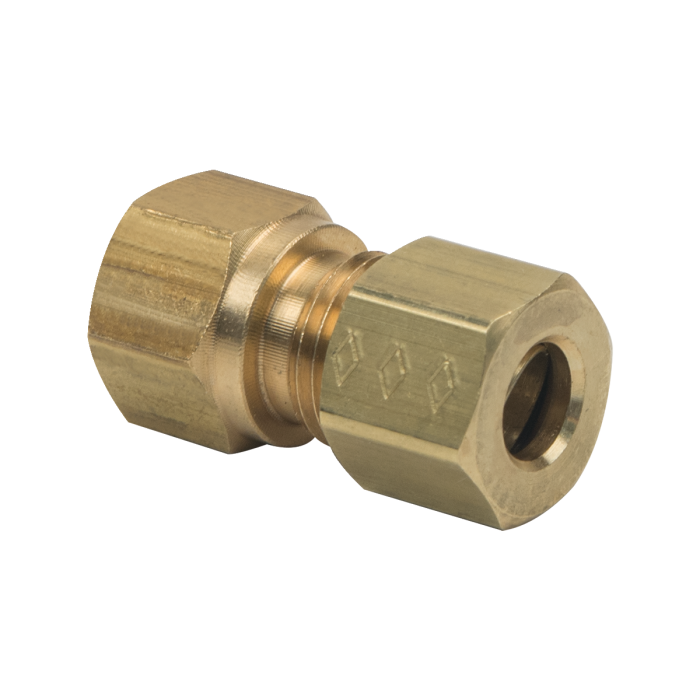

BrassCraft 66-4-2X 1/4 in. O.D. Tube x 1/8 in. FIP Compression Female Reducing Adapter

Product Description

The BrassCraft 66-4-2X is a 1/4 inch O.D. tube to 1/8 inch FIP compression female reducing adapter. This adapter is made from brass, making it suitable for multiple applications.

• Designed for plumbing and pneumatic systems
• Can connect various tube materials including copper and aluminum
• Max pressure rating of 200 psi

Product Highlights

The BrassCraft reducing adapter is versatile and durable, ideal for both residential and commercial installations.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: 66-4-2X

Technical Specifications

• Temperature Rating: -65 degrees to 250 degrees F
• Working Pressure: 200 psi
• Material: Brass
• Dimensions: 0.5000 x 0.5000 x 0.5000 inches
• Weight: 0.03698 lbs
• Designed For: Aluminum and copper tubing; not recommended for steel tubing
• Application: Potable and non-potable water, pneumatic and hydraulic systems
• Preparation Required: Minimal; no flaring or soldering needed
