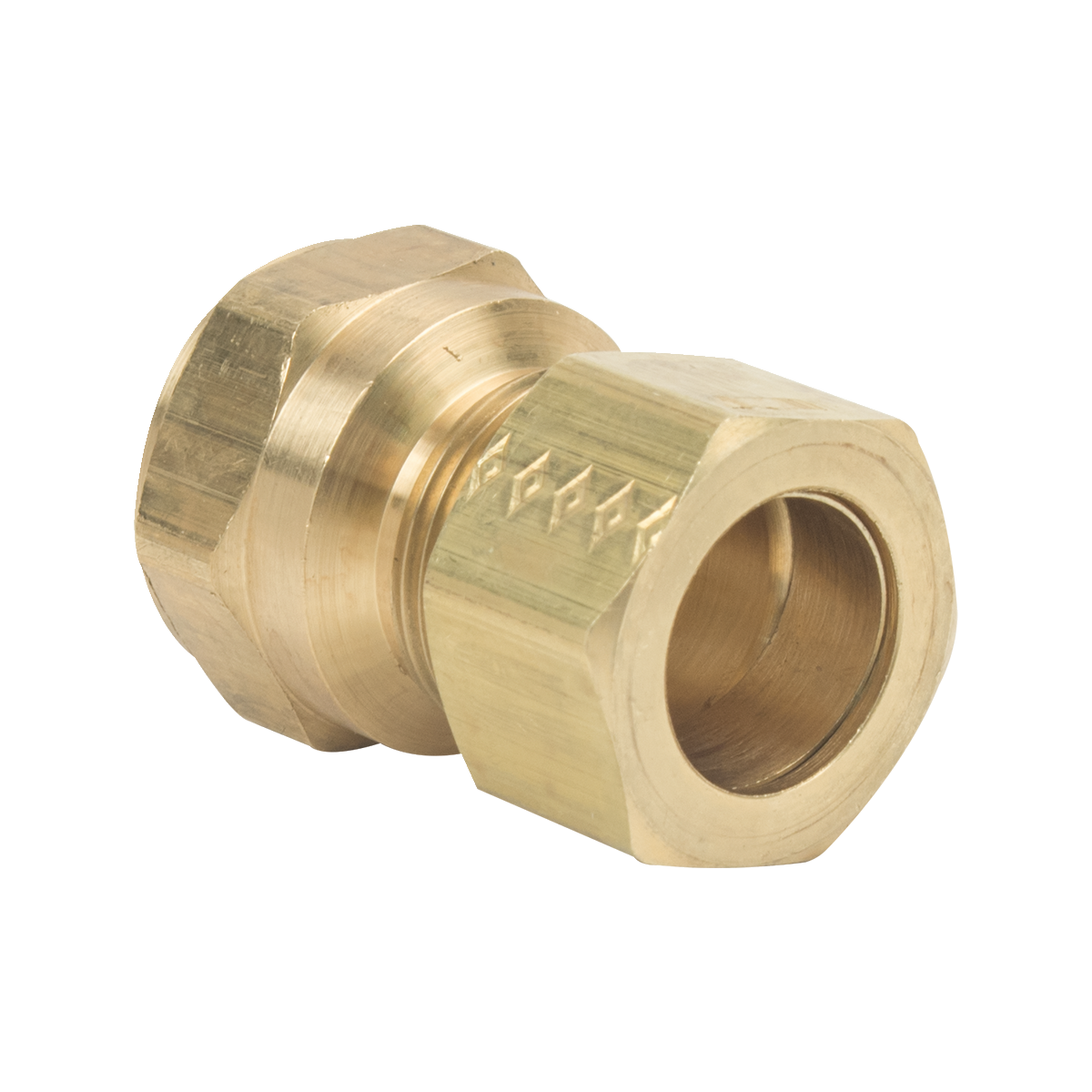

BrassCraft 66-10-12X 5/8 in. O.D. Tube x 3/4 in. FIP Compression Female Reducing Adapter

Product Description

The BrassCraft 66-10-12X is a 5/8 inch O.D. tube to 3/4 inch FIP compression female reducing adapter, designed for various plumbing applications. This part is machined from brass, ensuring durability and reliability. It is suitable for use with copper, aluminum, and plastic tubing but not recommended for steel tubing. It is a crucial component for connecting tubing in hydraulic and pneumatic systems and adapting different sizes in plumbing.

• Designed for use in plumbing and HVAC applications.
• Connects 5/8 inch O.D. tubing with a 3/4 inch FIP end.
• Compatible with various fluid systems, ensuring effective transfers.

Product Highlights

This reducing adapter provides a secure, leak-proof connection with minimal tube preparation required.

Product Information

Standard Information

• Brand: BrassCraft
• Part Number: 66-10-12X

Technical Specifications

• Item Weight: 0.17589 lbs
• Finish: Rough Brass
• Temperature Rating: -65 degrees to 250 degrees F
• Working Pressure: 200 psi
• Category: Brass Fittings
• Usage: Not for use in potable water applications
• Suitable Tubing Types: Aluminum, Copper, Plastic
• Tube Preparation: Minimal preparation needed, no flaring or soldering required
