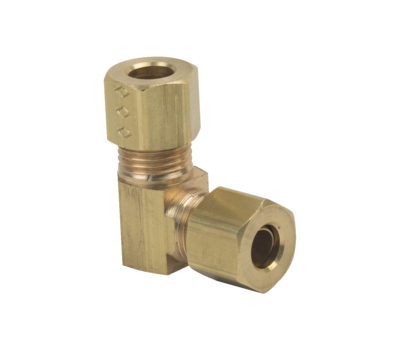

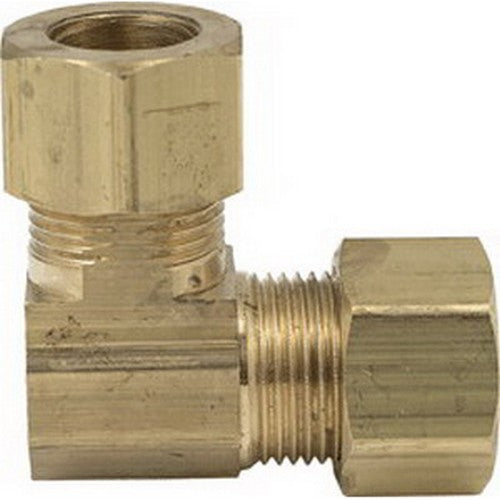

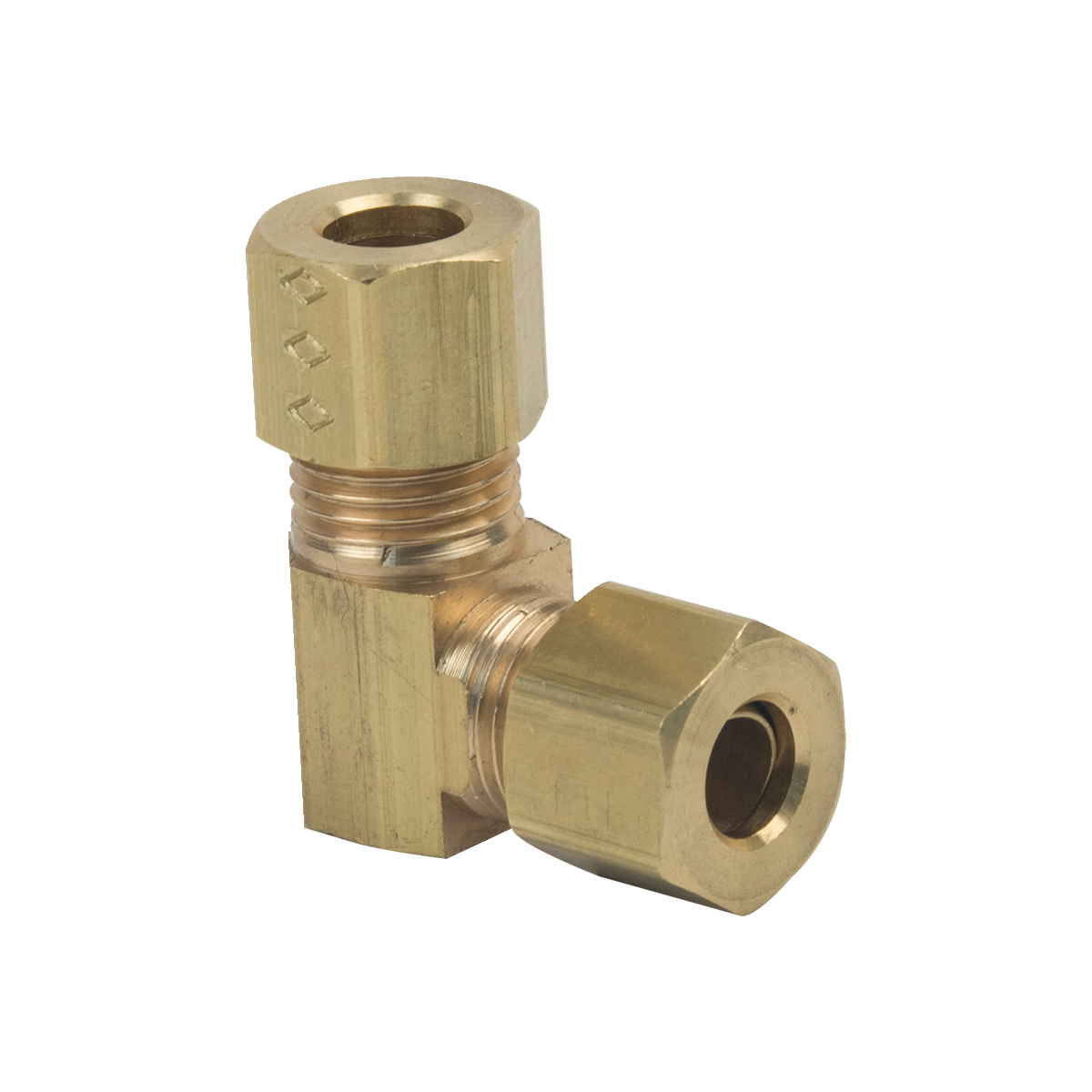

BrassCraft 65-4X Union Elbow Lead-Free Rough Brass 1/4 inch

Product Description

BrassCraft 65-4X Union Elbow is crafted to be lead-free and is rough brass. This fitting is perfect for plumbing applications that require high standards of durability and safety. Designed for both new construction and remodel markets, BrassCraft leads the industry with compliant products.

• Used with aluminum, copper, and plastic tubing
• Lead-Free compliant
• No flaring or soldering needed

Product Highlights

The BrassCraft 65-4X Union Elbow provides a reliable compression connection and can be used in various systems. It is particularly suited for both indoor and outdoor uses, making it ideal for instrumentation, hydraulic, and pneumatic systems.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: 65-4X
• Category: Brass Fittings
• Color: Rough Brass

Technical Specifications

• Material: Brass
• Nominal Size A: 1/4 inch
• Nominal Size B: 1/4 inch
• Connection Type: Compression x Compression
• Item Weight: 0.06656 lbs
• Overall Dimensions: 0.6000 x 0.6000 x 0.5000 inches
• Maximum Pressure Rating: 150 PSI
• Maximum Temperature Rating: 250 degrees Fahrenheit
• Minimum Temperature Rating: -65 degrees Fahrenheit
• Specifications Met: ANSI/NSF 372
