Product Description

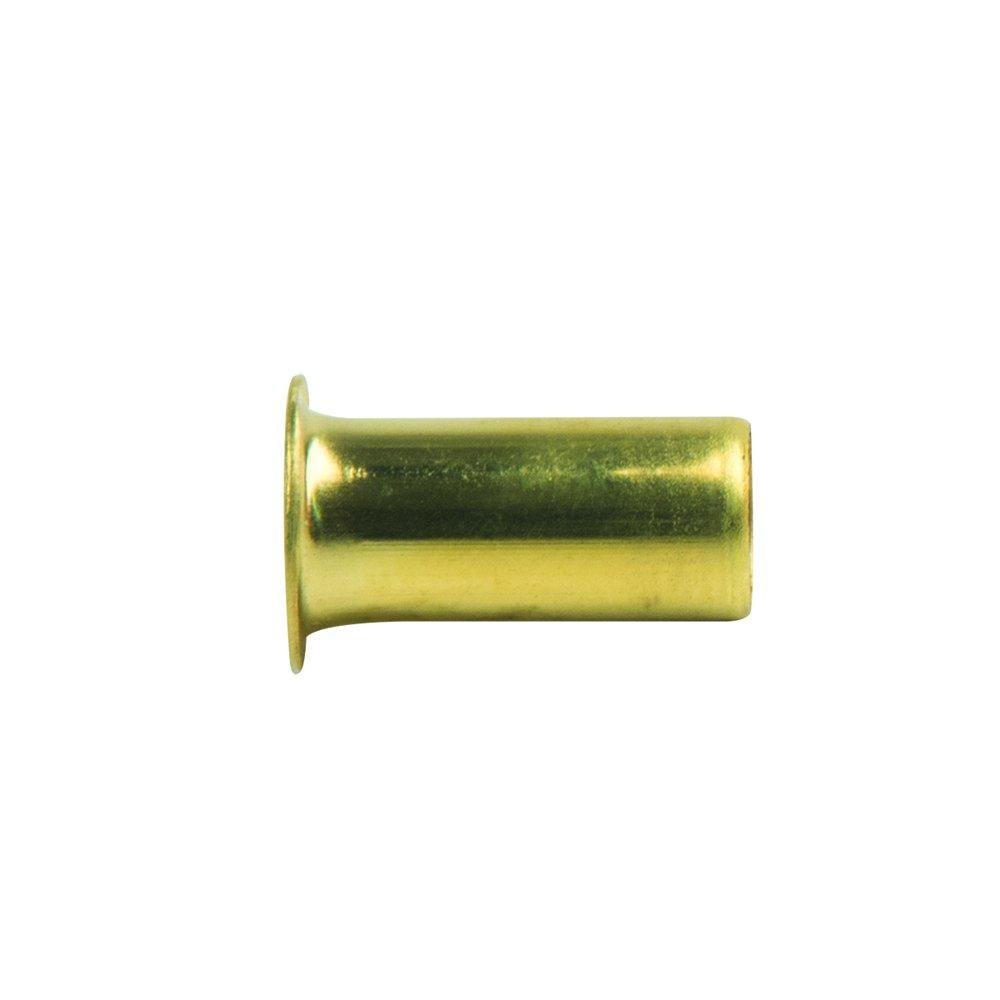

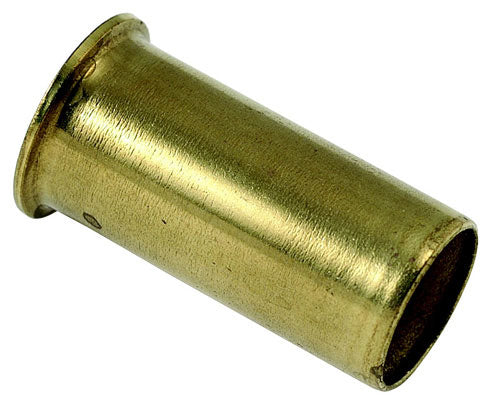

The BrassCraft 63PT-4X is a 1/4 inch O.D. brass insert designed to connect aluminum and copper tubing. This insert is specifically engineered for applications involving nylon and plastic hose. It should not be used with steel tubing. The product is suitable for use in both potable and non-potable water systems and is commonly employed in instrumentation, hydraulic, and pneumatic applications.
- Temperature rating: 40 to 180 degrees Fahrenheit
- Pressure rating: 125 PSI
- Does not require flaring or soldering for installation
Product Highlights
This insert allows for easy connection without the need for complicated tubing preparation.
Product Information
Standard Information
-
Brand: BrassCraft
-
MPN: 63PT-4X
Technical Specifications
-
Application: Residential and Commercial
-
Material: Brass
-
Nominal Size: 1/4 inch
-
Dimensions: 0.17 inches diameter
-
Length: 0.51 inches
-
Pressure Rating: 125 PSI
-
Temperature Rating: 40 to 180 degrees Fahrenheit
-
Fitting/Connector Type: Insert
-
Country of Origin: US
