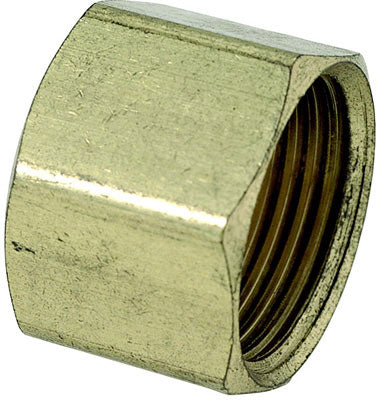

BrassCraft 61CP-10X Compression Cap, 5/8 in. O.D. Tube, Brass

Product Description

BrassCraft 61CP-10X is a compression cap designed for use with 5/8 inch outside diameter tube applications. This fitting is suitable for use with aluminum and copper tubing. It is part of plumbing systems that may involve potable and non-potable water along with instrumentation, hydraulic, and pneumatic systems.

• Not recommended for steel tubing.
• Connection does not require flaring or soldering.
• Compatible with plastic and PEX installations requiring sleeves.

Product Highlights

This compression cap provides a reliable seal without the need for complex tube preparation.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: 61CP-10X

Technical Specifications

• Application: For residential and commercial applications
• End Style: OD Tube
• Finish: Rough
• Fitting/Connector Type: Cap
• Hex Size: 0.72 inches
• Length: 0.34 inches
• Material: Brass
• Nominal Size: 5/8 inches
• Package Length: 0.56 inches
• Package Volume: 0.0003 cubic inches
• Package Weight: 0.05772 pounds
• Pressure Rating: 150 psi
• Series: 61CP
• Temperature Rating: -65 to 250 degrees F
