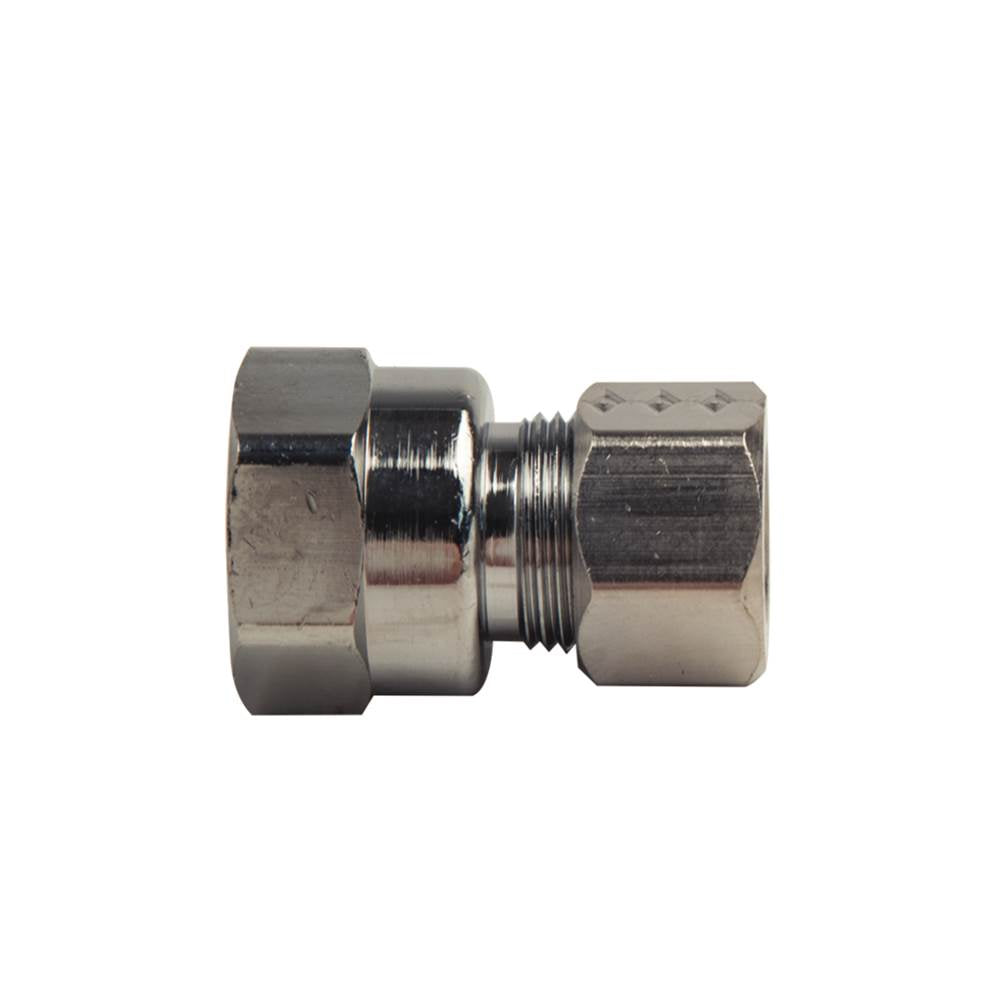

Brasscraft 10X C 3/8 in. OD Tube x FIP Brass Hose Adapter

Product Description

The BRASSCRAFT 10X C is a brass compression adapter machined from brass. These compression fittings are suited for plumbing, instrumentation, hydraulic, and pneumatic systems. It is designed for use with aluminum, copper, and plastic tubing, but not recommended for steel tubing. It connects 3/8 in. OD tube to 3/8 in. FIP connections.

• Designed for use with aluminum, copper and plastic tubing
• One-piece brass body provides strength, durability and longer-lasting performance
• Little to no tube preparation required

Product Highlights

This brass compression adapter is ideal for use in plumbing, instrumentation, hydraulic and pneumatic systems.

Product Information

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: 10X C
• Country of Origin: Domestic

Technical Specifications

• Category: Brass Fittings
• Finish: Chrome Plated
• Brand: BrassCraft
• Material/Finish: Brass/Chrome
• Configurations: 3/8 in. O.D. Tube, Drill Through (No Tube Stop) x 3/8 in. FIP
• Temperature Rating: -65 to 250 deg F
• Working pressure: 200 psi
• Additional Information: Domestic
• Connection Size 2: 3/8 in
• Connection Size: 3/8 in
• Connection Type 1: Tube
• Connection Type 2: FIP
• Connection Type: Tube|FIP
• Fitting Type: Adapter
• Material Construction: Brass
• Material: BRASS
• Pressure Rating: 200 psi
• Tube OD: 3/8 in
• Domestic / Import: Domestic
• End Style: Compression x FNPT
• Fitting / Connector Type: Adapter
• Nominal Size: 3/8 in
• Hex Size: 3/4 in
• Manufacturer: BrassCraft Manufacturing
• Manufacturer #: 10X C
• Series: 10 Series
• Product Type: Brass Fitting
