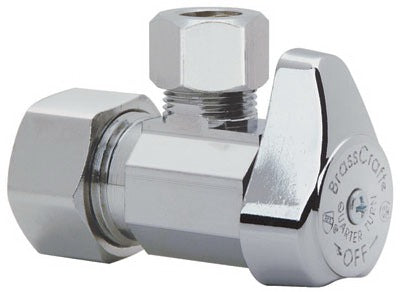

Brass Craft Service Parts G2CR19X C1 Angle Stop Valve

Product Description

The BRASS CRAFT SERVICE PARTS G2CR19X C1 is a chrome-finish, quarter-turn angle stop valve designed for residential and light commercial plumbing supply line shutoff applications. It features a 5/8 inch OD compression inlet (equivalent to 1/2 inch nominal compression) and a 3/8 inch OD compression outlet. The quarter-turn ball-style operation allows fast shutoff without multiple handle rotations. This valve is lead free compliant, meeting federal and state potable water regulations. It is typically installed by licensed plumbers or experienced pipefitters at the wall stub-out behind toilets, under sinks, and at similar fixture supply connections.

This angle valve is suited for residential bathroom and kitchen fixture supply line connections where a compact, corrosion-resistant shutoff is required. The 5/8 inch OD compression inlet fits copper stub-outs commonly found in residential construction, and the 3/8 inch OD compression outlet accepts standard flexible supply lines to faucets and fill valves. It ships in boxed retail packaging with a package quantity of 20 units per package, making it a practical stocking item for plumbing contractors and supply houses.

Key Features

• Quarter-turn operation for fast, positive shutoff
• 5/8 inch OD compression inlet fits standard copper stub-outs (1/2 inch nominal)
• 3/8 inch OD compression outlet for standard fixture supply line connections
• Chrome finish for corrosion resistance and clean appearance at exposed fixture locations
• Lead free compliant construction meets federal Safe Drinking Water Act requirements
• Sold in a boxed package of 20 units, suitable for contractor stocking

Compatibility

Designed as an OEM-style replacement or new-installation angle stop for residential plumbing supply shutoff applications using 5/8 inch OD compression inlet and 3/8 inch OD compression outlet connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the main water supply and relieve line pressure before removing any existing valve or fitting. Compression fittings require no solder or pipe dope on the compression ring seating surface — do not overtighten, as over-compression can crack the ferrule or damage soft copper tubing. Inspect the copper stub-out for burrs or ovality before seating the compression nut.
