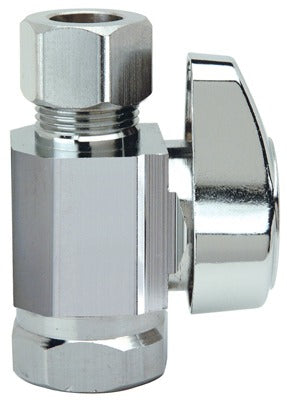

Brass Craft G2R10X Cd Chrome Straight Stop Valve 3/8 Fip

Product Description

The BRASS CRAFT SERVICE PARTS G2R10X CD is a chrome-plated straight stop valve designed for residential and light commercial plumbing supply line connections. It features a 3/8 inch Female Iron Pipe (FIP) inlet and a 3/8 inch OD compression outlet, making it a standard choice for connecting supply lines to faucets, toilets, and similar fixtures. The quarter-turn ball-style operation provides fast shutoff with minimal handle travel. This valve meets lead-free compliance requirements, making it suitable for potable water applications where lead-free standards are enforced. Licensed plumbers and skilled trades professionals install this valve as a supply stop in finished plumbing assemblies.

This straight stop valve is used in residential and light commercial plumbing installations where an inline shutoff is needed between the supply stub-out and the fixture supply line. The FIP inlet threads onto a male-threaded supply pipe or fitting, while the compression outlet accepts standard 3/8 inch OD tubing or braided supply lines. Typical applications include kitchen and bathroom sink supply connections and toilet tank supply lines. This item is sold and packaged individually on a retail card and is available in package quantities of five units.

Key Features

• Quarter-turn operation for fast, reliable shutoff
• 3/8 inch FIP inlet threads onto standard male-threaded pipe or fitting
• 3/8 inch OD compression outlet accepts standard supply tubing
• Chrome finish for corrosion resistance and finished appearance
• Lead-free compliant for use in potable water systems
• Straight valve configuration for inline supply line installations

Compatibility

Designed as an OEM-style replacement or new-installation straight stop valve for residential and light commercial plumbing supply line applications using 3/8 inch FIP x 3/8 inch OD compression connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the main water supply and relieve line pressure before removing any existing valve or making new connections. Hand-tighten the FIP connection first, then use an appropriately sized wrench to snug the fitting without over-torquing the valve body. Inspect the compression fitting seat and ferrule for proper seating before restoring water pressure and checking for leaks.
