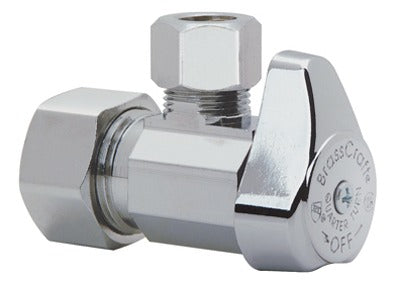

Brass Craft G2CR09X Cd Chrome Angle Valve 5/8x1/4 Lead Free

Product Description

The BRASS CRAFT SERVICE PARTS G2CR09X CD is a chrome-plated quarter-turn angle valve designed for use in residential and light commercial plumbing supply lines. It connects a 5/8 inch OD compression inlet (1/2 inch nominal compression) to a 1/4 inch OD compression outlet, making it a common solution for appliance and fixture shutoff applications. The quarter-turn ball-style operation provides quick, reliable flow control. This valve is lead free compliant, meeting current federal and state safe drinking water standards. Licensed plumbers and skilled tradespeople typically install this fitting during fixture hookups, appliance installations, and supply line service work.

This angle valve is suited for residential potable water supply applications where a compact shutoff is needed between a supply stub-out and a downstream fixture or appliance. The compression fittings on both ends allow for tool-accessible, solder-free connections, which is useful in retrofit and repair scenarios where open flame is not practical. The carded retail packaging makes it appropriate for both professional supply counters and point-of-sale distribution.

Key Features

• 5/8 inch OD compression inlet with 1/2 inch nominal compression sizing
• 1/4 inch OD compression outlet for small-diameter supply line connections
• Quarter-turn operation for fast, positive shutoff
• Chrome finish for corrosion resistance and clean appearance
• Lead free compliant for use in potable water systems
• Carded packaging — sold in packages of 5

Compatibility

Designed as an OEM-style replacement or service fitting for residential potable water supply shutoff applications using standard compression-fitting plumbing connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the main water supply and relieve line pressure before removing any existing valve or fitting. Compression fittings require proper ferrule seating and consistent torque on the compression nut — do not overtighten, as this can damage the ferrule and cause leaks. Verify all connections are leak-free under pressure before returning the system to service.
