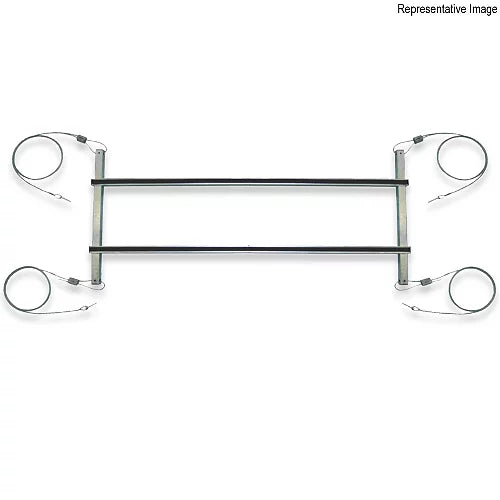

Bramec 33233A Equipment Hanger 33x30 in 5 Ton 500 Lb

Product Description

The BRAMEC 33233A is a heavy-duty equipment hanger designed to support rooftop and suspended HVAC units weighing up to 500 pounds. Built for commercial and residential applications, this hanger ships fully assembled and ready for installation, reducing setup time on the job. The platform measures 33 inches by 30 inches and handles equipment up to 5 tons of cooling capacity. Padded platform struts reduce vibration and operating noise, making it suitable for noise-sensitive installations. HVAC technicians and mechanical contractors are the primary installers for this type of support hardware.

This equipment hanger is suited for rooftop condensing units, package units, and similar suspended HVAC equipment in both residential and light commercial settings. The unit is collapsible, which simplifies storage and transport between job sites. Separate holes are drilled into the frame specifically for commercial installations using threaded rod, giving installers flexibility in how they secure the hanger to the structure. Cable locks allow for leveling of equipment at angles up to 45 degrees, accommodating uneven mounting surfaces.

Key Features

• Fully assembled and ready for installation out of the box
• Collapsible design for easy storage and transport
• Supports equipment up to 500 pounds and 5 tons capacity
• Padded platform struts reduce vibration and noise transmission
• Cable locks allow leveling up to 45 degrees
• Separate holes drilled for commercial threaded rod installations
• Hanging bolt length of 3.5 inches with 10 cable length

Compatibility

Designed for use with rooftop and suspended HVAC condensing units and package equipment up to 5 tons and 500 pounds maximum unit weight in both residential and commercial installations.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified mechanical contractor. Disconnect power to all associated equipment before mounting or adjusting the hanger. Verify that the mounting structure can support the combined weight of the hanger and the installed equipment before securing. Follow local building codes and the equipment manufacturer guidelines for proper support and anchoring requirements.

Technical Specifications

• Platform Width: 33 inches
• Platform Depth: 30 inches
• Maximum Equipment Capacity: 5 tons
• Maximum Unit Weight: 500 pounds
• Hanging Bolt Length: 3.5 inches
• Maximum Leveling Angle: 45 degrees
• Assembly: Fully assembled

Standard Information

• Brand: BRAMEC
• Manufacturer Part Number: 33233A
