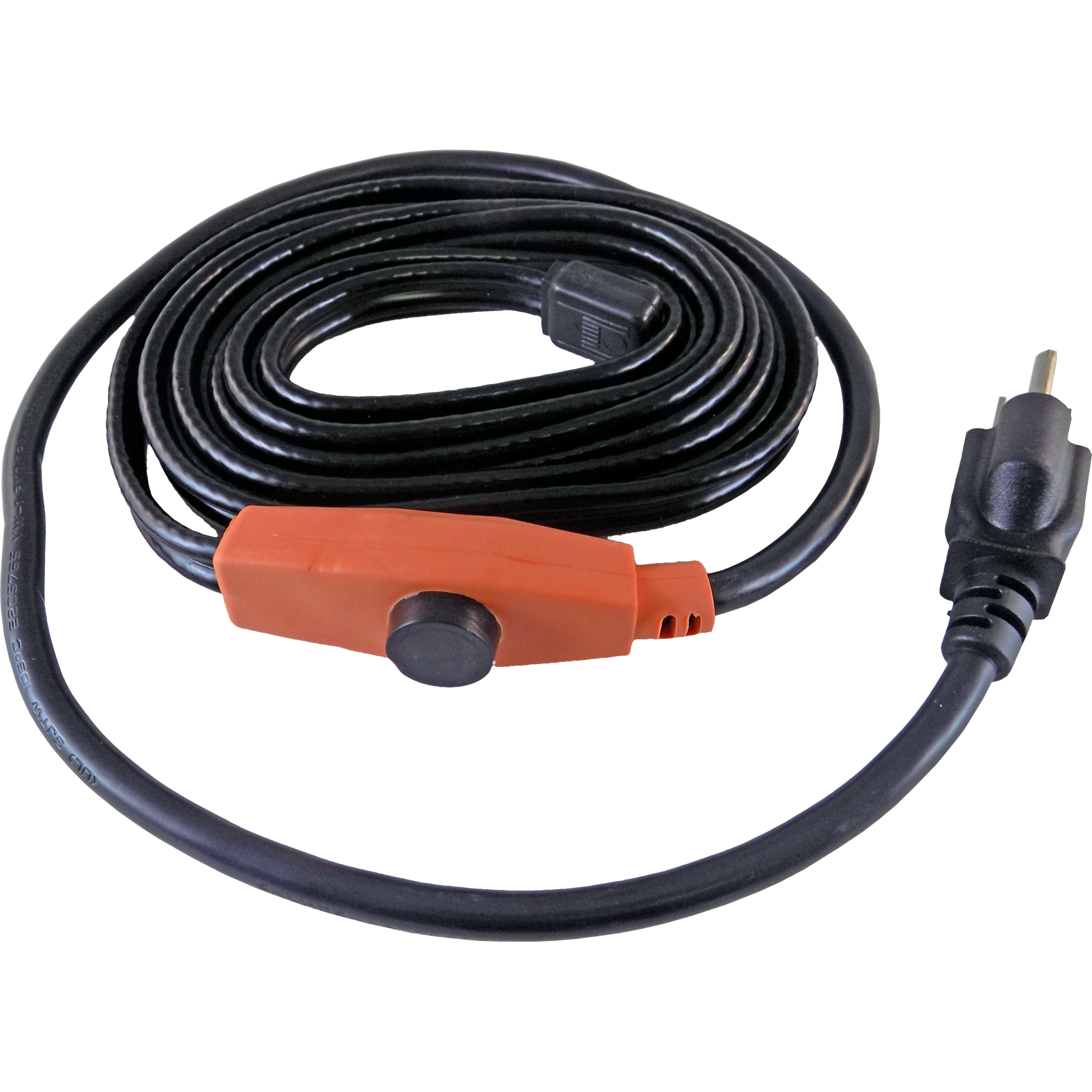

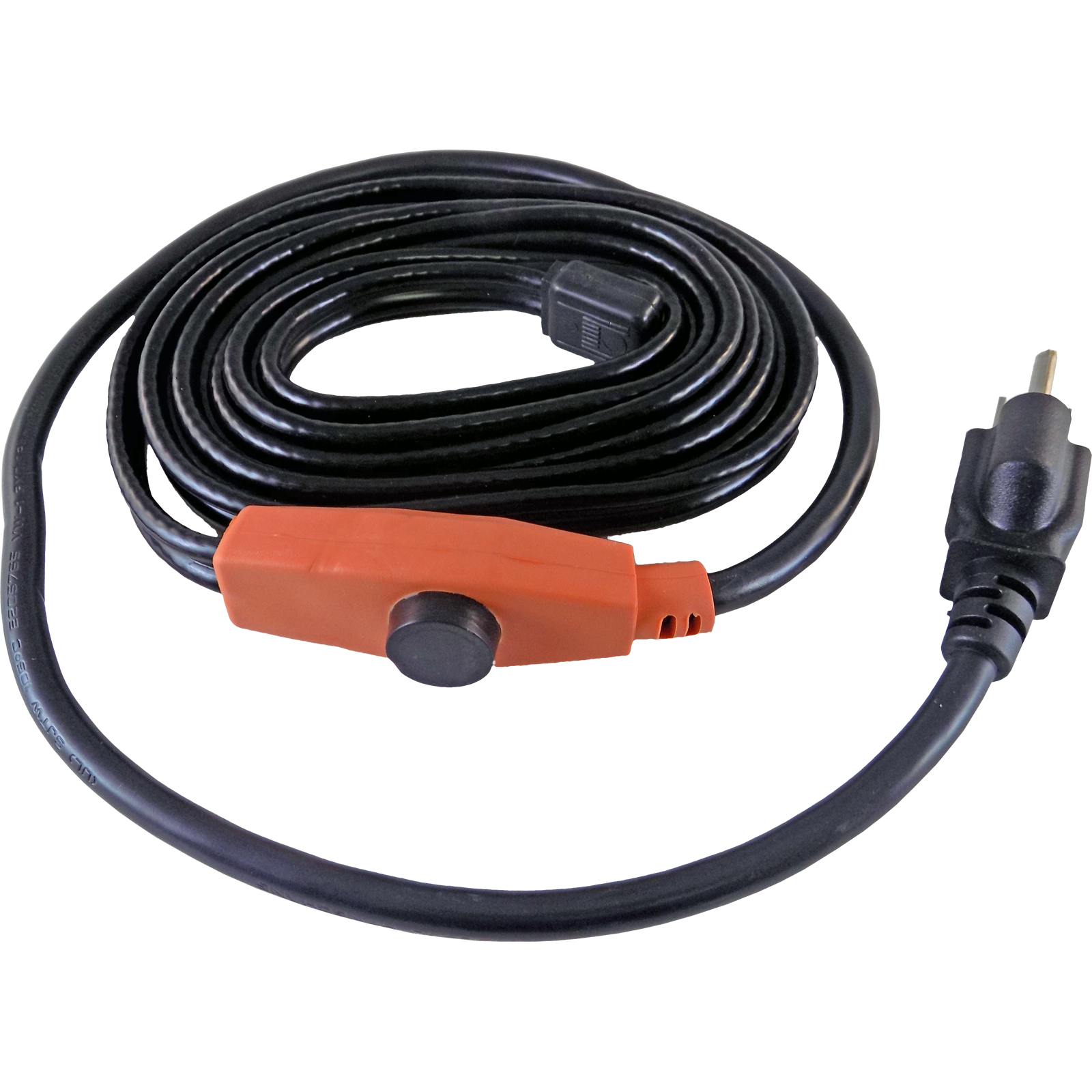

Bramec 20926 Self-regulating Pipe Heating Cable 168W 24 Ft

Product Description

The BRAMEC 20926 is a pre-assembled, self-regulating pipe heating cable designed to protect water supply lines and drain pipes from freezing. Rated at 168 watts and 24 feet in length, this heat cable plugs directly into a standard 120 VAC outlet, requiring no additional controls or wiring expertise. A preset thermostat is built into the assembly, so the cable automatically adjusts heat output based on ambient pipe temperature. The outer jacket is rated for both wet and dry environments. Licensed plumbers and HVAC service technicians are the primary installers for residential and light commercial freeze-protection applications.

This heating cable is suited for residential and light commercial pipe freeze protection in crawl spaces, attics, garages, and exterior wall chases where pipes are exposed to freezing temperatures. It is compatible with both plastic and metal pipe materials, making it a versatile option across a wide range of plumbing system types. The 24-foot length and plug-in design make it well-suited for straightforward single-run applications on supply or drain lines where a dedicated circuit is available.

Key Features

• Self-regulating output automatically adjusts wattage based on pipe temperature, preventing overheating
• Pre-assembled with a built-in preset thermostat — no external control required
• Plugs into a standard 120 VAC outlet for simplified installation
• Jacketed construction rated for wet and dry environments
• Compatible with plastic and metal pipe surfaces
• Do not overlap cable — self-regulating cables can sustain damage if crossed or layered

Compatibility

Designed as an OEM-style freeze-protection solution for plastic and metal water supply and drain pipes in residential and light commercial plumbing systems.

Installation Notes

Installation is typically performed by a licensed plumber or HVAC technician. Shut off power at the outlet circuit before routing and securing the cable along the pipe run. Do not overlap or cross the cable at any point, as contact between cable sections can cause damage or create a fire hazard. Refer to NEC guidelines for outdoor or wet-location receptacle requirements when selecting the outlet used to power this cable.

Technical Specifications

• Wattage: 168 watts
• Cable Length: 24 feet
• Input Voltage: 120 VAC
• Thermostat Type: Preset, built-in
• Regulation Type: Self-regulating
• Jacket Rating: Wet and dry applications
• Compatible Pipe Materials: Plastic and metal

Standard Information

• Brand: BRAMEC
• Manufacturer Part Number: 20926
