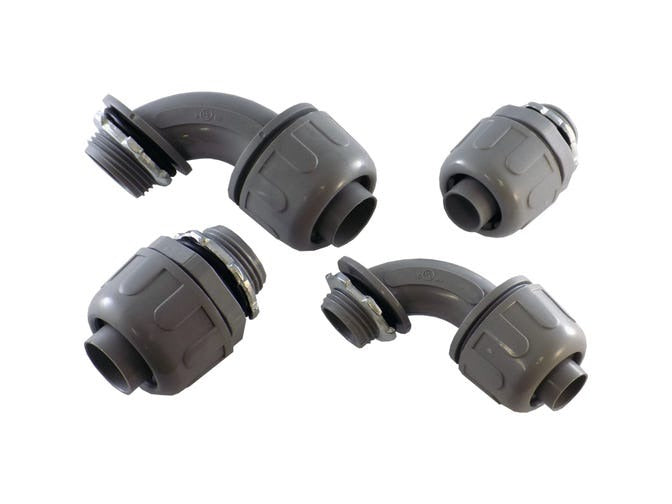

Bramec 19003 Liquid Tight 90 Degree Connector 3/4 Inch

Product Description

The BRAMEC 19003 is a 90-degree, non-metallic liquid-tight conduit connector designed for terminating and securing flexible non-metallic liquid-tight conduit in electrical installations. Constructed from durable nylon plastic, this fitting delivers mechanical protection and strain relief while maintaining a liquid-tight seal in wet, oily, or corrosive environments. At 3/4 inch trade size and a 90-degree angle, it routes conduit cleanly around obstructions in tight spaces. Electricians and electrical contractors install this fitting where flexible conduit meets junction boxes, equipment enclosures, or control panels exposed to moisture or chemical exposure.

This connector is suited for commercial, industrial, and outdoor electrical applications where resistance to water, oil, and environmental exposure is required. Typical use cases include equipment connections in mechanical rooms, exterior panel terminations, and industrial machinery wiring where a non-metallic fitting is preferred to avoid corrosion or to meet specific bonding requirements. The 90-degree rotation simplifies conduit routing in confined spaces without adding excessive bend radius to the flexible conduit run.

Key Features

• 90-degree angle for routing flexible conduit around corners and obstructions
• Non-metallic nylon construction resists corrosion, oil, and moisture
• 3/4 inch trade size fits standard flexible non-metallic liquid-tight conduit
• Provides mechanical strain relief at conduit termination points
• Suitable for wet, damp, and corrosive location installations

Compatibility

Designed as an OEM-style replacement and standard fitting for 3/4 inch flexible non-metallic liquid-tight conduit systems in residential, commercial, and industrial electrical installations.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable NEC requirements for liquid-tight flexible non-metallic conduit fittings. De-energize all circuits before beginning conduit termination work. Ensure the conduit is fully seated and the fitting nut is hand-tightened securely to maintain the liquid-tight seal. Do not overtighten with tools in a way that cracks or deforms the nylon body.
