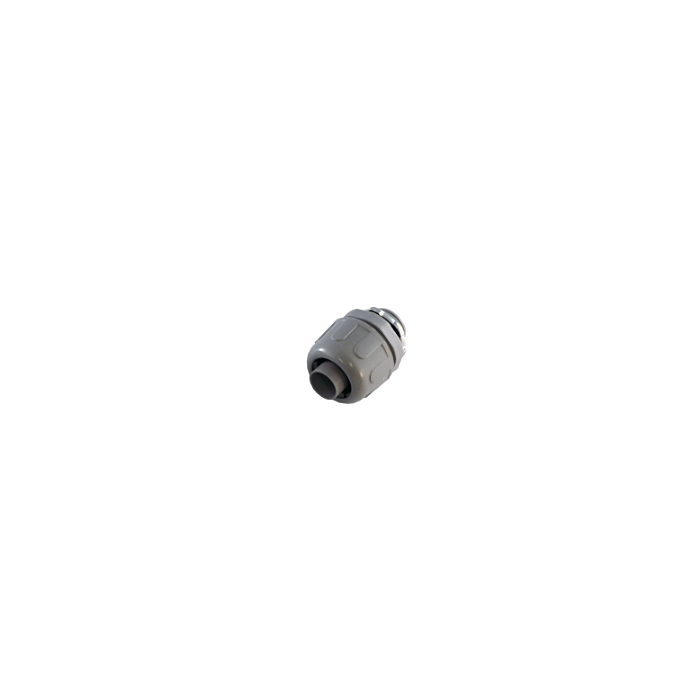

Bramec 19001 Liquid Tight Straight Connector 0.75 in

Product Description

The BRAMEC 19001 is a 3/4-inch straight, multi-piece liquid tight fitting designed to provide a secure, moisture-resistant connection in conduit installations. This non-metallic connector seals the point where liquid tight flexible conduit meets an enclosure or junction box, preventing water, dust, and contaminants from entering the raceway system. It is a standard component in commercial and residential electrical work wherever flexible conduit runs require a watertight termination. Licensed electricians install this fitting during new construction, retrofit, and service work on equipment panels, HVAC units, and similar applications.

This connector is suited for use with 3/4-inch liquid tight flexible non-metallic conduit in indoor and outdoor installations. It is commonly found in HVAC equipment connections, compressor wiring, pump motor circuits, and other applications where conduit must flex or where vibration is present. The multi-piece design simplifies installation in tight spaces by allowing the fitting to be assembled around the conduit rather than threaded onto it from the end.

Key Features

• 3/4-inch straight configuration for direct conduit-to-enclosure termination
• Non-metallic construction resists corrosion in wet and damp locations
• Multi-piece design eases installation in confined or already-routed runs
• Liquid tight seal helps keep moisture, dust, and debris out of the conduit system
• Sold in a box quantity of 10 units

Compatibility

Designed as an OEM-style replacement or standard-fit connector for 3/4-inch liquid tight flexible non-metallic conduit systems in commercial and residential electrical installations.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable National Electrical Code (NEC) requirements for liquid tight fittings and flexible conduit. De-energize and lock out the circuit before making any conduit or wiring connections. Ensure the conduit is seated fully into the fitting body before tightening the compression nut to achieve a proper liquid tight seal. Do not overtighten the connector body, as non-metallic fittings can crack under excessive force.

Technical Specifications

• Size: 0.75 inches
• Type: Liquid Tight Straight Connector
• Material: Non-Metallic
• Configuration: Multi-Piece
• Box Quantity: 10

Standard Information

• Brand: BRAMEC
• Manufacturer Part Number: 19001
