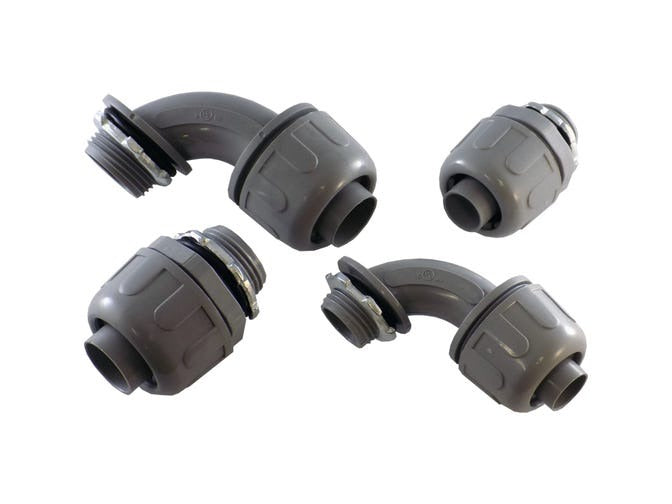

Bramec 19000 Non-metallic Liquidtight Straight Connector

Product Description

The BRAMEC 19000 is a 1/2 inch non-metallic straight connector designed for use with both metallic and non-metallic liquidtight Type B conduit. Built from plastic, this fitting features a smooth interior bore that eliminates sharp edges, reducing the risk of wire insulation damage during pull-through. At 1.75 inches tall and 1.25 inches wide, it is a compact, lightweight fitting suited for residential and light commercial wiring runs where liquidtight conduit terminations are required. Licensed electricians and HVAC technicians rely on this type of connector to terminate flexible conduit at enclosures, junction boxes, and equipment panels.

This connector is appropriate for use in HVAC equipment wiring, control panel connections, and general electrical installations where liquidtight conduit systems are specified. It is compatible with both metallic and non-metallic liquidtight Type B conduit in 1/2 inch trade size. The straight configuration suits direct, in-line terminations where no change in conduit direction is needed. It is commonly installed at condensing units, air handlers, and similar mechanical equipment requiring protected wiring pathways.

Key Features

• Fits both metallic and non-metallic liquidtight Type B conduit
• Smooth interior bore eliminates sharp edges that could damage wire insulation during pull-through
• Straight connector configuration for direct in-line conduit terminations
• Plastic construction resists corrosion in damp or wet-adjacent environments
• Compact footprint: 1.75 inches height, 1.25 inches width
• Lightweight at 0.06 pounds for easy single-hand handling during installation

Compatibility

Designed for use with 1/2 inch trade size metallic and non-metallic liquidtight Type B flexible conduit systems. Suitable as an OEM-style replacement or new-installation fitting in residential and light commercial electrical and HVAC conduit applications.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits and lock out the associated disconnect before beginning conduit termination work. Ensure the conduit is fully seated and the connector locknut is secured against the enclosure wall before pulling wire. Do not overtighten plastic fittings, as excess torque can crack the body and compromise the liquidtight seal.
