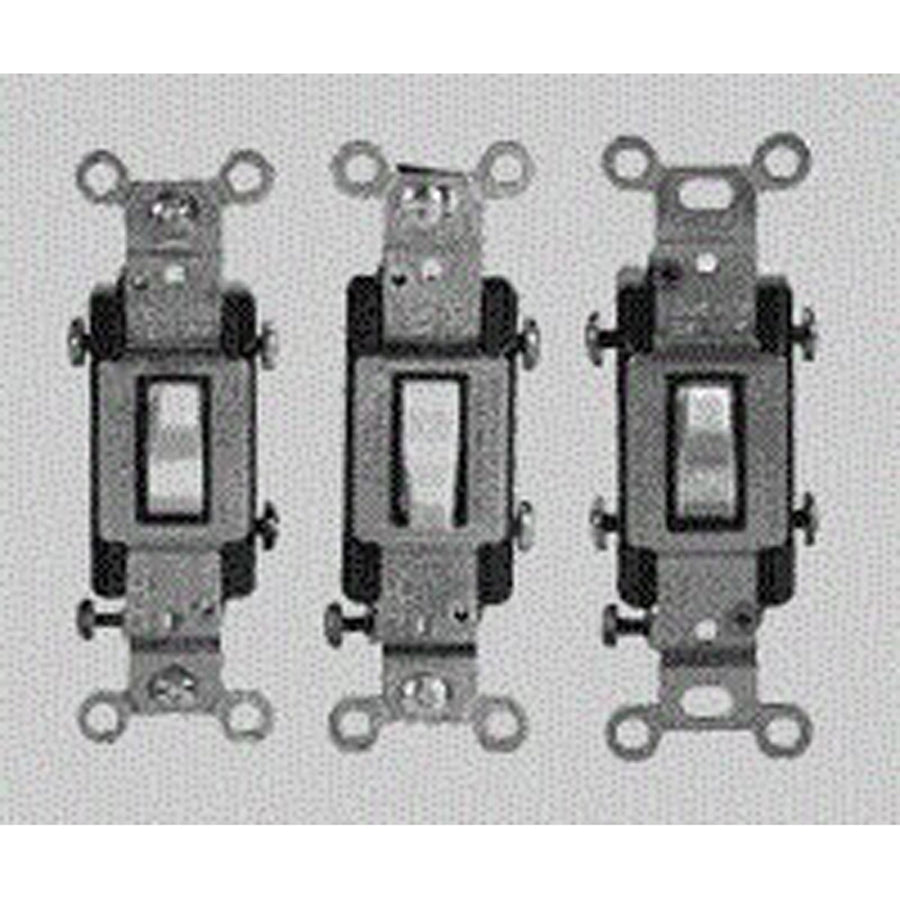

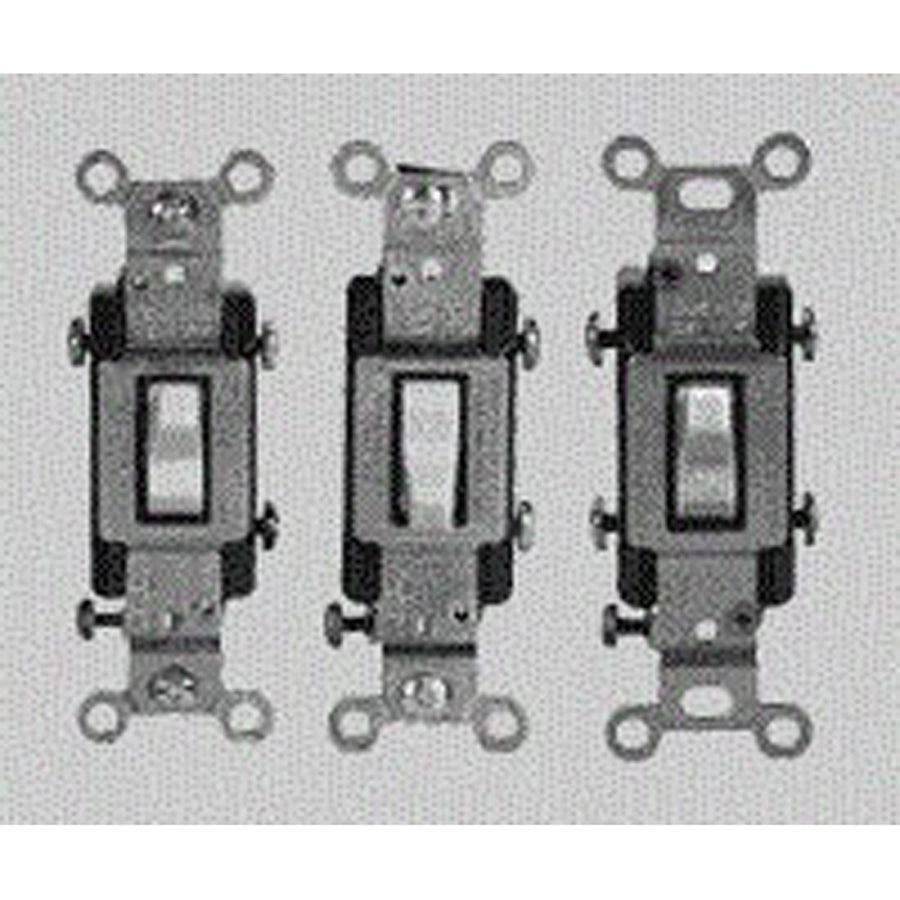

Bramec 16309 Toggle Switch Double Pole 20A 120/277V Brown

Product Description

The BRAMEC 16309 is a specification-grade double-pole toggle switch rated for 20 amps and 120/277 volts, designed for commercial and industrial electrical installations. The double-pole configuration allows simultaneous switching of two independent circuits with a single actuator, making it suitable for higher-voltage and multi-wire branch circuit applications. Side wiring terminals accept standard branch circuit conductors for a secure, code-compliant connection. The brown finish blends with matching wallplate assemblies in commercial environments. Licensed electricians install this switch in panel rooms, commercial offices, and industrial facilities where specification-grade components are required.

This toggle switch is applicable in commercial and light industrial settings where 120-volt or 277-volt single-phase branch circuits are used. The 277-volt rating makes it a common fit for fluorescent and LED lighting circuits fed directly from a 480Y/277-volt distribution system, which is standard in commercial buildings. The 20-amp, 1 HP rating also accommodates small motor loads. Side wiring is the standard termination method for specification-grade switches installed by electricians following NEC branch circuit requirements.

Key Features

• Double-pole configuration switches two circuit conductors simultaneously
• Rated 20 amps and 120/277 volts for commercial branch circuit use
• 1 HP motor rating supports small motor load applications
• Side wiring terminals for standard conductor termination
• Specification-grade construction for commercial and industrial environments
• Brown color finish for coordinated wallplate installations

Compatibility

Designed as a specification-grade double-pole toggle switch for commercial and industrial branch circuits rated at 120 or 277 volts.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit at the breaker and verify absence of voltage with a meter before beginning any wiring work. Use side wiring terminals with conductors rated for the circuit voltage and amperage. Follow local AHJ requirements for device fill, box fill, and cover plate specifications.

Technical Specifications

• Voltage Rating: 120/277 volts
• Current Rating: 20 amps
• Power Rating: 1 HP
• Operation Type: Double Pole
• Switch Type: Toggle
• Wiring: Side
• Color: Brown

Standard Information

• Brand: BRAMEC
• Manufacturer Part Number: 16309
