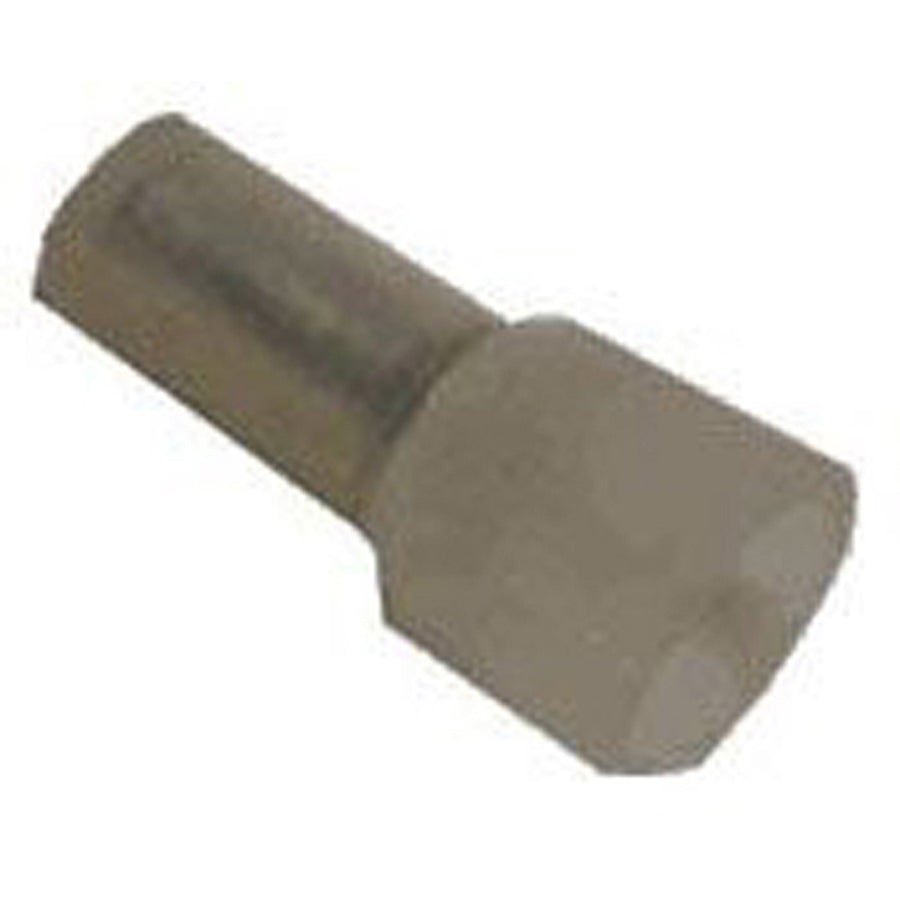

Bramec 13653 Closed End Connector 18-10 Awg 100 Pack

Product Description

The BRAMEC 13653 is a nylon-insulated closed end connector terminal designed for splicing and terminating pigtail wire connections in electrical and low-voltage wiring applications. Each connector accepts wire gauges from 16 to 10 AWG and features a fully insulated nylon body that protects the connection from moisture, vibration, and incidental contact. These connectors are installed by electricians, HVAC technicians, and pool and plumbing service professionals wherever a clean, insulated pigtail splice is required. Each pack contains 100 connectors, making it a practical stock item for service vans and shop inventory.

Closed end connectors of this type are commonly used in residential and light commercial electrical work, HVAC control wiring, and equipment replacement scenarios where wire leads must be extended or spliced without the use of wire nuts or open barrel terminals. The 16 to 10 AWG range covers a broad span of typical service wiring, from low-voltage control circuits up through standard line-voltage branch wiring. They are well suited for tight enclosures where a low-profile terminated end is preferred over a twist-on connector.

Key Features

• Accepts wire gauges from 16 to 10 AWG for versatile application coverage
• Nylon insulation body provides electrical isolation and mechanical protection
• Closed end design prevents wire strand exposure at the terminal tip
• 100 connectors per pack for efficient stocking on service vehicles or in shop supply
• Insulated construction suitable for use in moisture-prone and vibration-prone environments

Compatibility

Designed as a standard closed end pigtail connector compatible with copper conductors in the 16 to 10 AWG range, suitable for use in electrical, HVAC, and similar trade wiring applications.

Installation Notes

Installation should be performed by a qualified electrician or licensed trade professional in accordance with applicable NEC requirements. Always de-energize the circuit and verify voltage absence with a meter before making any wire connections. Strip conductors to the appropriate length, insert into the connector, and crimp using a ratcheting or plier-style crimping tool rated for insulated terminals. Do not use these connectors on aluminum conductors without verifying compatibility with applicable code and listing requirements.

Technical Specifications

• Wire Size: 16 to 10 AWG
• Insulation Material: Nylon
• Type: Insulated Closed End Connector
• Standard Package: 100 per pack

Standard Information

• Brand: BRAMEC
• Manufacturer Part Number: 13653
