Bramec 13585 Ring Terminal 16-14 Awg 10 Stud 100 Pack

Product Description

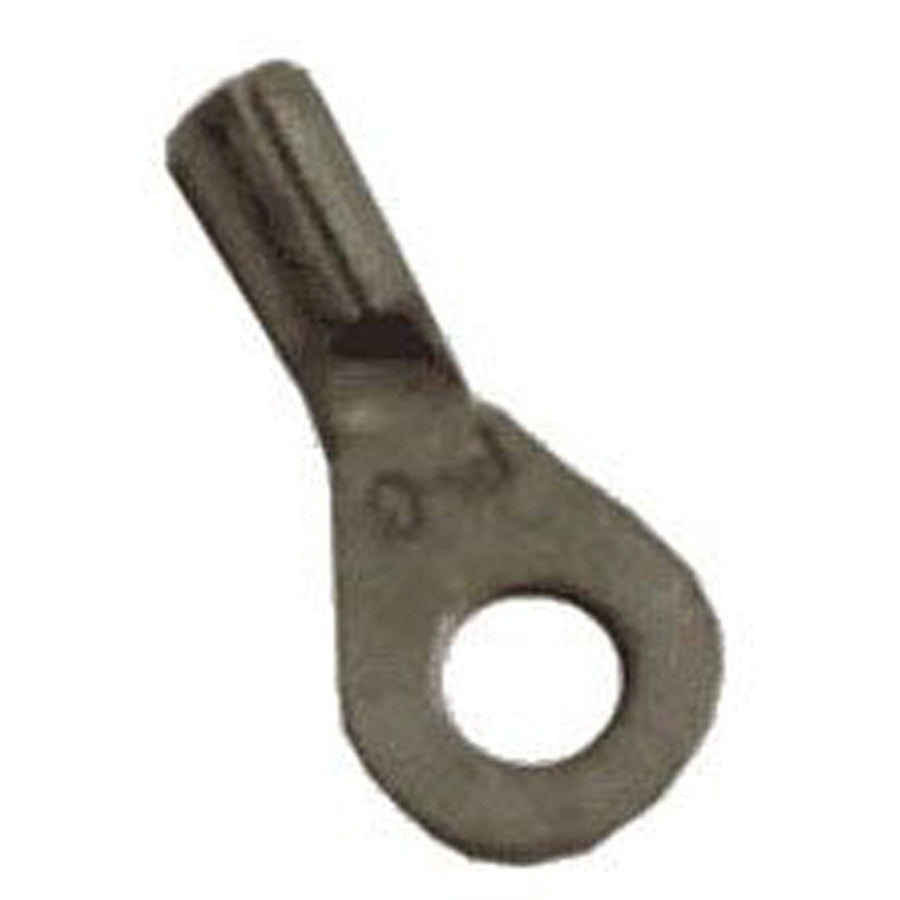

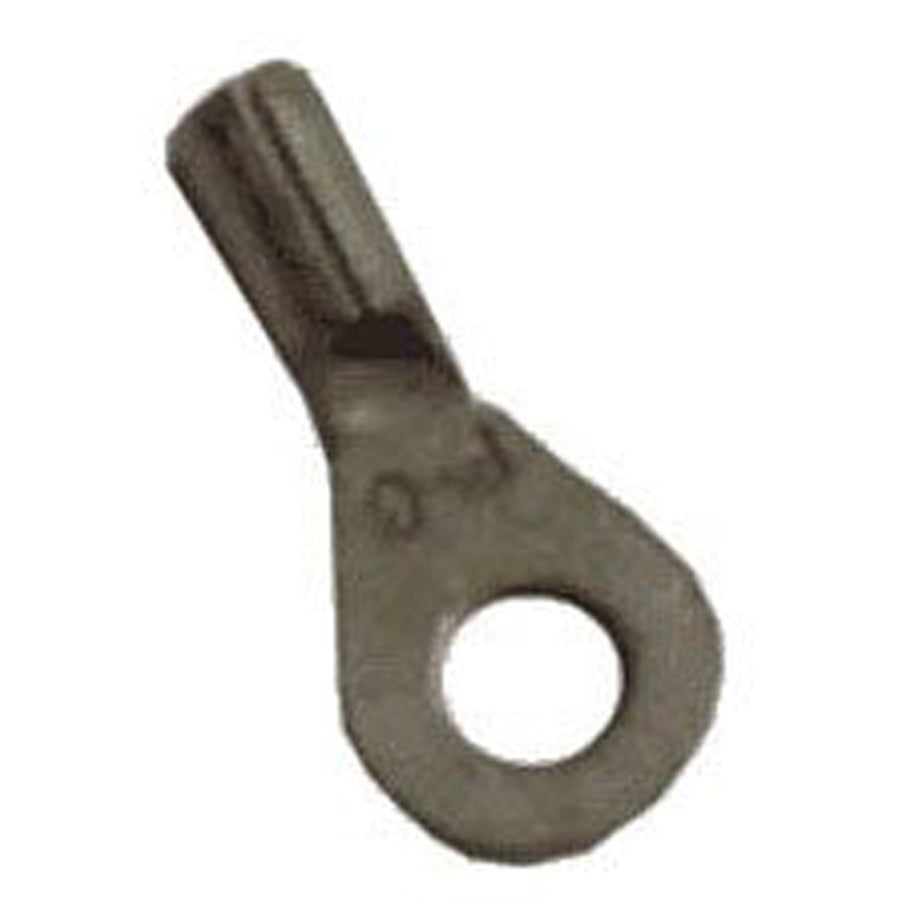

The BRAMEC 13585 is a non-insulated ring terminal designed for securing electrical conductors to stud connections in HVAC, refrigeration, and general electrical service applications. Rated for wire gauges from 16 AWG to 14 AWG and a stud size of 10, this terminal provides a reliable, low-resistance mechanical connection at the termination point. With a temperature rating of 900 degrees F, the 13585 is suited for high-heat environments common in furnace wiring, control panel work, and motor terminations. Each pack contains 100 terminals, making it a practical shop supply for service technicians and installers who go through terminals regularly.

This ring terminal is used across residential and light commercial electrical and HVAC work wherever a secure, bolt-down wire connection is required. Typical applications include control board wiring, ground terminations, blower motor connections, and field wiring inside electrical enclosures. The non-insulated construction allows for a clean, low-profile fit in tight terminal blocks and is compatible with standard crimping tools used by electricians and HVAC technicians.

Key Features

• Accepts conductors from 16 AWG to 14 AWG
• Fits size 10 stud connections
• Temperature rated to 900 degrees F for high-heat service environments
• Non-insulated design for low-profile termination in tight enclosures
• Sold in packs of 100 for shop stock and regular service use

Compatibility

Designed as a standard-style non-insulated ring terminal for use with 16 to 14 AWG conductors and size 10 stud hardware across HVAC, electrical, and refrigeration control wiring applications.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician following applicable NEC guidelines. Always de-energize the circuit and verify absence of voltage before terminating or replacing ring terminals. Use a calibrated ratcheting crimping tool sized for the conductor gauge to ensure a secure, gas-tight crimp. Avoid over-crimping, which can damage conductor strands and reduce connection integrity.

Technical Specifications

• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Stud Size: 10
• Temperature Rating: 900 degrees F
• Insulation Type: Non-Insulated
• Standard Package Quantity: 100 per pack

Standard Information

• Brand: BRAMEC
• Manufacturer Part Number: 13585
