Bramec 13431 4 inches Square Steel Utility Box 1-1/2 inches Deep 17 Knockouts

Product Description

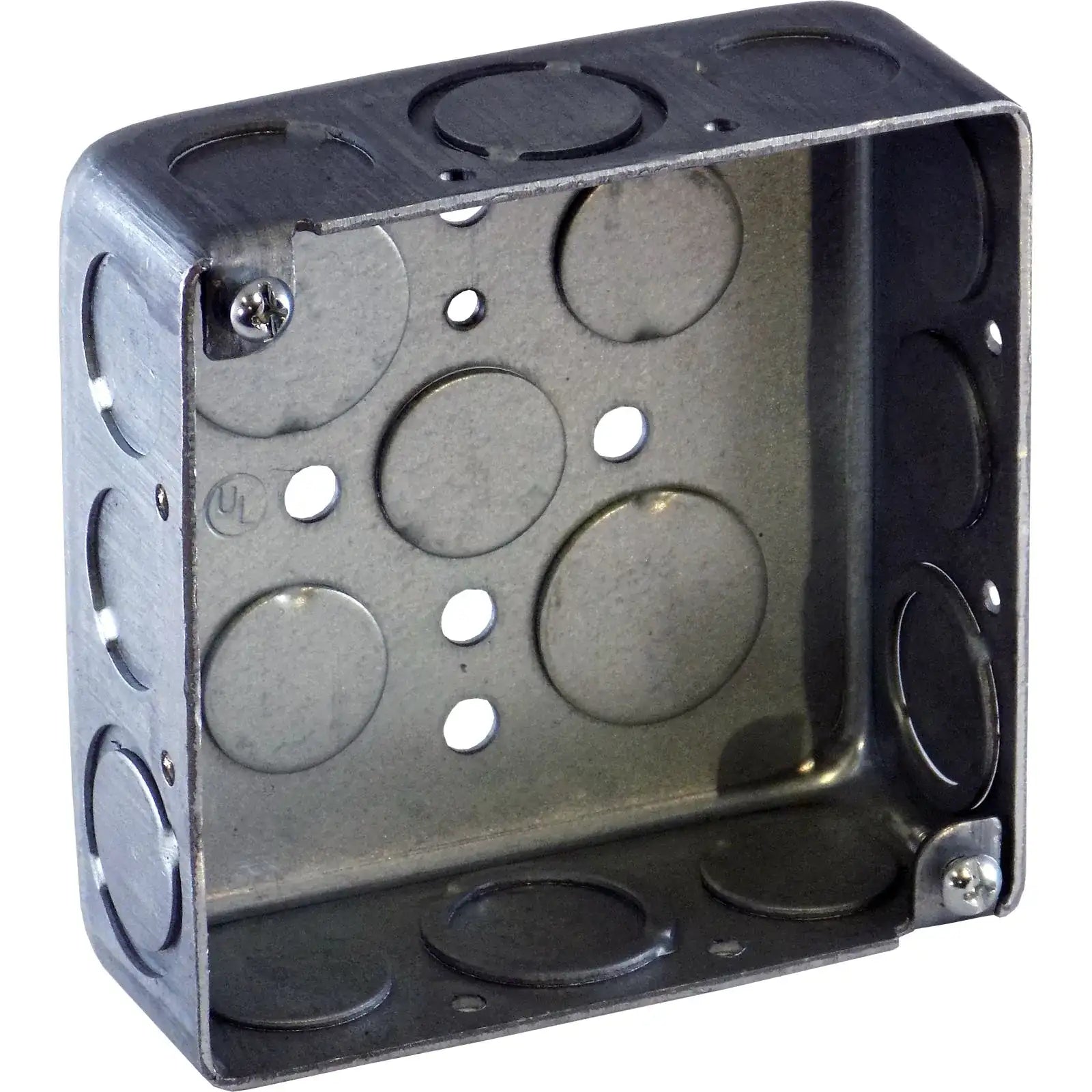

The Bramec 13431 is a 4-inch square, 1-1/2 inch deep steel utility box designed for use in surface or concealed wall applications. Constructed from galvanized steel, this box supports branch circuit wiring and device mounting in commercial and residential environments. It features 17 knockouts to accommodate various conduit entry configurations and is used for switch, receptacle, and splicing applications.

• 4" square with 1-1/2" depth suited for installations with space constraints.
• 17 total knockouts with mix of 1/2" and TKO knockouts for side and bottom conduit entries.
• Pre-galvanized steel provides corrosion resistance in standard dry indoor environments.

Product Highlights

Ideal for EMT, MC, or flex conduit systems in junction or device box installations. Supports horizontal and vertical conduit runs.

Product Information

Standard Information

• Brand: BRAMEC
• Manufacturer Part Number: 13431

Technical Specifications

• Manufacturer: Bramec
• Part Number: 13431
• Box Dimensions: 4" x 4" x 1-1/2"
• Volume: 21.0 cu. in.
• Knockouts: 17 (side and bottom)
• Material: Steel, galvanized finish
• Mounting: Welded back for surface or stud mounting; compatible with standard box supports
• Length (inches): 4
• Width (inches): 4
• Height (inches): 1.5
• Item Type: Outlet Boxes
• Brand: Bramec
• MPN: 13431
• Shape: Square
