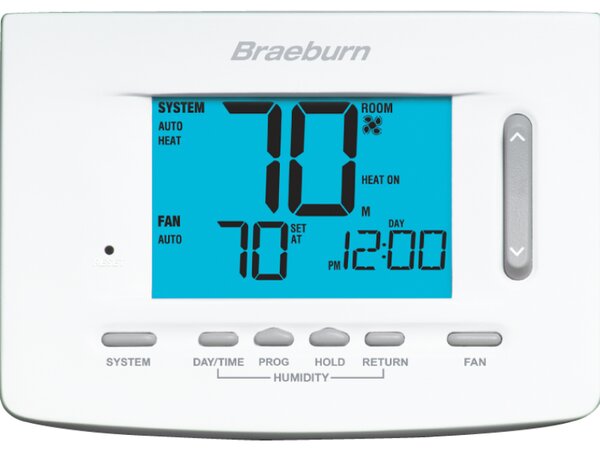

Braeburn Systems 5025 universal thermostat auto changeover programmable 18 to 30 VAC, 3 VDC

Product Description

The Braeburn Systems 5025 is a Premier Universal Programmable Thermostat designed for precise temperature control. Operating with an 18 to 30 VAC or 3 VDC power source, it offers 7-day, 5-2 day, or non-programmable options. This thermostat features auto and manual changeover capabilities, a 5 A amperage rating, and maintains accuracy within +/-1 deg F. It is suitable for various HVAC systems requiring reliable temperature management.

• Large 5 sq-in display with bright blue backlight
• Auto or manual changeover for flexible operation
• Adjustable temperature limits for customized control

Product Highlights

Universal programmable thermostat with auto/manual changeover and backlight display.

Product Information

Standard Information

• Brand: BRAEBURN SYSTEMS
• Manufacturer Part Number: 5025

Technical Specifications

• Product ID: 20482648714
• Inventory SKU: BRA5025
• MPN: 5025
• Brand: BRAEBURN SYSTEMS
• Reference ID: BRAEBURNSYSTEMS5025
• Parent SKU: BRA5025
• Accuracy: +/-1 deg F
• Amperage: 5 A
• Battery Size: AA
• Battery Type: Alkaline
• Changeover: Auto, Manual
• Differential Temperature: 0.5 to 1 deg F
• Display Type: Backlight
• Humidity Rating: 5 to 95 %
• Stages: 4
• Power Source: Battery, Hardwire
• Programmability: 7 Days, 5 to 2 Days, Non-Programmable
• Operating Temperature: 14 to 140 deg F
• Termination: C, G, H/D, O/B/V3, RC, RH, S1, S2, W1/E, Y
• Input Voltage: 18 to 30 VAC, 3 VDC
