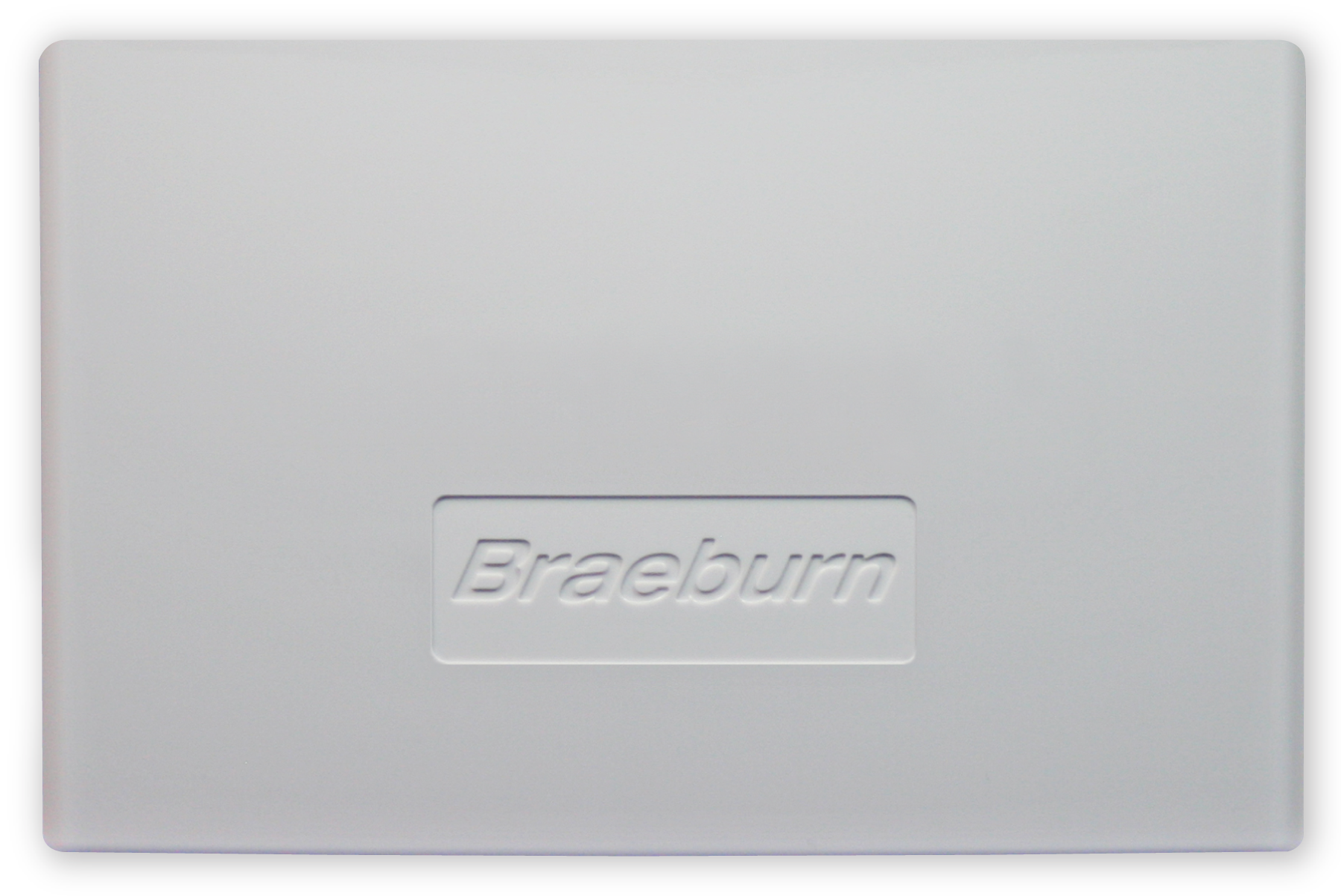

Braeburn Systems 140424 Premier Zoning Expander Panel 24 VAC

Product Description

The Braeburn Systems 140424 Premier Zoning Expander Panel operates at 24 VAC. It is designed for zoning applications and is suitable for use with conventional and heat pump systems. The panel is expandable up to 32 zones and supports 4 heat / 2 cool staging. It is compatible with single or multistage thermostats.

• Expandable Up To 32 Zones
• Conventional or Heat Pump, Single or Multistage Thermostats
• 4 Heat / 2 Cool Staging

Product Highlights

Premier Zoning Expander Panel is designed for zoning applications and is suitable for use with conventional and heat pump systems.

Product Information

Standard Information

• Brand: BRAEBURN SYSTEMS
• Manufacturer Part Number: 140424
• Country of Origin: USA

Technical Specifications

• Series: Premier
• Stages: 4 Heat / 2 Cool
• Suitable For Use With: Conventional, Heat Pump
• Type: Zoning Panel
• Voltage Rating: 24 VAC
• Model: 140424
• Compatibility: Conventional, Heat Pump
• Dual Fuel: Yes
• Zone Priority: Yes
• Opposite Call: Yes
• Advanced Purge: Yes
• Panel Power: 3 VA maximum for panel
• System Power: 75 VA maximum, 50 VA maximum per zone
• Protection: Electronic self resetting current limiting per zone
• Zone Damper Control: Compatible with virtually all 24 VAC powered and spring dampers
• Indicators: LED's for all thermostats and dampers
• Switches: 4 position address switch
• Terminals: Panel Power: 24 V, 24 C, Thermostats (2 each): R, Y1, Y2, W1/E/AX1, W2/AX2, O/B/W3, G, L, C, Dampers (2 each): PO, C, PC, Communication (2 each): COM1, COM2, GND, COM3, COM4
• Brand: Braeburn
