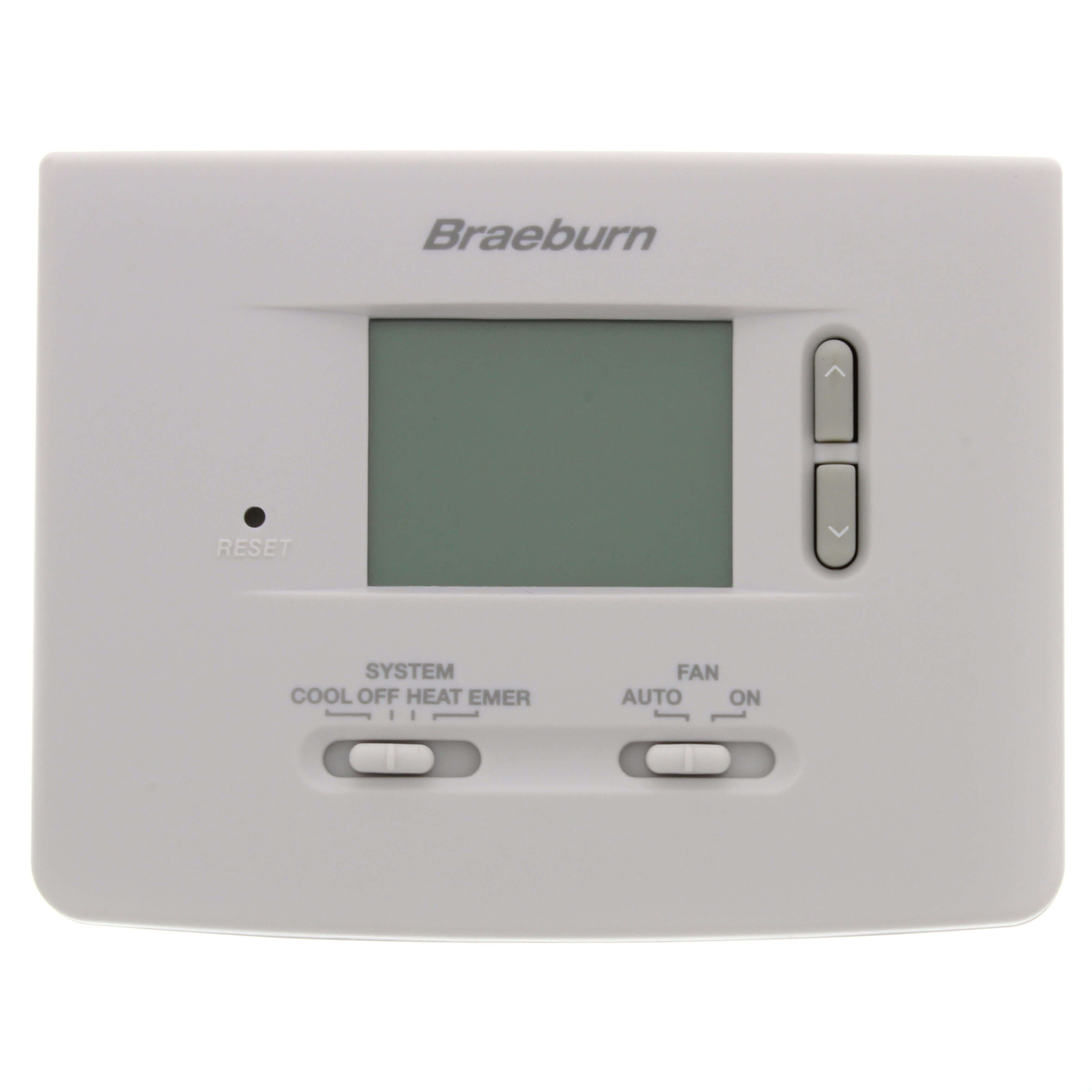

Braeburn 1220NC 2 Heat / 1 Cool Non Programmable Thermostat Builder Series

Product Description

The Braeburn 1220NC is a non-programmable thermostat designed for efficient temperature control in heating and cooling systems. This device accommodates 2 heat and 1 cool stages, making it suitable for conventional and heat pump systems. It features a large, easy-to-read display that measures 2 square inches with a bright blue backlight for nighttime visibility.

• Compatible with gas, electric, and heat pump systems
• Permanent memory retains user settings
• Adjustable temperature limits and separate terminal connections for enhanced flexibility

Product Highlights

This thermostat is built for reliability and ease of use, providing accurate temperature control while requiring minimal user input.

Product Information

Standard Information

• Type: Non-Programmable Thermostat
• Stages: 2 Heat / 1 Cool

Technical Specifications

• Voltage Type: 24 VAC, 3 VDC
• Display Size: 2 Square Inches
• Temperature Control Range: 45 to 90 Degrees Fahrenheit
• Temperature Display Range: 40 to 99 Degrees Fahrenheit
• Dimensions: 3.62 x 4.72 x 1.38 Inches
• Humidity Rating: 5 to 95 Percent Relative Humidity
• Battery Backup: Yes (2 AA batteries included)
• Warranty: 5 Years Parts Warranty
