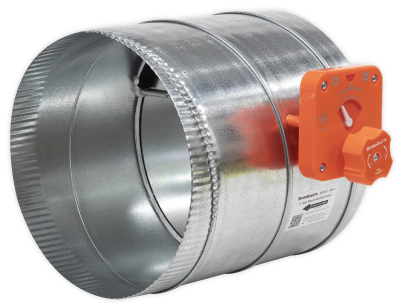

Braeburn Systems 119208 8 Inch Round Static Pressure Adjustable Bypass Damper

Product Description

The Braeburn 119208 static pressure adjustable damper maintains proper static pressure at the system plenum. This damper is an alternative to an electrically controlled bypass damper. System pressure is controlled without sensors or wiring via a field adjustable knob. It features heavy gauge galvanized steel construction and comes fully assembled for quick and easy installation.

• Can be mounted vertically or horizontally
• Adjustment knob saves installation time
• Easy to read water column indicator

Product Highlights

The Braeburn 119208 damper requires no wiring or sensors and features a high visibility damper position indicator.

Product Information

Standard Information

• Brand: BRAEBURN SYSTEMS
• Manufacturer Part Number: 119208

Technical Specifications

• category: Dampers
• manufacturer: Braeburn
• mpn: 119208
• subcategory: Adjustable Dampers
• Power: None Required
• Control: Adjustable Knob
• Indicators: Water Column, Open / Closed
• Construction: Heavy Gauge Galvanized Steel
• Mount: Vertical or Horizontal
• Air Flow: Right to Left
• Static Pressure: Maximum 0.8" W.C.
• Temperature Rating: 0° - 180°F Operating
• Operation: Spring Return
• Model: Adjustable Bypass
