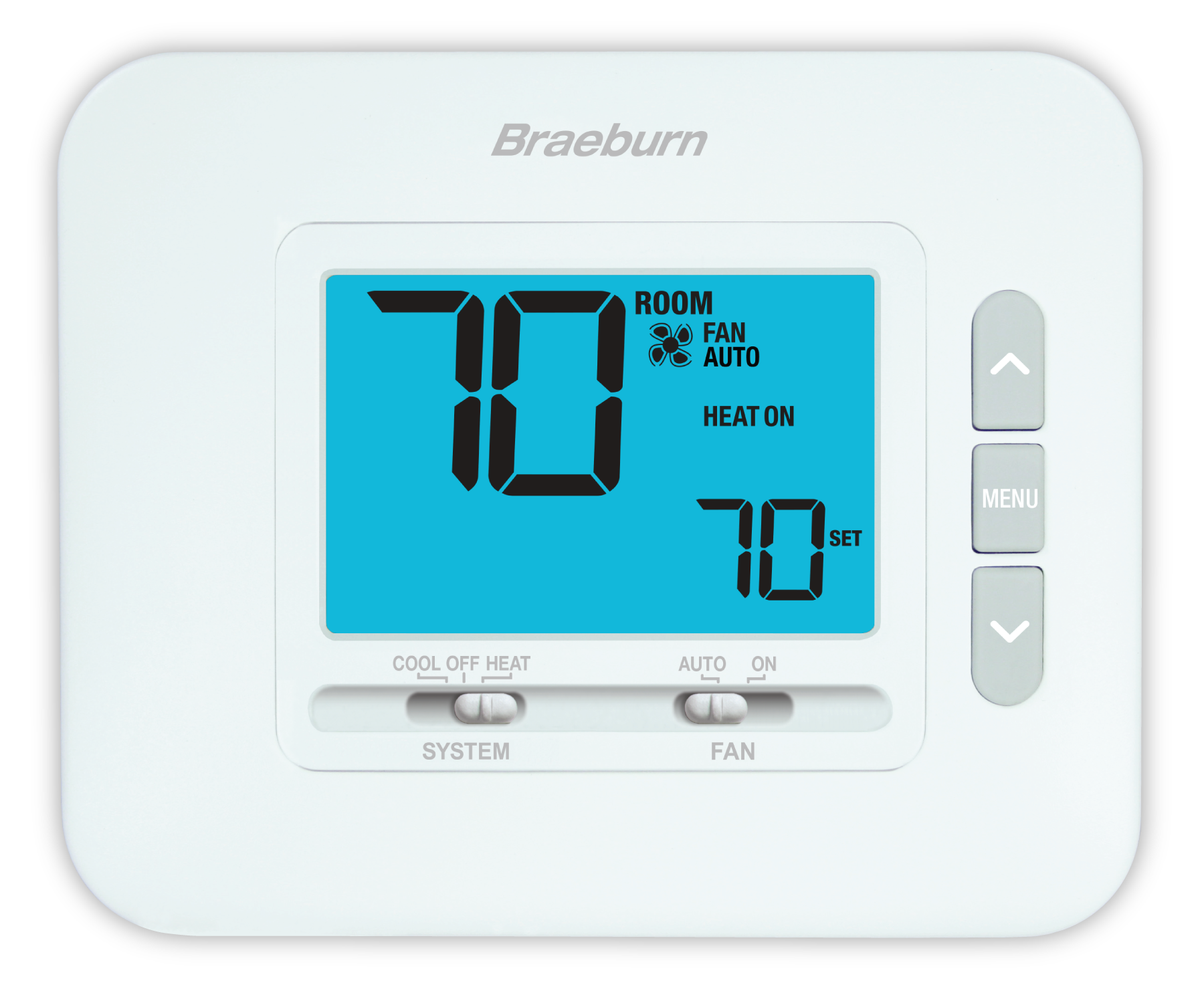

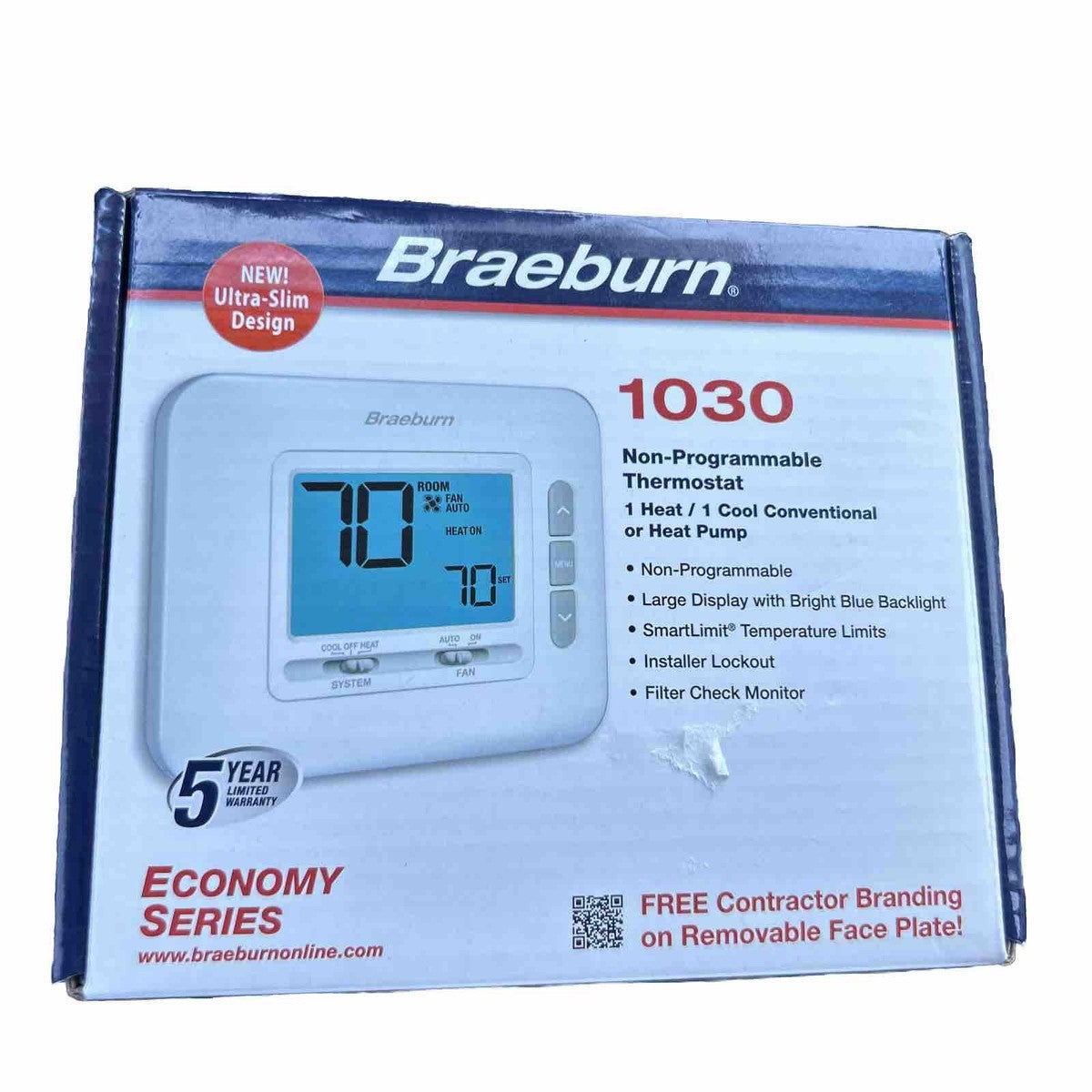

Braeburn Systems 1030-CL Non-Programmable 1H/1C Thermostat

Product Description

The Braeburn Systems 1030-CL is a non-programmable thermostat suitable for basic temperature control in residential HVAC systems. This model is compatible with single-stage gas, oil, and electric heating and cooling systems, as well as heat pumps and 2-wire hydronic zone systems.

It features a large display for easy readability, with a bright blue backlight that enhances visibility. The thermostat can be powered by either 24 Volt AC or two AA alkaline batteries, ensuring that user settings remain stored even during power outages.

• Large four point four square inch display with blue backlight
• Compatible with multiple HVAC systems
• Can operate on hardwire or battery with memory retention

Product Highlights

This thermostat is designed for residential use, providing a straightforward solution for heating and cooling control.

Product Information

Standard Information

• Brand: Braeburn Systems
• MPN: 1030-CL

Technical Specifications

• Stages: 1 Heat/1 Cool
• Programmability: Non-Programmable
• Power Method: Hardwired or Battery
• Voltage: 24V
• Display Size: 4.4 sq. in.
• Control Range: 45°F to 90°F (7°C to 32°C)
• Display Range: 35°F to 99°F (1.5°C to 37°C)
• Accuracy: +/- 1°F (+/- 0.5°C)
• Operating Humidity: 5% to 95% Relative Humidity
• Dimensions: 4.25 inches high x 5.12 inches wide x 1 inch deep
