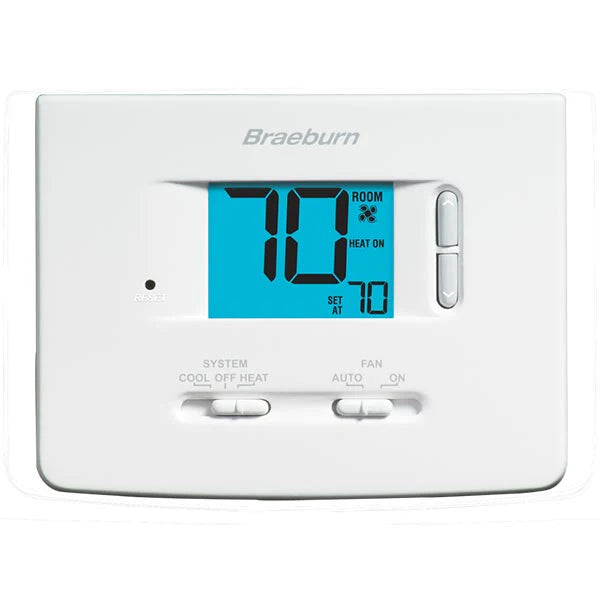

Braeburn 1020NC Single-Stage Dual Powered Thermostat

Product Description

The Braeburn 1020NC is a single-stage dual powered thermostat designed for HVAC systems. This product operates with a voltage of 24 VAC and can also support millivolt systems. Ideal for 1 heat and 1 cool applications, it is suitable for both heating and cooling units. The Braeburn Builder Series boasts a large two-inch display with a blue backlight for easy reading.

• Hardwired or battery powered operation
• Permanent memory retains user settings
• Compressor short cycle protection

Product Highlights

This thermostat includes features for convenient usage and maintenance. The adjustable temperature limits allow users to set desired ranges between forty-five and ninety degrees Fahrenheit. Its non-programmable design simplifies operations, making it user-friendly for residential or commercial environments.

Product Information

Standard Information

• Type: Thermostat
• Voltage Type: 24 VAC

Technical Specifications

• Display Size: 2 inches
• Amperage Rating: 3 A
• Dimensions: 4.72 inches W x 3.62 inches H x 1.38 inches D
• Temperature Range: 45 - 90 °F
• Differential Temperature: 0.5, 1 or 2 °F
• Humidity Rating: 5 - 95%
• Warranty: 5 Years Parts Warranty
