Braeburn Systems 101812 18x12 Rect Damper Po/Pc

Product Description

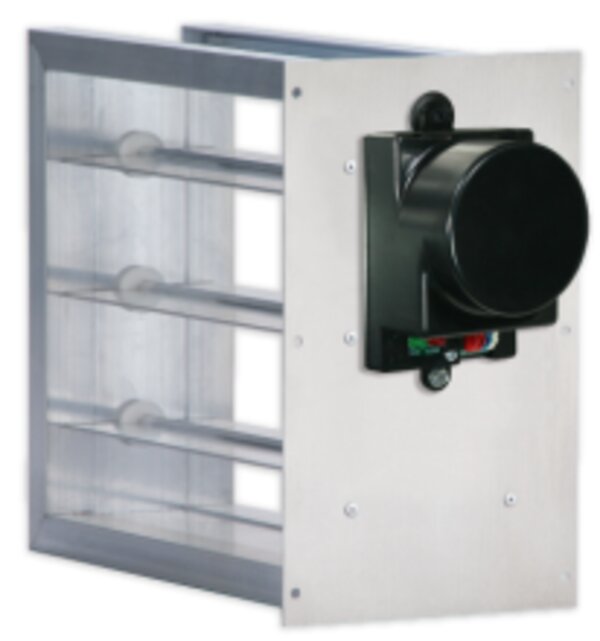

The Braeburn Systems 101812 is a motorized rectangular damper designed for HVAC zoning systems. This power open, power close unit measures 18 inches wide by 12 inches high. It operates on 24 VAC with a 4 VA power consumption and features a high torque actuator. Dual LEDs indicate open and closed positions, and it can be used as a zone or bypass damper.

• Solid Precision Cut Aluminum Frame
• Parallel Blade Design for Quieter Airflow
• Easy Slip in Design for Quick Installation

Product Highlights

Motorized rectangular damper with low leakage, ideal for HVAC zoning systems, measuring 18x12 inches.

Product Information

Standard Information

• Brand: BRAEBURN SYSTEMS
• Manufacturer Part Number: 101812

Technical Specifications

• SKU: 101812
• Power: 24 VAC, 4 VA
• Actuator: High torque
• Indicators: Dual LEDs Indicate Open and Closed
• Terminals: Three Terminals, Push Button Type
• Function: Use as Zone Damper or Bypass Damper
• Motorized: Yes
• Shape: Rectangular
• Spring Return: Non-Spring Return
