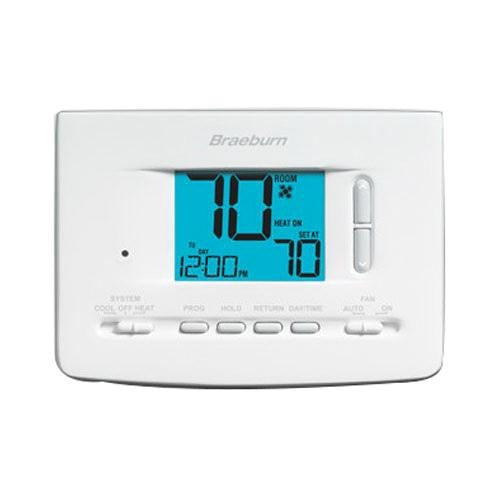

Braeburn BRAE-2020 Programmable Thermostat 1H 1C

Product Description

The Braeburn BRAE-2020 is a programmable thermostat from the Economy Series, designed to control single-stage heating and cooling systems in residential and light commercial applications. It operates on 18 to 30 VAC or 3 VDC and supports 1 Heat/1 Cool staging. The thermostat accepts both hardwired and battery power sources, using two AA alkaline batteries as a backup or primary supply. A 3 square-inch universal blue display provides clear readout of setpoints and current conditions. Temperature accuracy is rated at plus or minus 1 degree F, with adjustable differential settings of 0.5, 1, or 2 degrees F. Licensed HVAC technicians and qualified installers are the intended service professionals for this device.

The BRAE-2020 suits residential forced-air systems running conventional heat and cool configurations. It supports 7-day or 5-2 day programming schedules, allowing flexibility for weekday and weekend setback routines. The operating temperature range spans 45 to 90 degrees F for setpoints, with a storage rating of 14 to 140 degrees F. Humidity tolerance runs from 5 to 95 percent RH. Terminal designations include RH, RC, Y1, G, W1, O, B, and C, making it compatible with a range of low-voltage wiring configurations including heat pump systems with O/B reversing valve outputs.

Key Features

• 7-day and 5-2 day programmable scheduling for setback flexibility
• Dual power input: hardwired 18 to 30 VAC or two AA alkaline batteries
• 1 Heat/1 Cool single-stage control with O/B reversing valve terminal support
• 3 square-inch universal blue backlit display for easy reading
• Adjustable differential: 0.5, 1, or 2 degrees F
• Horizontal and vertical mounting orientation supported

Compatibility

Designed as an OEM-style replacement or upgrade thermostat for residential single-stage heating and cooling systems. Terminal layout including RH, RC, Y1, G, W1, O, B, and C supports conventional and heat pump low-voltage systems.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer instructions. Power down the air handler or furnace at the disconnect or breaker before removing the existing thermostat and making wiring connections. Mount the sub-base level on an interior wall away from drafts, direct sunlight, and heat sources to ensure accurate temperature sensing. Do not apply line voltage to low-voltage terminals.

Technical Specifications

• Series: Economy Series
• Voltage Rating: 18 to 30 VAC, 3 VDC
• Amperage Rating: 1 to 3 A
• Stages: 1 Heat / 1 Cool
• Programmability: 7-day and 5-2 day program
• Power Source: Hardwired, Battery
• Battery Type: (2) AA Alkaline
• Display Type: 3 sq-in Universal Blue
• Temperature Settings: 45 to 90 degrees F
• Temperature Storage Rating: 14 to 140 degrees F
• Differential Temperature: 0.5, 1, or 2 degrees F
• Accuracy: +/- 1 degree F
• Humidity Rating: 5 to 95% RH
• Terminal Designations: RH, RC, Y1, G, W1, O, B, C
• Mounting Type: Horizontal / Vertical
• Dimensions: 3.7 inches H x 5.16 inches W x 1.38 inches D

Standard Information

• Brand: Braeburn
• Manufacturer Part Number: BRAE-2020
