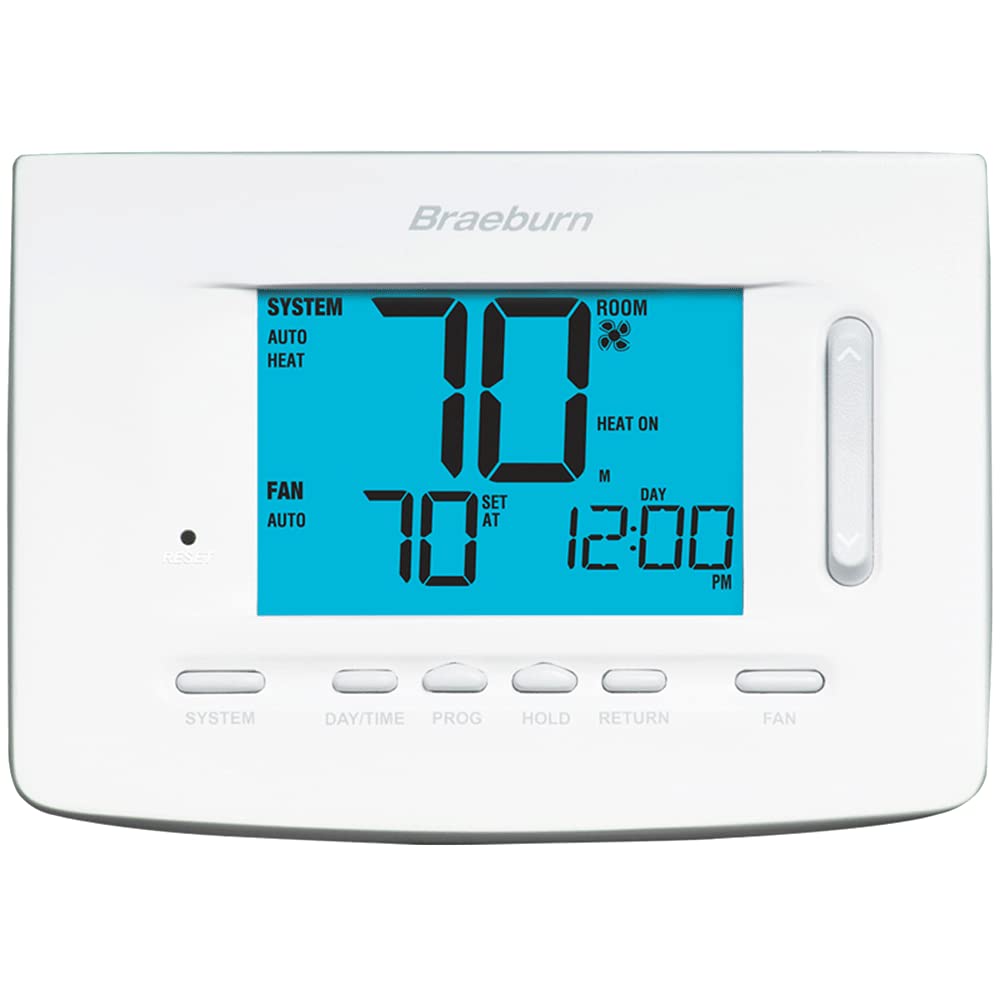

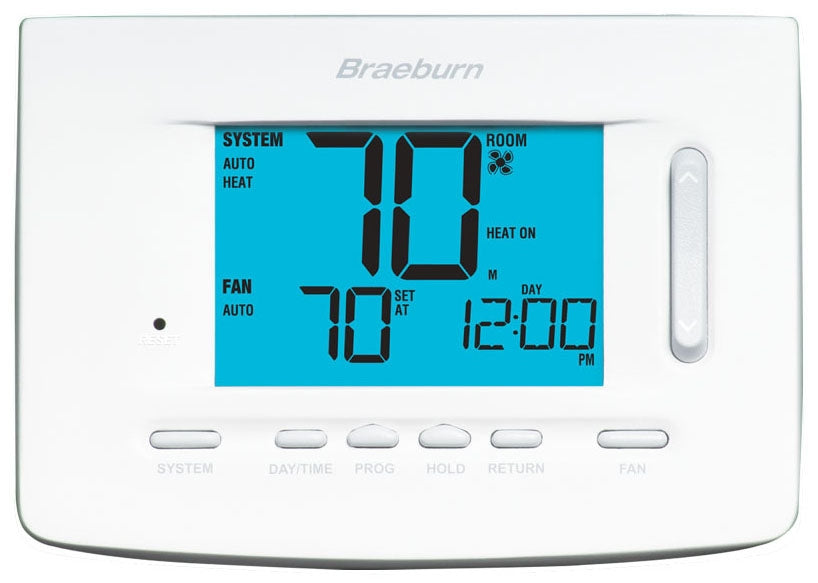

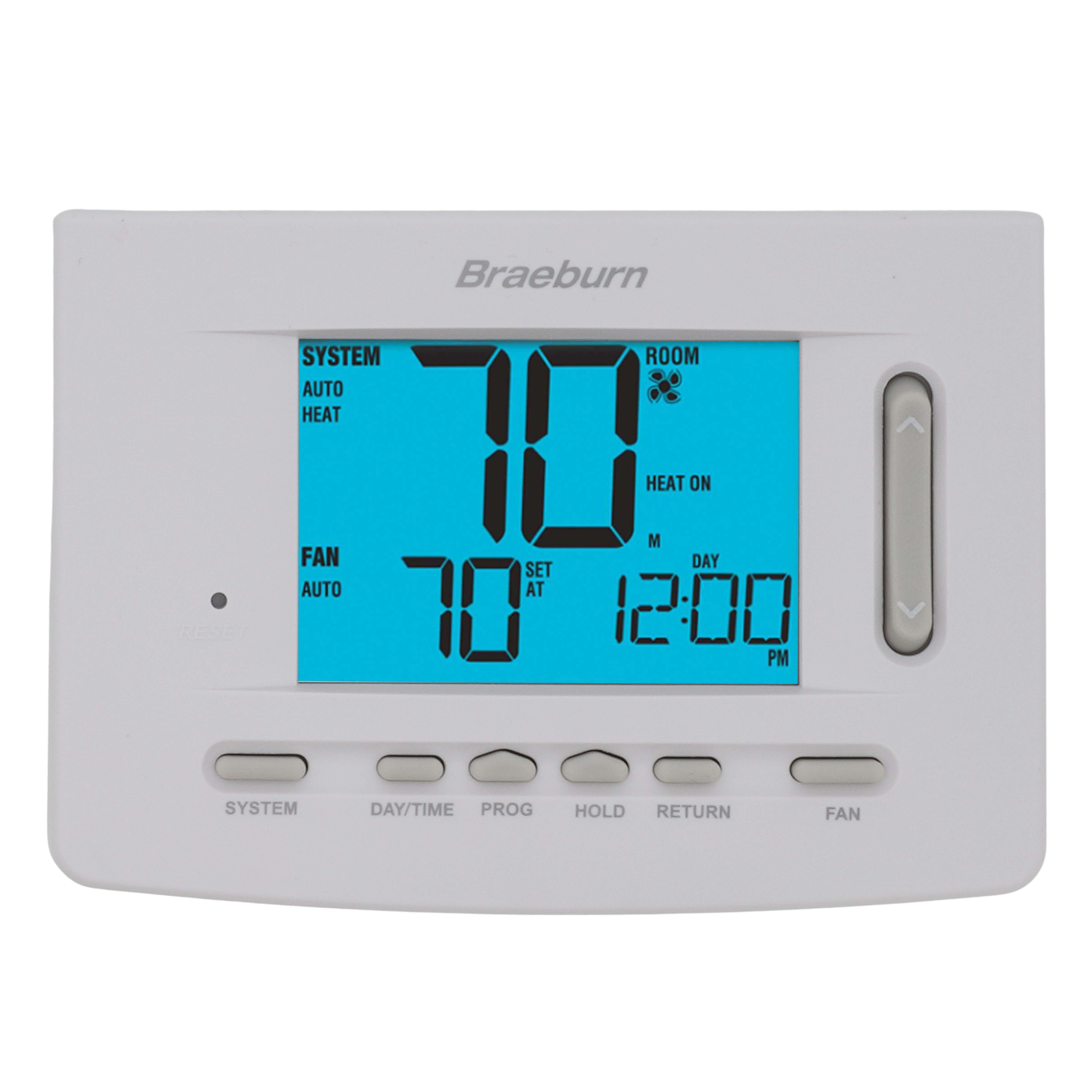

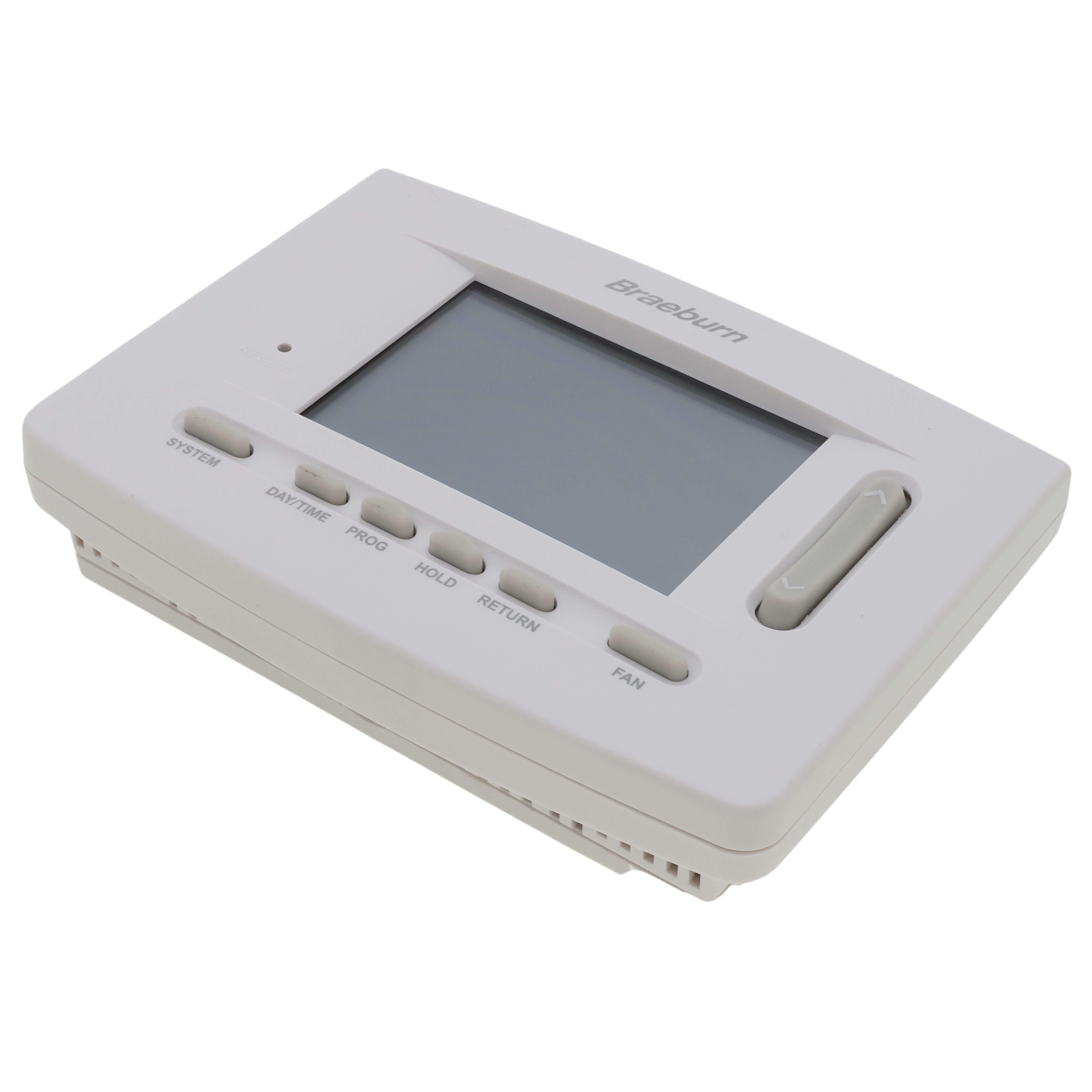

Product Description
The Braeburn 5220 Premier Series thermostat provides an innovative solution to temperature control. Loaded with high-end features, it is suitable for residential or commercial applications. Features a large 5" display, SpeedBar multi-function button and free contractor branding on the quick reference instruction card.
- 5-2 Day, 7 Day or Non-Programmable
- Large 5" Display with Bright Blue Backlight
- Auto or Manual Changeover
Product Highlights
This thermostat is compatible with 2 or 3 wire hydronic zone systems and offers residential or commercial modes.
Product Information
Standard Information
-
Brand: BRAEBURN
-
Manufacturer Part Number: 5220
-
Country of Origin: CHN
Technical Specifications
-
Display Size: 5 Inches
-
Product Depth: 2 Inches
-
Product Width: 6 7/24 Inches
-
Type: 5-2 Day/7 Day Universal Programmable/Non-Programmable, Auto Changeover, 3-Heat/2-Cool (Heat Pump), 2-Heat/2-Cool (Conventional), Multi-Stage
-
Product Height: 5 Inches
-
Product Category: Thermostats and Controls
-
Stages: 3 Heat/2 Cool
-
Interface: Digital
-
System Type: Heating + Cooling
-
Power Source: Battery/Hard Wired
-
Product Line: Premier
-
Programmable: Yes
-
Voltage Type: 24
-
Switch Contact Type: Digital
-
Maximum Measuring Temperature: 99 F
-
Minimum Measuring Temperature: 40 F
-
Batteries: 2 AA batteries required. (included)
-
Special Feature: Temperature Display, Programmable
-
Brand: Braeburn
-
Size: AA
-
Number of Items: 1.0
-
Product Type: HVAC_CONTROL_THERMOSTAT
-
Voltage: 24 VAC
-
Options [Features]: Fan Control, Large Display
-
Voltage [Features]: 24v
-
Wireless [Features]: No
-
Application [Features]: Multi-Stage (Heat/Cool), Heat Pump
-
Power Method [Features]: Hardwired, Battery
-

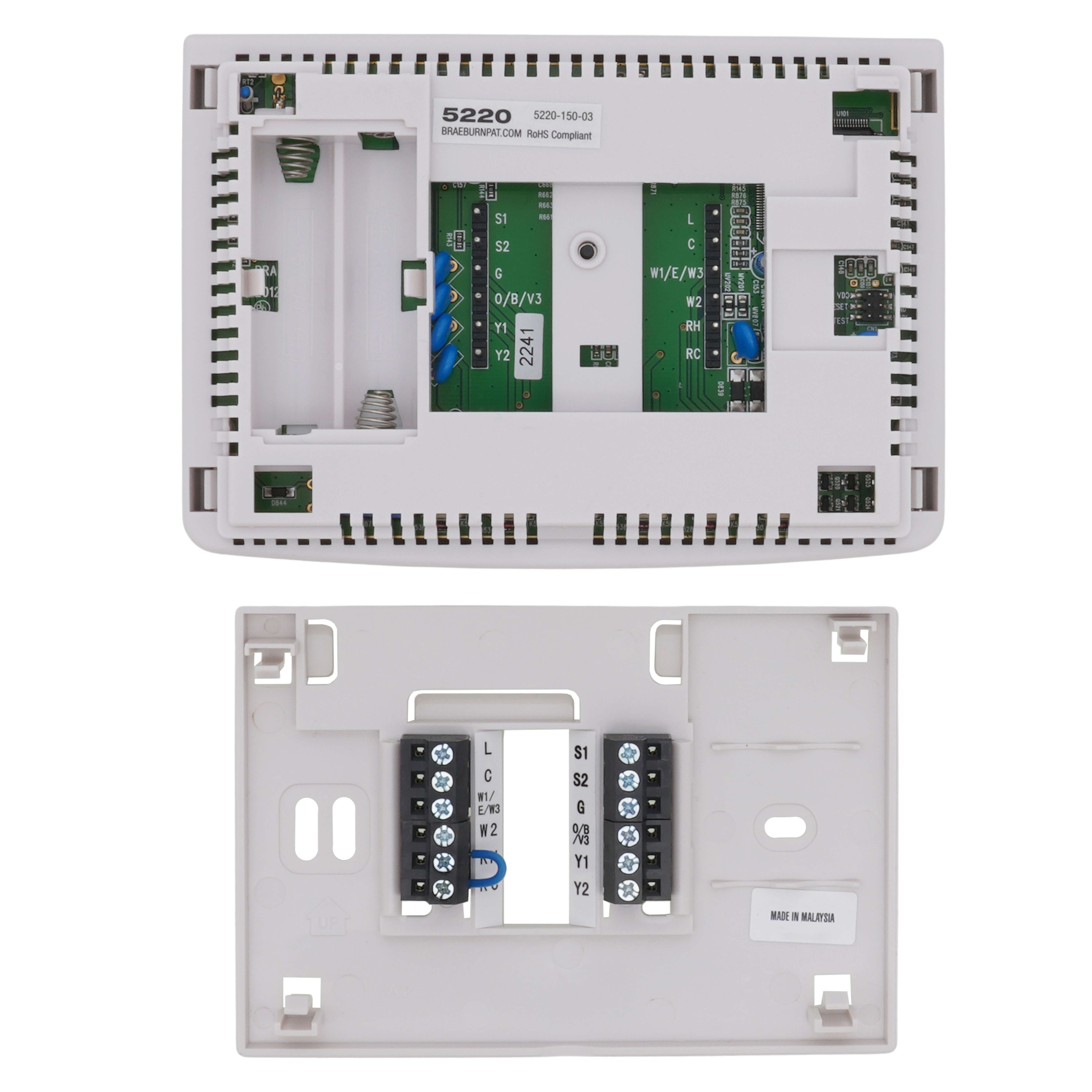

Terminations [Features]: G, Rc, Rh, W2, O/B/V3, Y1, Y2, W1/E/W3, C, L, S1, S2
-
User Interface [Features]: Push Button
-
Programmability [Features]: 7 Day, Programmable
-
Humidity Control [Features]: No
-
Mount [Features]: Horizontal
-
Shape: Rectangular
-
Style: Modern
-
Backlight: Yes
-
Control Type: Button Control
-
Control Method: App
-
Controller Type: Push Button
-
Special Features: Large Display, Programmable
-
Specification Met: UL
-
Connectivity Protocol: ZigBee
-
Specific Uses For Product: Heat Pump
-
750mV Compatible: Yes
-
Accuracy: +/- 1 deg F (+/- .5 deg C)
-
Ambient Temperature Range: 14 deg F to 140 deg F (-10 deg C to 60 deg C)
-
Auto Changeover: Yes
-
Batteries Included: Yes
-
Battery Backup: Yes
-
Built In Wi-Fi: No
-
Change/Check Reminders: Yes
-
Digital-Non Programmable: Yes
-
Digital-Programmable: Yes
-
Display: Yes
-
Displays Outdoor Temperature: Yes
-
Display Options: Backlight, LCD
-
Dual Transformer Compatible: Yes
-
Electrical Connection Type: Screw Terminals
-
Electrical Rating: 24 VAC
-
Energy Star Rated: No
-
Fan Switching: Yes
-
Heat Pump Compatible: Yes
-
Hinged: Yes
-
Humidification: No
-
Indoor Remote Sensor: Yes
-
Language: English
-
Length: 6.38
-
Low Battery Indicator: Yes
-
Manual: Yes
-
Mounting: Screws / Anchors
-
Operating Temperature Range: 40 deg F to 99 deg F (4.4 deg C to 37.2 deg C)
-
Programmable Fan: Yes
-
Prop 65: No
-
Removable Interface: Yes
-
Sensing Element: Yes
-
Stages Cool: 2
-
Switch Action: Button
-
System Switching: Yes
-
Temperature Range: 45 deg F to 90 deg F (7.22 deg C to 32.22 deg C)
-
Terminal Designations: Rc, Rh, O/B/V3, Y1, Y2, W1/E/W3, G, W2, L, C, S1, S2
-
Touchscreen: No
-
Vacation Mode: Yes
-
Width: 4.88
-
Works with Google Assistant: No
-
Works with Rheem EcoNet: No
-
Category: HVAC/R & Fans
-
Voltage Rating: 18 to 30 VAC, 3 VDC
-
Current Rating: 5 Amp
-
Temperature Rating: 14 to 140 deg F Storage
-
Additional Information: RoHS Compliant; Display Size 5 Square Inch; Battery Type (2) AA Alkaline; Terminal Designation RC, RH, W2, W1/E/W3, C, L, Y1, Y2, O/B/V3, G, S2, S1; Humidity 5 to 95 Percent; Accuracy +/- 1 Deg F; Includes Non-Volatile Memory, Adjustable Temperature Limit, UV and Humidier Pad Check Monitor, Battery
-
Series/Model: Premier
-
Manufacturer Name: Braeburn
-
Manufacturer Part Number: 5220
-
UNSPSC Code: 41112209
-
Amperage Rating: 1 to 5 A
-
Changeover: Auto, Manual
-
Dimensions: 3.86 in H x 5.11 in W x 1.42 in D
-
Display Type: 5 sq-in Universal Blue
-
Humidity Rating: 5 to 95% RH
-
Mounting Type: Horizontal
-
Primary power: C wire (24 VAC)
-
Backup power: internal disposable battery
-
Two wire compatible: Yes
-
C wire required: optional (see manual for exceptions)
-
Power sharing: No
-
Events per day: 4
-
Early recovery: Yes
-
Auto daylight savings: No
-
Air filter reminder: Yes
-
Password protection: Yes
