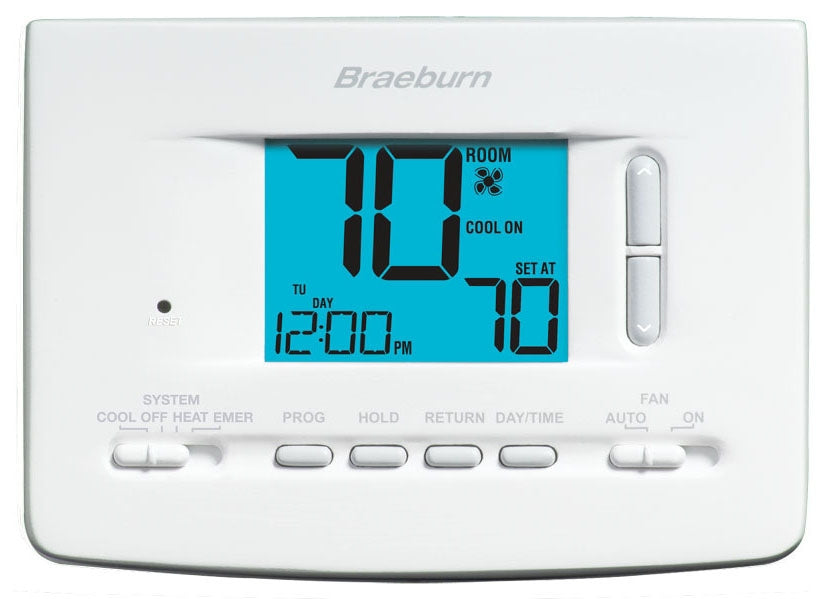

Braeburn 2220 5-2 Day Programmable Thermostat 2 Heat/2 Cool Economy Series

Product Description

The Braeburn 2220 is a 5-2 day programmable thermostat designed for 2 heat and 2 cool systems. This thermostat offers an economical solution for temperature control. Its bright blue backlight and three square inch display make it easy to operate. The thermostat includes features that help contractors and property owners manage installation and energy costs.

• 5-2 Day and 7 Day Programming Options
• Large Display with Blue Backlight
• Adjustable Temperature Limits and Differentials

Product Highlights

The Braeburn 2220 provides programmable options for energy savings and comfort. Its permanent memory retains settings even after power loss. The digital interface allows for easy adjustments.

Product Information

Standard Information

• Brand: Braeburn
• MPN: 2220

Technical Specifications

• Type: Programmable Thermostat
• Stages: 2 Heat, 2 Cool
• Voltage Type: 24 VAC
• Power Source: Battery/Hard Wired
• Temperature Range: 45 to 90 Deg F (Control)
• Dimensions: 5.16 inches Width x 1.38 inches Depth x 3.7 inches Height
• Weight: 1 Pound
• Terminal Designations: Rh, Rc, Y1, Y2, G, W1/E, W2, O, B, C
