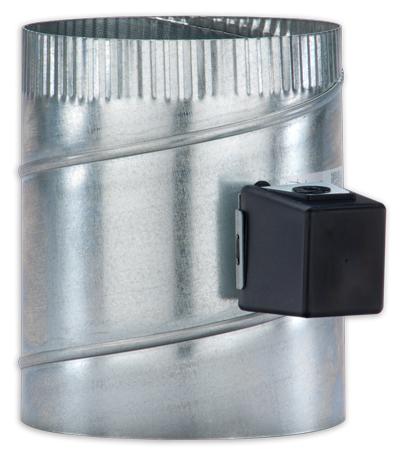

Braeburn 129006 round damper PO/SR 24 VAC, 8 VA 6 inch

Product Description

The Braeburn 129006 is a 6-inch round power open/spring return damper designed for HVAC zone control systems. Operating on 24 VAC with 8 VA power consumption, this motorized damper regulates air volume distribution to specific zone areas. It features a two-wire installation and a stall and backlash protected motor, ensuring reliable operation and automatic closure upon power failure. Constructed from galvanized steel, it integrates into ductwork for efficient air management.

• Power Open Spring Return with Power Fail Close Operation
• Long life, stall-capable motor with backlash protection
• Heavy-duty galvanized steel construction with stiffening ribs

Product Highlights

Motorized 6-inch round damper with power open/spring return, galvanized steel construction, and power fail close operation for reliable air volume control.

Product Information

Standard Information

• Brand: BRAEBURN SYSTEMS
• Manufacturer Part Number: 129006

Technical Specifications

• Power: 24 VAC, 8 VA
• Coating: Galvanized
• Damper Type: Zone Dampers
• Diameter: 6 in
• Material: Steel
• Shape: Round
• UPC: 833732004707
• Motorized: Yes
• Operation Type: Power Open, Spring Return (NC)
• Actuator Type: Clock Drive with Backlash Protection
• Connection: Two Wire Leads
