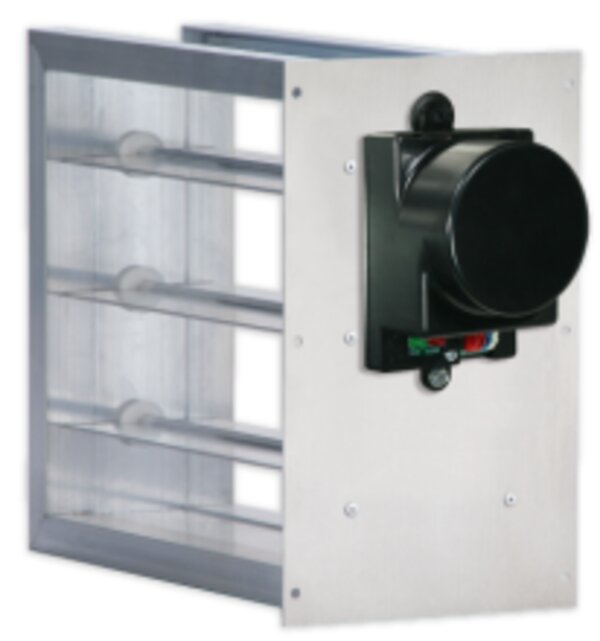

braeburn 101412 14x12 rect damper po/pc 24 vac 4 va

Product Description

The Braeburn 101412 rectangular damper is designed for air distribution control in zoned areas using rectangular ducts. It features a solid precision cut aluminum frame and a parallel blade design for quieter airflow. Operating on 24 VAC, 4 VA power, this damper offers an easy slip-in design for quick installation and advanced low leakage. It includes long-life quiet bushings and dual LEDs to indicate open and closed positions. This unit functions as a zone or bypass damper.

• Solid Precision Cut Aluminum Frame
• Parallel Blade Design for Quieter Airflow
• Easy Slip-in Design for Quick Installation

Product Highlights

Precision-engineered rectangular damper for quiet, efficient air distribution in zoned systems.

Product Information

Standard Information

• Brand: BRAEBURN SYSTEMS
• Manufacturer Part Number: 101412

Technical Specifications

• Power: 24 VAC, 4 VA
• Actuator Type: High torque
• Indicators: Dual LEDs Indicate Open and Closed
• Terminals: Three Terminals, Push Button Type
• Function: Zone Damper or Bypass Damper
• Motorized: Yes
• Shape: Rectangular
• Size: 14 x 12 inches
• Spring Return: Non-Spring Return
