Brady 99524 Lockout Padlock - Keyed Different, Steel Material, 2 in Vertical Clearance

Product Description

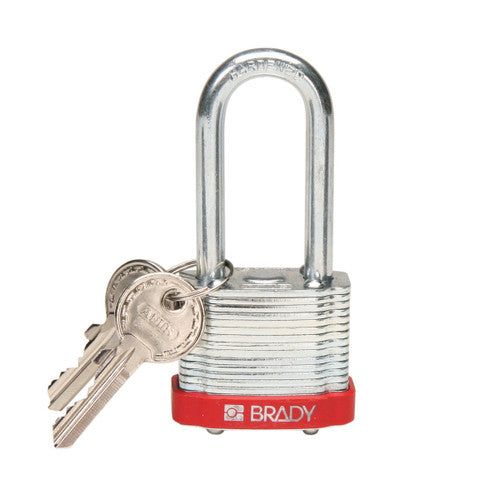

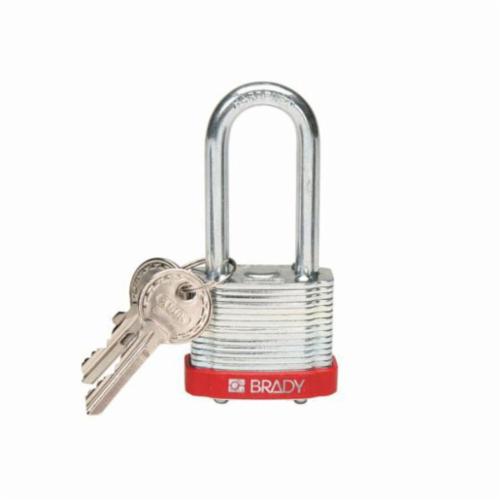

The BRADY 99524 Lockout Padlock is a keyed different padlock made of steel with a laminated finish/coating and a steel shackle. It features a 1/4 inch shackle diameter and a 2 inch vertical clearance. This padlock meets ANSI Z244 and OSHA 29 CFR 1910.147 standards and is suitable for lockout tagout applications.

• Keyed Different lock mechanism
• Constructed with a steel body and shackle for durability
• Compliant with ANSI Z244 and OSHA 29 CFR 1910.147 standards

Product Highlights

This steel lockout padlock offers rust protection, corrosion resistance, and heavy-duty performance for equipment lockout in harsh environments.

Product Information

Standard Information

• Brand: BRADY
• Manufacturer Part Number: 99524
• Country of Origin: GERMANY

Technical Specifications

• Key Type: Keyed Different
• Labeling: No Label
• Body Width: 1-9/16 in
• Body Height: 1-1/3 in
• Body Material: Steel
• Standards Met: ANSI Z244, OSHA 29 CFR 1910.147
• Body Thickness: 7/8 in
• Finish/Coating: Laminated
• Number Of Pins: 5
• Shackle Diameter: 2 in.
• Shackle Material: Steel
• Body/Bumper Color: Red
• Vertical Clearance: 2 in
• Colored Body or Bumper: Colored Bumper
• IGCC: 7344
• Type: Corrosion-Resistant, Heavy Duty, Rust Protection
• Color: Red
• Vendor: 172600
• Included: (1) Padlock;(2) Keys
• Standard: OSHA 1910.147
• Application: Lockout Tagout
• Body Length: 1 in
• Family group: SAFETY PRODUCTS
• For Use With: Equipment Lockout
• Manufacturer: BRADY
• Lock Mechanism: Standard Pin Tumbler
• Special Features: Key Retaining Feature
• WES Product code: 2822952989.500
• Temperature Range: -70 to 210 DEG F
• Body Coating/Finish: Individually Coated Laminates
• Shackle Length Or Clearance: 2 in
• Catalog Page #: 40
• Product Number: 99524
• UPC: 754473995249
• UOM: Each
• Brand Name: Brady®
• Padlock Body Type: Standard
• Body Size: 1.4 in H x 1.1 in W x 1 in D
• Shackle Horizontal Clearance: 0.8 in
• Material Number: LOTO-12 (View Technical Data Sheet)
• Material: Reinforced laminated steel body with hardened steel shackle
• Material Properties: Corrosion-resistant, Heavy-duty, Rust Protection
• Padlock Body Material: Steel
• Shackle Coating/Finish: Triple-coated, Hardened
• Conductivity: Yes
• Key Option: Keyed Different
• Key-Retaining: No
• Maximum Number of Different Keycodes: 15000
• Number of Pin Tumblers: 5
• Number of Keys Included: 2
• Number of Labels Included: 0
• California Prop 65: WARNING: Risk of cancer and reproductive harm from exposure to Lead. See www.p65warnings.ca.gov
• REACH SVHC Status: Part contains an SVHC
• REACH Candidate List Date: 23 January 2024
• Country of Origin: China
• ECCN (Export Commodity Control Number): EAR99
• HTS Code (Harmonized Tariff Schedule): 8301.10.6080
• RoHS Compliance Status: Not applicable to this product
• UNSPSC: 46171501
• Applications: For Harsh Environments, Industrial Manufacturing, Outdoor
• Max Operating Temperature: 210 degrees F
• Max Temperature: 210 degrees F
• Min Operating Temperature: -70 degrees F
• Min Temperature: -56.7 degrees C
• Brand: Brady Corporation
• 12-Digit UPC: 754473995249
• GTiN: 00754473995249
• Product UPC: 75447399524
• Shackle Height: 2 in
• Shackle Width: 0.8 in
• CA Prop65 Warning: Y
• Body Depth (imperial): 1 in
• Body Depth (metric): 25.40 mm
• Body Height (metric): 35.56 mm
• Body Size (metric): 35.56 mm H x 27.94 mm W x 25.40 mm D
• Body Width (imperial): 1.1 in
• Body Width (metric): 27.94 mm
• Brady Material Number: LOTO-12
• Conductive: Yes
• Depth (metric): 25.40 mm
• Dimensions (metric): 27,94 mm (W) x 25,40 mm (D)
• Enables Industry Compliance (North America): OSHA 1910.147
• Engraving: Yes
• Engraving Parameters: Engraving on bottom & key
• Industry: Beverage processing, Chemical, Automotive, Construction, Energy utilities, Food processing, Manufacturing, Oil & gas, Process, Pulp & paper
• Labels Supplied: No
• Maximum Service Temperature (°C): 98.9 °C
• Maximum Service Temperature (°F): 210 °F
• Minimum Service Temperature (°C): -56.7 °C
• Minimum Service Temperature (°F): -70 °F
• Primary Noun, Basic Function.1: Padlock
• SAP B-Number: LOTO-12
• SAP Local Description: BRADY LOCK, STEEL, 2 in KD RED
• Service Temperature Range (°C): -56.7 °C - 98.9 °C
• Service Temperature Range (°F): -70 °F - 210 °F
• Shackle Diameter (imperial): 0.25 in
• Shackle Diameter (metric): 6.35 mm
• Shackle Horizontal Clearance (imperial): 0.8 in
• Shackle Horizontal Clearance (metric): 20.32 mm
• Shackle Vertical Clearance (metric): 50.80 mm
• Shackle Width (imperial): 1.28 in
• Shackle Width (metric): 32.50 mm
• Width (metric): 27.94 mm
• Compliance: CA Prop 65 Label Warning
• CA Prop 65 Labeled?: Y
• Contains CA PROP 65 Substance: Yes Contains-Label required
• Contains CA PROP 65 Substance (Y/N): Y
• Contains CA PROP 65 Warning Type: Cancer and Reproductive Harm
• Contains CA Prop 65 Cancer and Reproductive Harm Chemical: Lead
• Contains Heavy Metal(s): No - Does not contain
• DOT Hazardous Material: No = is not a DOT hazardous material
• EU RoHS Compliance: Not Applicable
• EU RoHS Compliant: No
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
• MFG Part Number: 99524
• Product Type: Accessory
• Sold By: Each
• Number of Cylinder Pins: 5 pin
• Shackle Vertical Distance: 2 in
• Overall Width: 1 9/16 in
• Overall Depth: 7/8 in
• Overall Height: 1 1/3 in
• Package Quantity: 1 per pack
• Case Quantity: 1 per pack
• Material - Body: Steel
• Material - Shackle: Steel
• Mechanism: Tumbler, Standard Pin
• Material Specification: Triple Coated Shackle
• Indoor or Outdoor Use: Indoor/Outdoor Use
