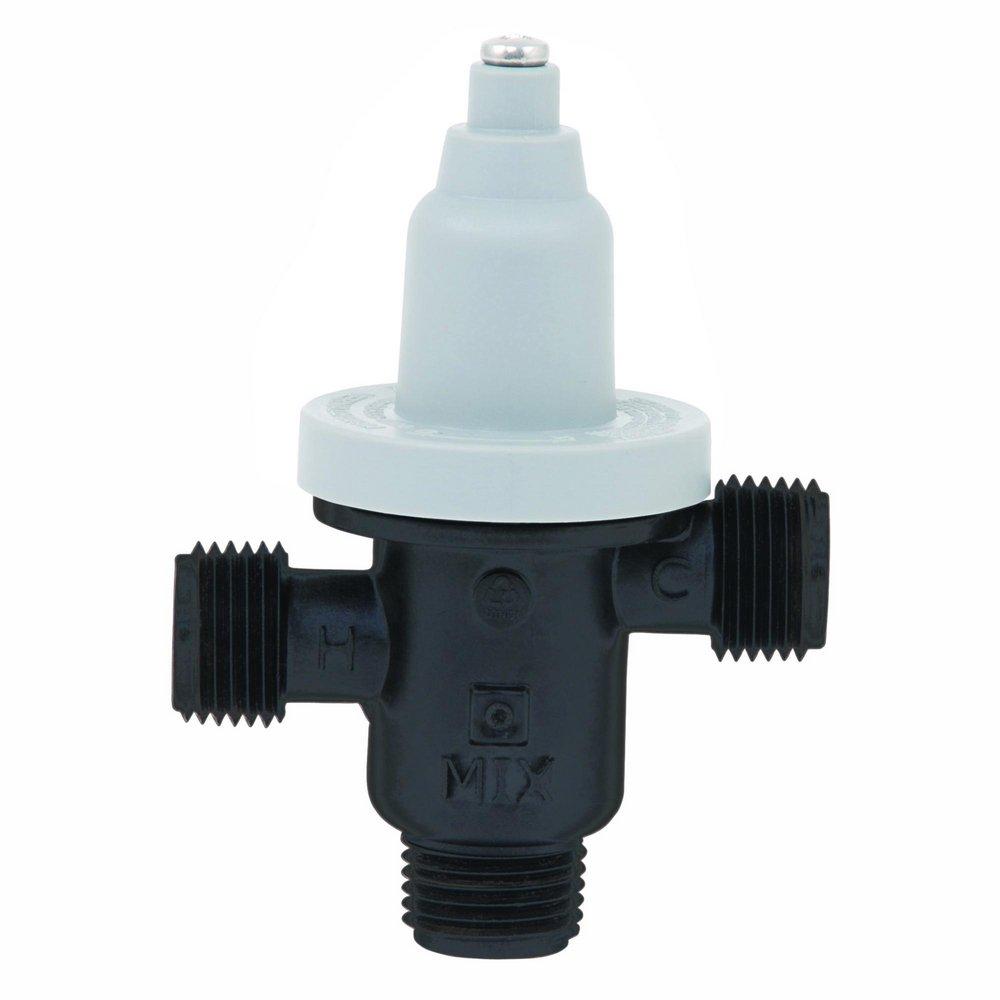

Bradley S59-4000 Navigator 1/2 in. MNPT Mixing Valve

Product Description

The Bradley S59-4000 Navigator 1/2 in. MNPT Mixing Valve is designed for precise temperature control in plumbing systems. This valve features a wax-filled thermostat for reliable performance and is factory assembled and tested. Easy installation and maintenance make it a preferred choice among professionals.

• Adjustable set point within temperature range
• Integral strainers on supply inlets
• Flow rate range of 0.35 to 5.5 GPM

Product Highlights

This mixing valve provides consistent temperature regulation, ensuring safe and comfortable water flow. It is ideal for use in various plumbing applications, offering durability and efficient performance.

Product Information

Standard Information

• Brand: Bradley Corporation
• MPN: S59-4000

Technical Specifications

• Body Material: Glass-Filled Polysulfone
• Flow Rate: 0.35 to 5.5 GPM
• Inlet Size: 1/2 inch
• Inlet Type: MNPT
• Outlet Size: 1/2 inch
• Outlet Type: MNPT
• Temp. Range: 95 Degrees to 125 Degrees F
• Max. Pressure: 125 PSI
• Overall Height: 4 1/8 inches
• Overall Width: 1 7/8 inches
• Inlet Temperature (Cold): 33 Degrees to 80 Degrees F
• Inlet Temperature (Hot): 120 Degrees to 180 Degrees F
• Standards: Annex G, ASSE 1070, CSA B125.3, NSF 61
