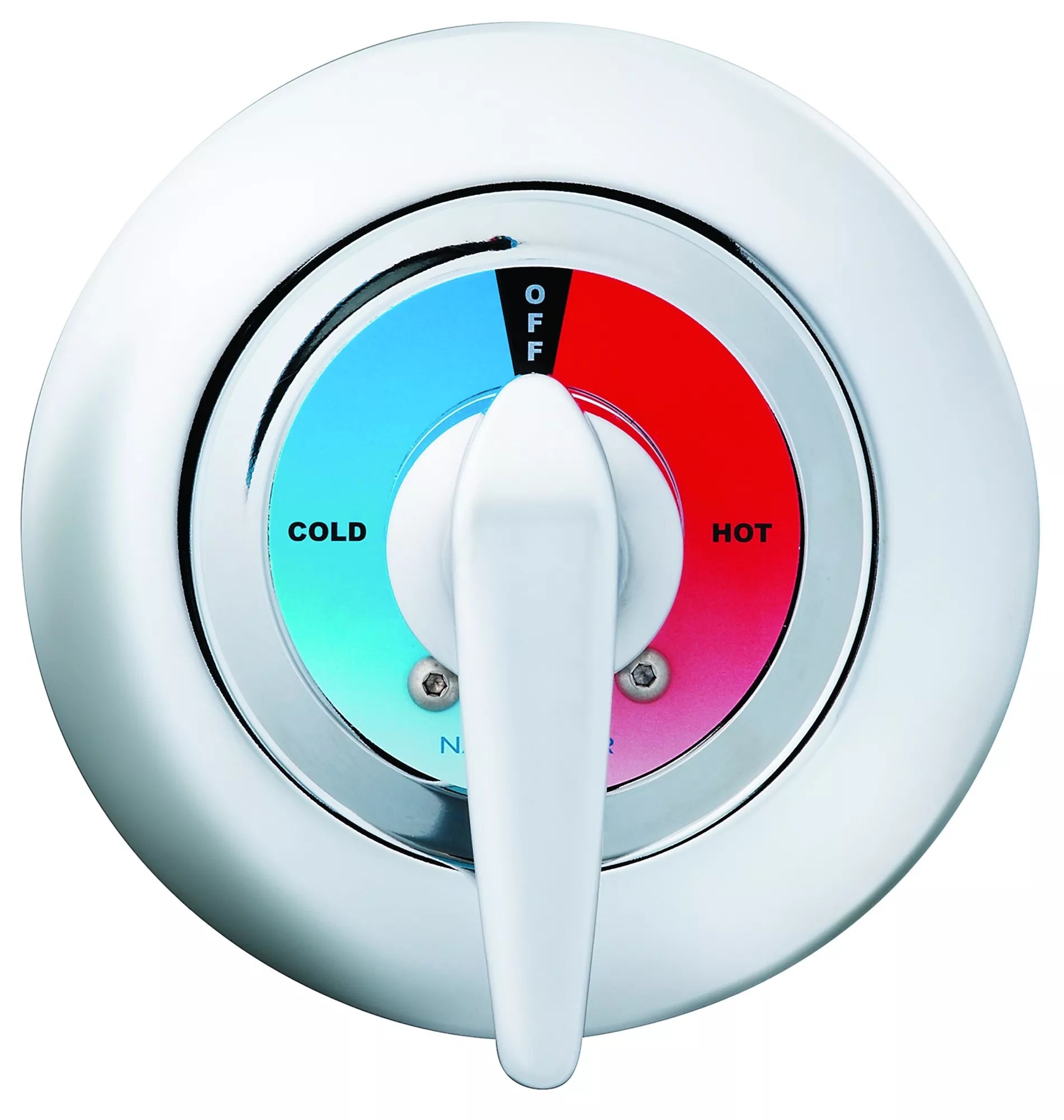

Bradley S59-2005 Thermostatic Mixing Valve 1/2 inches x 1/2 inches FPT

Product Description

The BRADLEY S59-2005 Navigator thermostatic mixing shower valve is for tempered domestic potable water applications. This valve responds to changes of incoming pressure or temperature and has checkstops on inlets with an adjustable set point. It is designed for commercial shower applications and is dirt and lime resistant.

• Thermostatic mixing shower valve
• For tempered domestic potable water applications
• Responds to changes of incoming pressure or temperature
• Has checkstops on inlets
• Adjustable set point

Product Highlights

The BRADLEY S59-2005 thermostatic mixing valve is durable with brass and stainless steel construction. It has an adjustable set point within temperature range and is factory assembled and tested.

Product Information

Standard Information

• Brand: BRADLEY
• Manufacturer Part Number: S59-2005
• Country of Origin: Multiple

Technical Specifications

• Brand: Bradley
• MPN: S59-2005
• Valve Application: Tempered Domestic Potable Water
• Body Material: Brass
• Valve Connection: FPT
• Inlet Connection Size: 1/2"
• Outlet Connection Size: 1/2"
• Minimum Flow GPM: 0.5 GPM
• Set Temperature: 110
• Max Pressure: 125 psi
• Point-of-Use Certified: Yes
• Point-of-Source Certified: No
• ASSE Classification: 1016
• Item: Tub and Shower Valve
• Type: Wall
• Finish: Bronze, Chrome
• Features: Paraffin Wax Filled Thermostat Insures Constant Outlet Temperature
• Standards: cUPC, SSE 1016
• Connection: 1/2 in NPT
• Handle Type: Single Lever
• Trim Finish: Chrome
• For Use With: Not Specified
• ADA Compliant: Yes
• Handle Length: 3 in
• Includes Stem: Yes
• Connection Size: 1/2 in
• Connection Type: NPT
• Flow Rate (GPM): 4
• Handle Material: Brass
• Includes Handle: Yes
• Spout Flow Rate: 4.5 gpm
• Trim Plate Depth: 1/4 in
• Trim Plate Shape: Circle
• Trim Plate Width: 6 1/2 in
• Trim Plate Height: 6 1/2 in
• Includes Cartridge: Yes
• Includes Tub Spout: No
• Ligature Resistant: No
• Includes Check Stop: Yes
• Includes Trim Plate: Yes
• Trim Plate Material: Brass
• Includes Drain Stopper: No
• Tub and Shower Category: Shower Valves
• Material of Construction: Bronze
• Maximum Operating Pressure: 125 PSI
• Maximum Inlet Temperature: 180 degrees Fahrenheit
• Certification: A.S.S.E. 1016 Certified
• Size: 1/2" NPT
• Custom Bundle: No
• Item Length: 7.100
• Depth: 6.800
• Item Height: 7.400
• Width: 6.800
• Item Width: 6.800
• Compatible Brand: BRADLEY
• Battery Included: No
• Bundle Description: No
• Item Diameter: N/A
• Color: N/A
• Set Includes: N/A
• California Prop 65 Warning: Y
• Type (specification): Faucets > Showerhead and Tub Accessories
• Length: 7.100
• Lead Free: Yes
