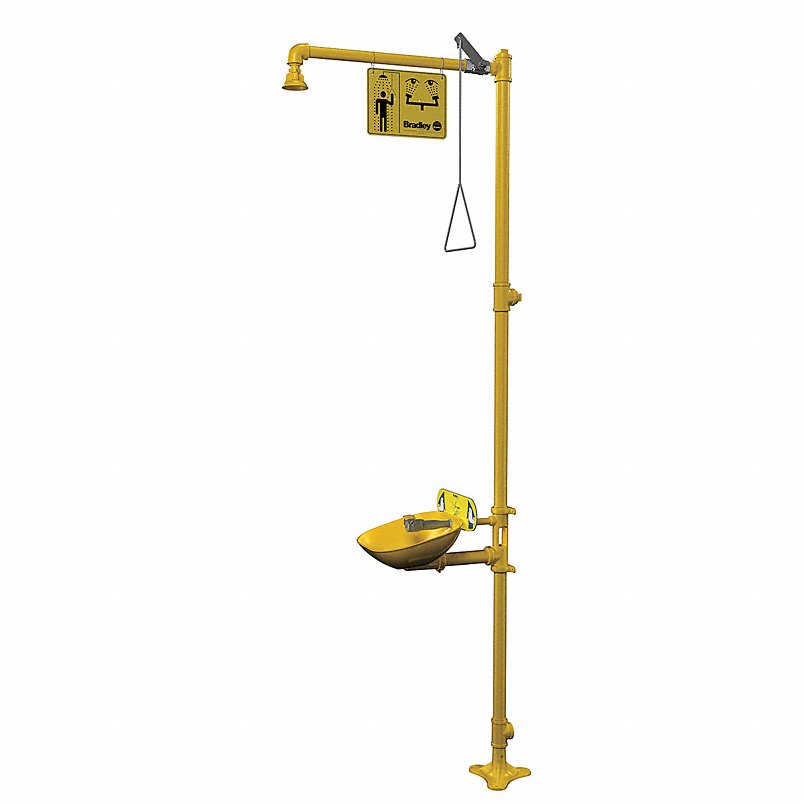

Bradley s19314ew Emergency Shower with Eyewash Floor Mount

Product Description

The BRADLEY s19314ew is a floor-mount emergency shower and eyewash combination unit designed for general-purpose industrial and commercial safety applications. The free-standing unit connects directly to a plumbed water supply and requires no wall or structural support, making it suitable for open work areas. The shower is activated by a pull rod and the eyewash station by a push plate, delivering a combined flow rate of 20 to 22 gallons per minute. Built on galvanized steel pipe with a plastic shower head and an uncovered plastic eyewash bowl, the unit stands 94-1/8 inches tall. It ships unassembled and includes an inspection tag and a universal identification sign. Installation is handled by licensed plumbers or safety equipment contractors familiar with ANSI Z358.1 emergency eyewash and shower standards.

The s19314ew is engineered for general-purpose environments where eye and body wash capability must be accessible in open floor areas away from walls. The floor-mount, standard-style configuration anchors to the floor through a 3/8-inch mount hole diameter and connects via a 1-1/4-inch NPT male inlet at the top and a matching 1-1/4-inch NPT male outlet. The yellow color finish aids in rapid visual identification during an emergency. The unit is part of the Bradley Halo series and is manufactured in the USA.

Key Features

• Free-standing floor-mount design installs in open areas without wall support
• Integrated eyewash and full-body shower in a single plumbed unit
• Flow rate of 20 to 22 gpm meets emergency safety flush requirements
• Galvanized steel pipe construction for corrosion resistance in industrial settings
• Push-plate eyewash activation and pull-rod shower activation for quick, hands-free operation
• Includes inspection tag and universal identification sign for compliance documentation
• Minimum operating temperature of 32 degrees F; suitable for tempered or ambient supply lines

Compatibility

Designed as an OEM-style floor-mount emergency shower and eyewash unit suitable for general-purpose industrial, manufacturing, laboratory, and chemical handling environments requiring plumbed safety station equipment.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ANSI Z358.1 emergency eyewash and shower equipment standards. Shut off the water supply to the feed line before making inlet and outlet connections. The 1-1/4-inch NPT male connections require appropriate fittings and thread sealant rated for potable or process water service. The unit ships unassembled; complete all mechanical assembly and verify full flow activation before placing the station in service.

Technical Specifications

• Mounting Type: Floor
• Mounting Style: Standard
• Minimum Flow Rate: 20 gpm
• Maximum Flow Rate: 22 gpm
• Inlet Pipe Size: 1-1/4 inches
• Inlet Pipe Thread Type: NPT
• Inlet Pipe Gender: Male
• Inlet Connection Location: Top
• Outlet Pipe Size: 1-1/4 inches
• Outlet Pipe Thread Type: NPT
• Outlet Pipe Gender: Male
• Mount Hole Diameter: 3/8 inches
• Height: 94-1/8 inches
• Width: 13 inches
• Depth: 26-13/16 inches
• Shower Spray Head Diameter: 3-1/10 inches
• Shower Handle Length: 26-1/4 inches
• Bowl Diameter: 13 inches
• Pipe Material: Galvanized Steel
• Eyewash Bowl Material: Plastic
• Eyewash Bowl Style: Uncovered
• Shower Head Material: Plastic
• Shower Handle Material: Stainless Steel
• Eyewash Handle Material: Stainless Steel
• Eyewash Spray Head Material: Plastic
• Valve Material: Chrome Plated Brass
• Color: Yellow
• Shower Activation: Pull Rod
• Eyewash Activation: Push Plate
• Minimum Operating Temperature: 32 degrees F
• For Environment: General Purpose
• Hazardous Location Rating: Not Rated
• Barrier Free: No
• Assembly: Unassembled
• Includes: Inspection Tag, Universal Identification Sign
• Series: Halo
• UNSPSC: 46182402
• Country of Origin: USA (subject to change)

Standard Information

• Brand: BRADLEY
• Manufacturer Part Number: s19314ew
