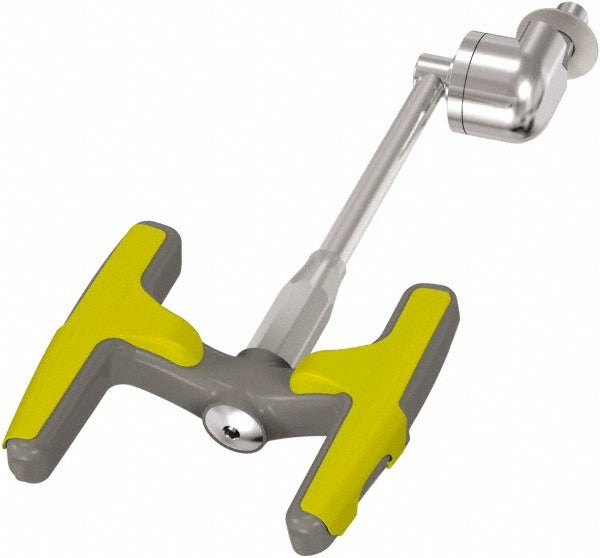

Bradley S19274JW Wall Mount Eye Face Wash Station

Product Description

The BRADLEY S19274JW is a wall-mounted emergency eye and face wash station designed for fixed installation in industrial, commercial, and laboratory environments. Activated by a push handle, the unit delivers a controlled flow of tepid water at 0.4 GPM through a 1/2-inch inlet connection, operating at 30 psi. It features a no-bowl design, keeping the mounting profile compact. The S19274JW meets ANSI Z358.1 requirements for emergency eyewash and face wash equipment, making it a code-compliant choice for facilities where occupational safety regulations mandate emergency eyewash access. Licensed plumbers and safety facilities managers are the primary installers.

This station is suited for permanent wall-mount installation in areas where workers may be exposed to hazardous chemicals, particulates, or biological agents. Typical locations include manufacturing floors, chemical processing areas, laboratories, janitorial rooms, and maintenance shops. The push-handle activation allows a worker to engage the flow quickly with minimal hand coordination, which is critical in emergency scenarios. The no-bowl configuration reduces overall depth, making it practical in tighter wall spaces where a basin-style unit would be impractical.

Key Features

• ANSI Z358.1 compliant for emergency eyewash and face wash applications
• Push-handle activation for rapid, single-motion engagement
• 0.4 GPM controlled flow rate at 30 psi operating pressure
• 1/2-inch inlet connection for standard plumbing rough-in
• No-bowl design reduces mounting depth and simplifies installation
• Compact footprint: 12.88 inches height, 5.19 inches width, 9.19 inches length

Compatibility

Designed as an OEM-style wall-mount emergency eye and face wash unit compatible with standard 1/2-inch supply plumbing rough-in in facilities requiring ANSI Z358.1-compliant emergency eyewash equipment.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ANSI Z358.1 positioning requirements, which specify mounting height and clearance from obstructions. Shut off the water supply to the branch line before making any connections. Do not exceed the rated inlet pressure during operation. After installation, flush the unit per ANSI Z358.1 weekly activation guidelines to verify proper flow and clear standing water from the supply line.
