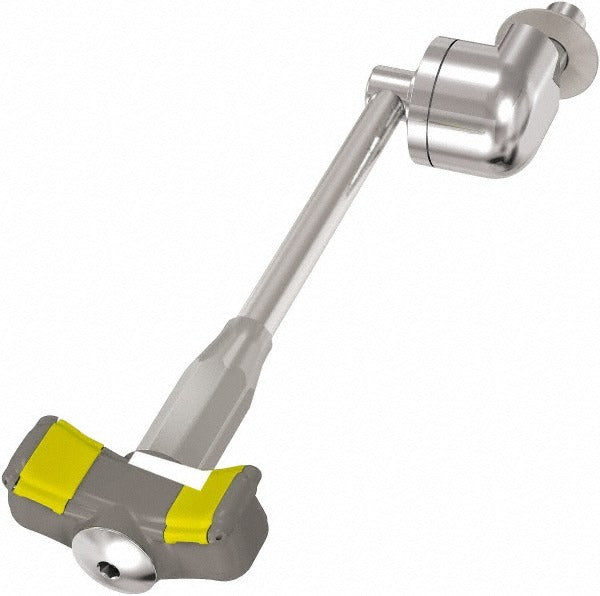

Bradley S19274HW Wall Mount Eyewash Station 0.4 Gpm

Product Description

The BRADLEY S19274HW is a wall-mounted eyewash station designed for fixed emergency eyewash applications in industrial, commercial, and institutional facilities. It delivers 0.4 gallons per minute (GPM) at a maximum flow rate through a 1/2-inch inlet connection, operating at 30 psi to produce a controlled, low-force water stream suitable for eye flushing. The unit is activated by a push handle, allowing fast single-motion operation even with impaired vision or slippery hands. There is no bowl on this model, making it suited for plumbed-in installations where drainage is handled by the surrounding fixture or floor drain. Licensed plumbers and safety facility professionals typically install and commission this unit.

The S19274HW is built for permanent wall-mount installation in locations where eyewash access must comply with ANSI Z358.1 emergency eyewash and shower standards. Typical deployment sites include chemical handling areas, laboratories, manufacturing floors, janitorial rooms, and mechanical spaces where eye-hazard exposure is a risk. The compact footprint measures approximately 12.88 inches in height, 5.19 inches in width, and 9.19 inches in length, making it practical for installations in tight wall-space environments. It connects to standard plumbing supply lines via a 1/2-inch inlet.

Key Features

• Push-handle activation for rapid, one-motion emergency operation
• 0.4 GPM flow rate at 30 psi for controlled flushing coverage
• 1/2-inch inlet connection compatible with standard supply plumbing
• No-bowl design simplifies installation where site drainage is already present
• Meets ANSI Z358.1 emergency eyewash equipment standards
• Compact wall-mount profile fits space-constrained installation locations

Compatibility

Designed as an OEM-style wall-mount eyewash station for permanent plumbed-in emergency eyewash applications meeting ANSI Z358.1 requirements.

Installation Notes

Installation is typically performed by a licensed plumber in accordance with applicable local plumbing codes and ANSI Z358.1 placement requirements, which specify accessible location, unobstructed path of travel, and proper mounting height. Shut off the water supply to the feed line before making any connections. Do not exceed the rated inlet pressure during operation, and flush the supply line before final connection to clear debris. Verify flow rate and pattern at commissioning to confirm compliance with the applicable emergency eyewash standard.
