Bradley S19224FW Wall Mount Face Wash replacement S19-220FW

Product Description

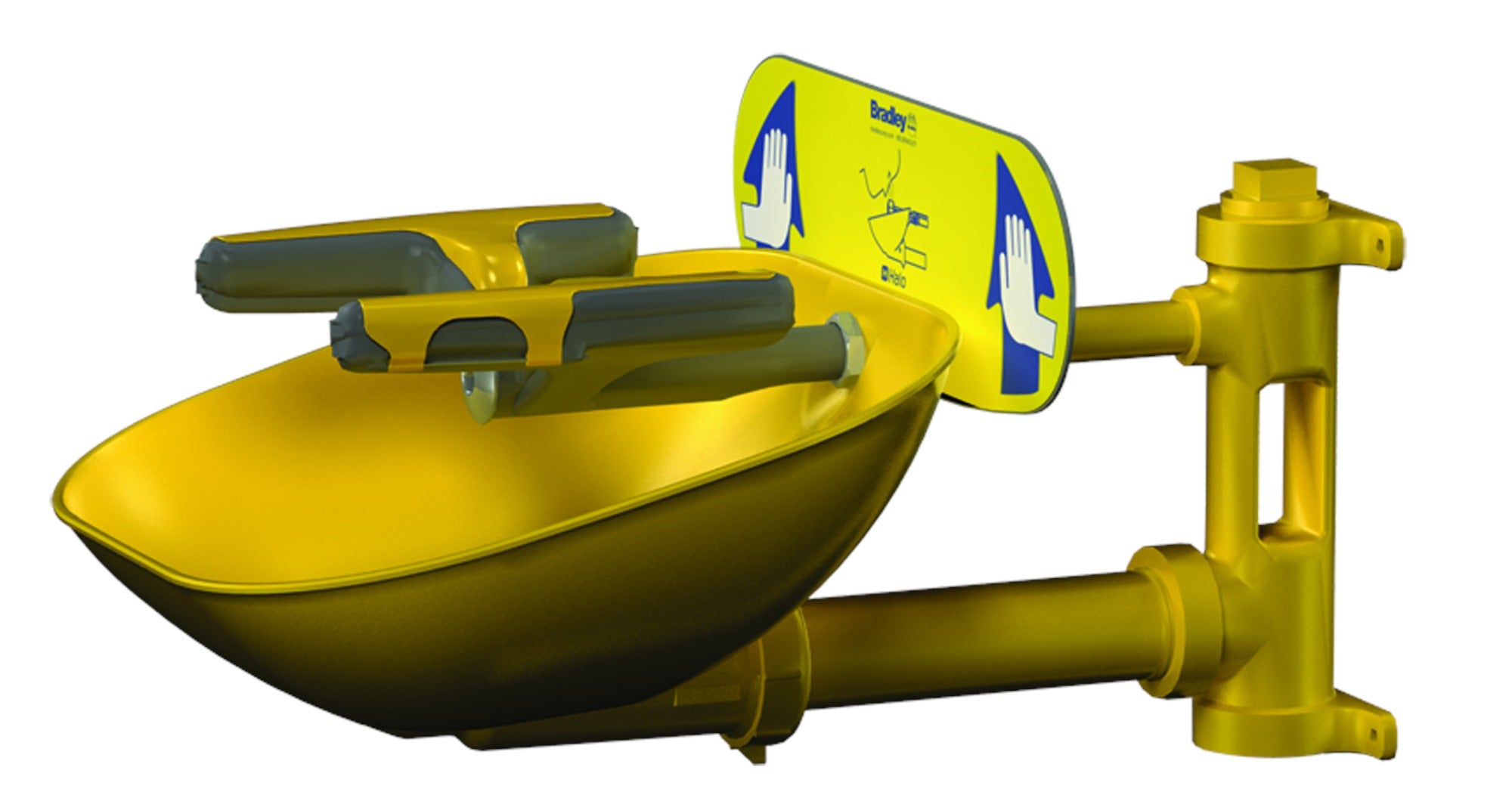

The Bradley S19224FW is a wall-mount eye-face wash unit designed for emergency eye and face rinsing. This plumbed eyewash features a plastic bowl and exceeds minimum water flow requirements, providing effective washdown coverage. It is activated by a push plate or handle and includes a barrier-free design, making it suitable for general purpose environments. The unit is constructed with galvanized steel piping and a yellow impact-resistant plastic bowl.

• Wall-mount design with a yellow impact-resistant plastic bowl.
• Exceeds minimum eye/face wash water flow of 3.0 GPM at 30 PSI.
• Features a barrier-free design and push plate activation for emergency use.

Product Highlights

Halo eye/face wash system provides effective washdown coverage and spray pattern for rapid relief, complying with ANSI Z358.1 standards.

Product Information

Standard Information

• Brand: BRADLEY
• Manufacturer Part Number: S19224FW
• Country of Origin: United States

Technical Specifications

• Type: Plumbed Eyewash
• Brand: Bradley
• MPN: S19224FW
• Series: Halo
• Mounting Type: Wall
• Coverage: Eyes and Face
• Activation: Push Plate
• Bowl Material: Yellow impact-resistant plastic
• Bowl Style: Uncovered
• Pipe Material: Galvanized steel with BradTect safety yellow coating
• Valve Material: Chrome Plated Brass
• Handle Material: Type 304 Stainless steel
• Spray Head Material: Plastic
• Spray Head Style: Covered
• Inlet Pipe Size: 1/2 in
• Inlet Pipe Gender: Female
• Inlet Pipe Thread Type: NPT
• Water Supply Inlet: 1/2 in NPT
• Drain Fitting Size: 1-1/4 in
• Outlet Pipe Thread Type: NPT
• Minimum Eye/Face Wash Flow: 3.0 GPM at 30 PSI
• Height: 14.625 in
• Width: 15.5 in
• Depth: 13.25 in
• Bowl Diameter: 13 in
• Head Diameter: 1.5 in
• Environment: General Purpose
• Hazardous Location Rating: Not Rated
• Installation Type: Plumbed
• Mount Hole Diameter: 1/2 in
• ADA Compliant: No
• Compliance: ANSI Z358.1
• Wall Bracket Material: Heavy-gauge sand cast aluminum with BradTect safety yellow coating
• Backflow Preventer Type: Dual-check
