Bradley S19-430A Plumbed Drench Hose Wall Mount 2.8 Gpm

Product Description

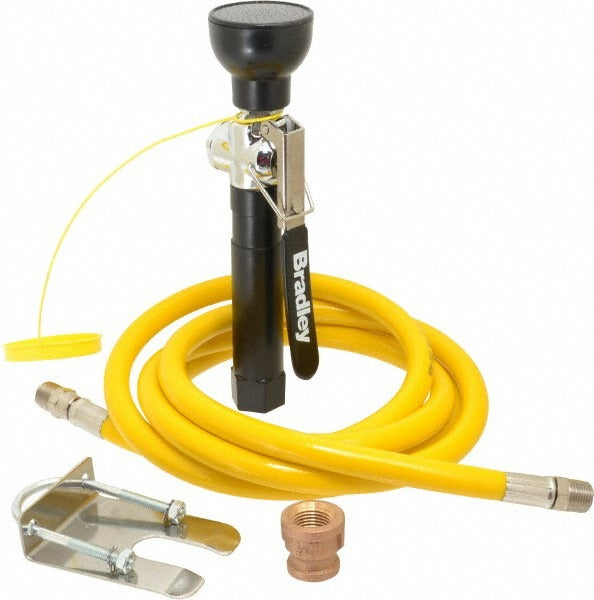

The BRADLEY S19-430A is a plumbed drench hose designed for emergency eyewash and body drench applications in industrial, laboratory, and commercial environments. Featuring a single spray head with a squeeze-trigger activation method, it delivers a maximum flow rate of 2.8 GPM through an 8-foot thermoplastic hose. The unit mounts to the wall and ships with a protective sprayhead cover and wall bracket included. Licensed plumbers and safety equipment installers handle this type of unit during facility buildouts or compliance retrofits. The S19-430A meets ANSI Z358.1-2009, the standard governing emergency eyewash and shower equipment.

The S19-430A is suited for fixed plumbed installations where personnel need immediate drench access following chemical or hazardous material exposure. The wall-mount configuration keeps the hose accessible and positioned at a consistent location. Typical install environments include manufacturing floors, chemical processing areas, laboratories, and maintenance shops. The 8-foot hose length provides reach flexibility without requiring the user to reposition significantly after an exposure event.

Key Features

• Meets ANSI Z358.1-2009 for emergency eyewash and drench equipment compliance
• Single spray head with squeeze-trigger activation for one-hand operation
• 8-foot thermoplastic hose provides extended reach from the wall mounting point
• Maximum flow rate of 2.8 GPM supports effective rinsing volume
• Includes protective sprayhead cover and wall bracket — ready for direct installation
• Wall-mount design keeps the unit fixed, visible, and accessible in emergency situations

Compatibility

Designed as a plumbed wall-mount drench hose for fixed emergency safety stations in facilities requiring ANSI Z358.1-2009 compliant equipment.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ANSI Z358.1-2009 placement requirements, which specify maximum travel distance and activation response time from hazard areas. Shut off the water supply to the feed line before making any connections. Do not overtighten fittings on the thermoplastic hose assembly. After installation, flush the line and verify flow rate before returning the station to service.
