Bradley S19-2100 Navigator® 3/4 in. NPT Mixing Valve

Product Description

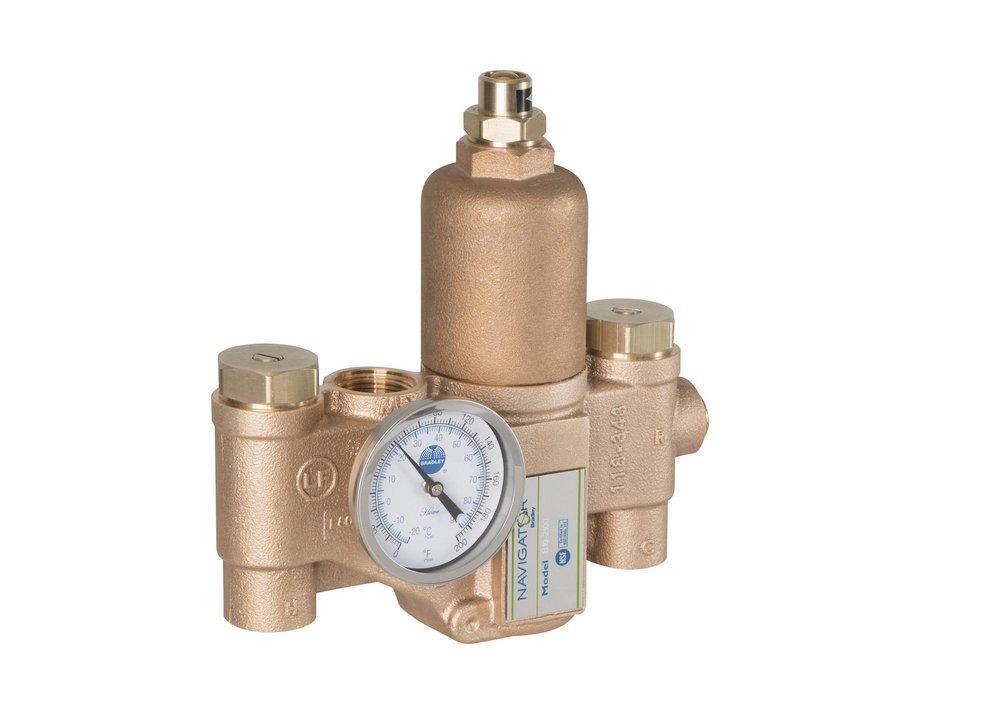

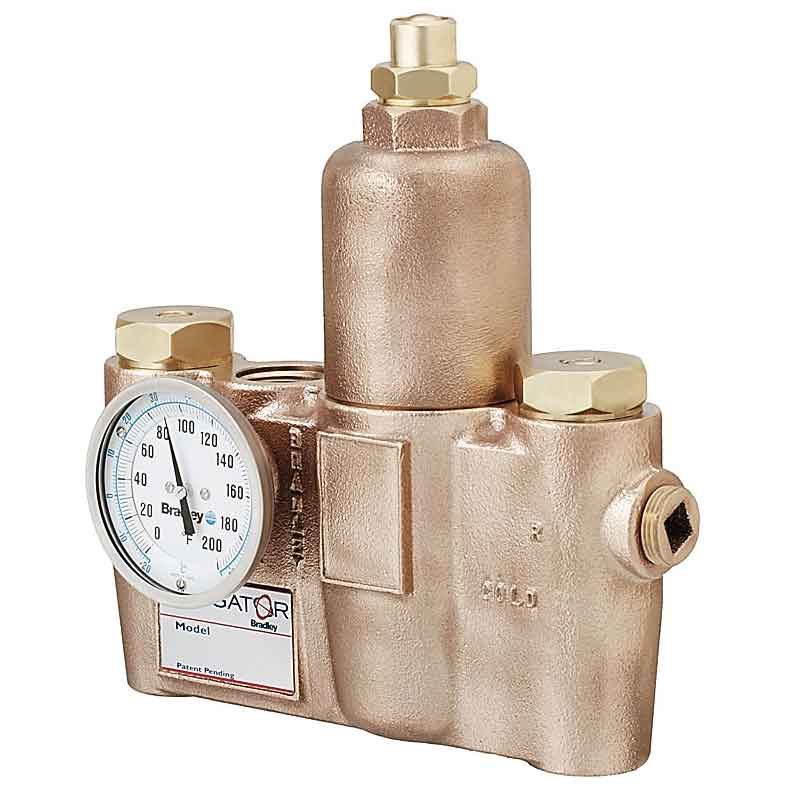

The Bradley S19-2100 Navigator® 3/4 inch NPT Mixing Valve provides precise temperature control for emergency fixture applications. This valve features a liquid-filled thermostat with an integral strainer and checkstops on the inlets for smooth operation. It is designed to accurately manage water temperatures, ensuring safety in emergency situations.

• Liquid-filled thermostat for reliable temperature management
• Integral strainer and checkstops on inlets enhance operational reliability
• Adjustable temperature set points with a built-in dial thermometer

Product Highlights

This mixing valve is crucial for maintaining temperate water conditions in emergency fixtures, delivering accurate temperature control to within three degrees Fahrenheit.

Product Information

Standard Information

• Brand: Bradley
• Model: EFX25

Technical Specifications

• MPN: S19-2100
• Body Material: Brass
• Inlet Connection Size: 3/4 inch
• Outlet Connection Size: 1 inch
• Minimum Flow Rate: 2 GPM
• Minimum Outlet Temperature: 65°F
• Maximum Outlet Temperature: 90°F
• Max Pressure: 125 psi
• Point-of-Use Certified: Yes
• Point-of-Source Certified: Yes
• ASSE Classification: 1071
• Weight: 20 lbs
