Bradley S19-2000 Navigator 1/2 in. NPT Emergency Fixture 1.5 GPM Thermostatic Mixing Valve Replacement

Product Description

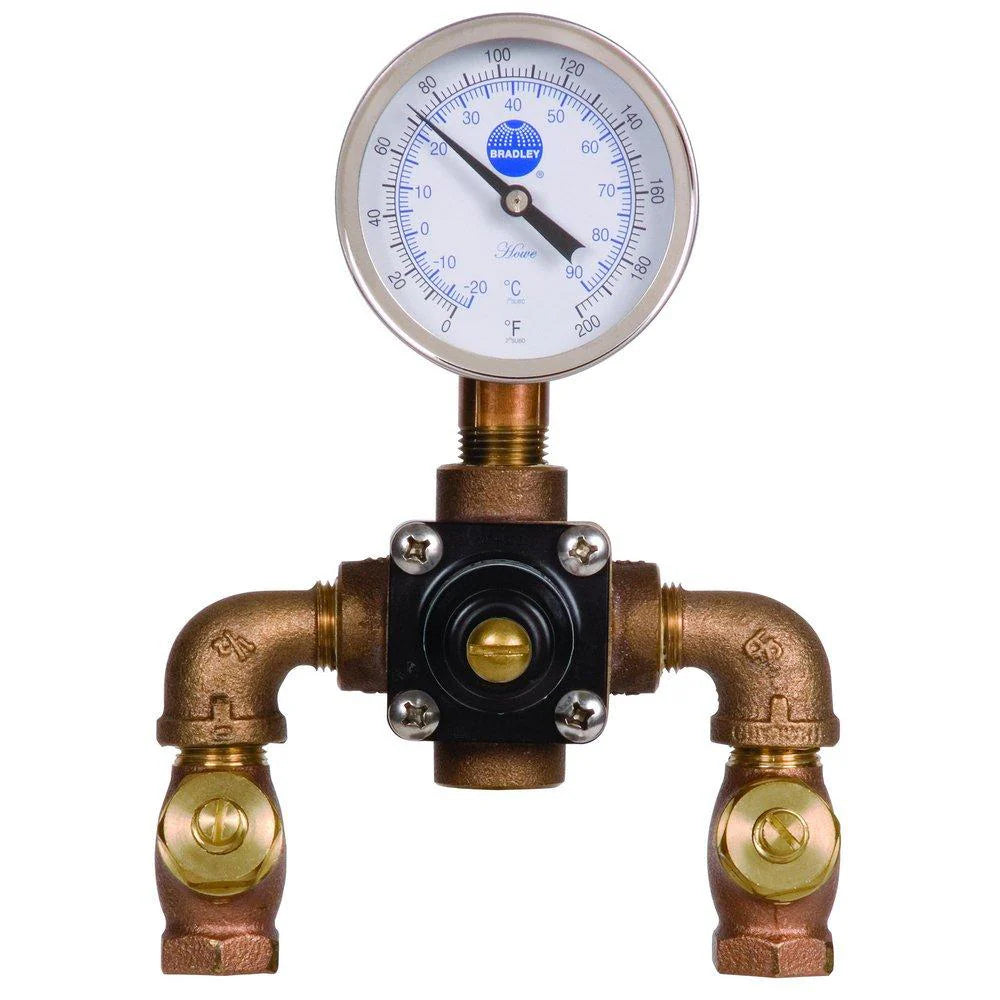

The Bradley Navigator 1/2 in. NPT Emergency Fixture 1.5 GPM Thermostatic Mixing Valve, model S19-2000, ensures safety and reliability in emergency fixtures. This valve is specifically designed for use with eye and face wash units. It provides accurate temperature control and ensures safe water temperature for emergency use, automatically shutting off the hot water supply when the cold water supply is lost.

• Single valve design
• Easily installed and serviced
• Positive shut-off of hot supply when cold supply is lost

Product Highlights

This mixing valve is factory preset at 85 degrees Fahrenheit but has an adjustable temperature range of 65 to 95 degrees Fahrenheit. It includes built-in cold water bypass to ensure cold flow in emergency situations. The unit is universally mounted and dirt and lime resistant. Standards and certifications include ANSI/ISEA Z358.1 and cUPC.

Product Information

Standard Information

• Brand: Bradley Corporation
• MPN: S19-2000
• Emergency Fixture Use: Eye and face wash units

Technical Specifications

• Connection Size: 1/2 in
• Connection Type: NPT
• Flow Rate: 7 gpm
• Height: 8-3/8 in
• Includes: Wall Mounting Bracket
• Material: Rough Brass
• Mounting: Universal
• Pressure Rating: 125 psi
• Sub Brand: Navigator
• Temperature Rating: 65 - 95 deg F
• Standards/Certifications: ANSI/ISEA Z358.1, ASSE 1071, cUPC listed
