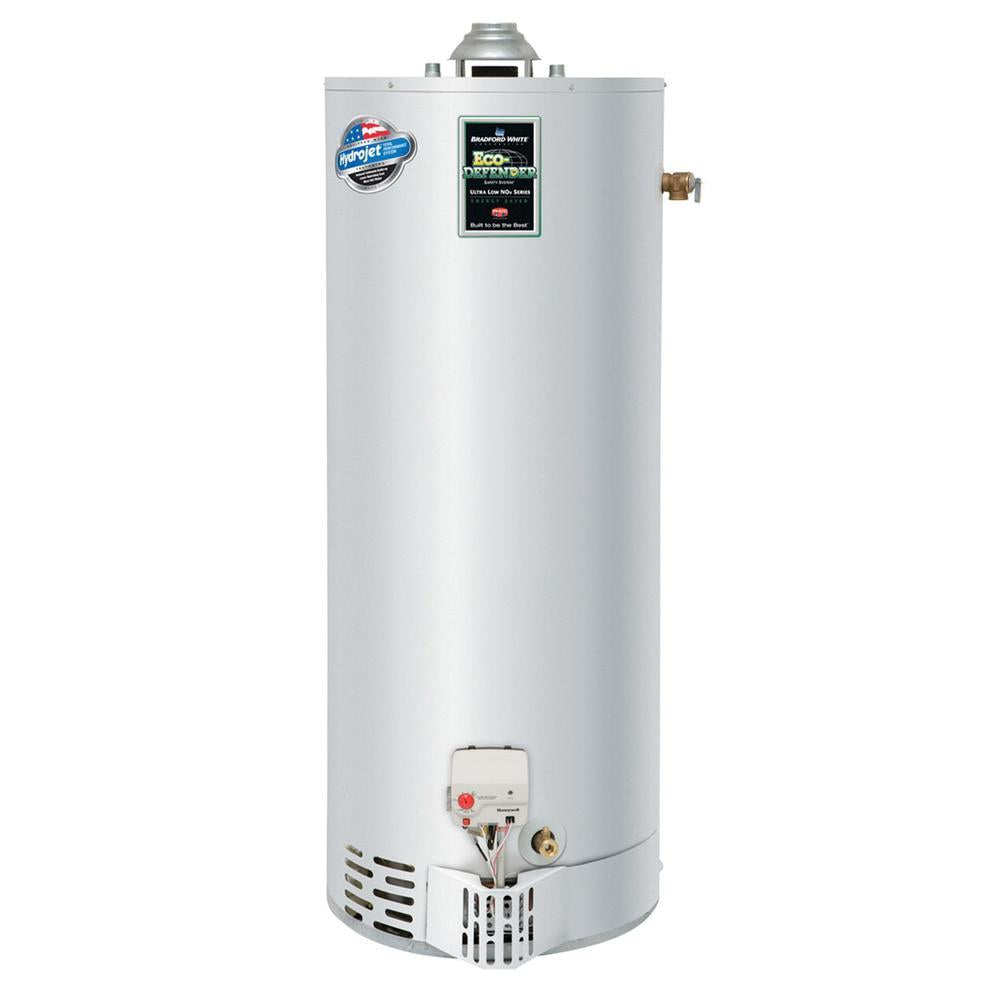

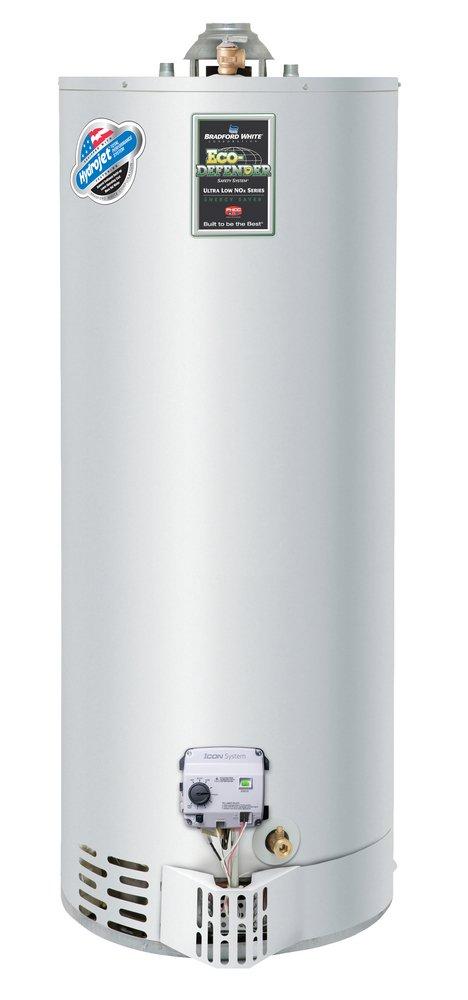

Bradford White URG250T6N-394 FVIR Eco-Defender Safety System 50 gal. 40 MBH Residential Natural Gas Water Heater

Product Description

The BRADFORD WHITE URG250T6N-394 FVIR Eco-Defender Safety System is a 50-gallon tall residential natural gas water heater. It features a Vitraglas lining for tank protection and a Hydro Jet Total Performance System to reduce sediment buildup. This model complies with ultra-low NOx requirements and has 3/4-inch NPT factory-installed dielectric fittings.

• Vitraglas Lining provides superior tank protection.
• Hydro Jet Total Performance System helps prevent sediment build-up.
• Complies with the latest Ultra-Low Nox Requirement.

Product Highlights

This Bradford White water heater offers efficient performance and advanced safety features for residential use.

Product Information

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: URG250T6N-394
• Country of Origin: USA

Technical Specifications

• Brand: Bradford White
• Mfr. No: URG250T6N-394
• Item No: 5132953
• Fuel Type: Natural Gas
• Vent Type: Atmospheric
• Capacity: 50 Gallons
• BTU Input: 40000
• Water Connection: 3/4"
• Energy Factor: 0.63
• Vent Size: 3 x 4 in
• Diameter: 22"
• Height: 60.5"
• Depth: 22"
• Intended Household: 3-4 Person
• Application: Residential
• Energy Star Rated: No
• Recovery Efficiency: 80%
• Max Altitude: 2000 Feet
• 1st Hour Delivery: 81 Gallons
• BTU Rating: 40000 Btu/hr
• First Hour Delivery: 83 gal
• Recovery Rate: 43 gph
• Efficiency: Up to 80 %
• Connection Type: NPT
• Pressure Rating: 150 psi
• Ignition System: Piezo
• Product Type: Natural Gas Water Heater
• Mounting: Floor Mounted
• Listing: ANSI Z21.10.1-2019/CSA 4.1-2019
• Prop65 Warning: Yes
• Cec Listed: Yes
• Center Line Of Water Connections: 8 in
• Doe Rated Storage Capacity: 48
• End Use: Water Heating
• Energy Source: Gas
• Floor To Gas Connection: 11.44 in
• Floor To Heater Top: 56.69 in
• Floor To Top Water Connections: 43 in
• Floor To Tp Connection: 49.88 in
• Floor To Vent Connection: 60.31 in
• Gas Connection Size: 0.5 in
• Input: 40000 BTU/Hr
• Massachusetts Approved: Yes
• Nitrogen Oxide Emissions Nox: Yes, it does comply with jurisdictions having 10ng/J NOx Regulations
• Placement: Indoor
• Product Group: Residential Water Heating
• Safety Certification: ANSI Z21.10.1-2019/CSA 4.1-2019
• Turndown Ratio: On/Off
• Uniform Energy Factor: 0.63
• Vent Category: Category I
• Vent Pipe Diameter Exhaust: 3 in
• Water Connection Size: 0.75 in
• Working Pressure Psi: 150 Psi
