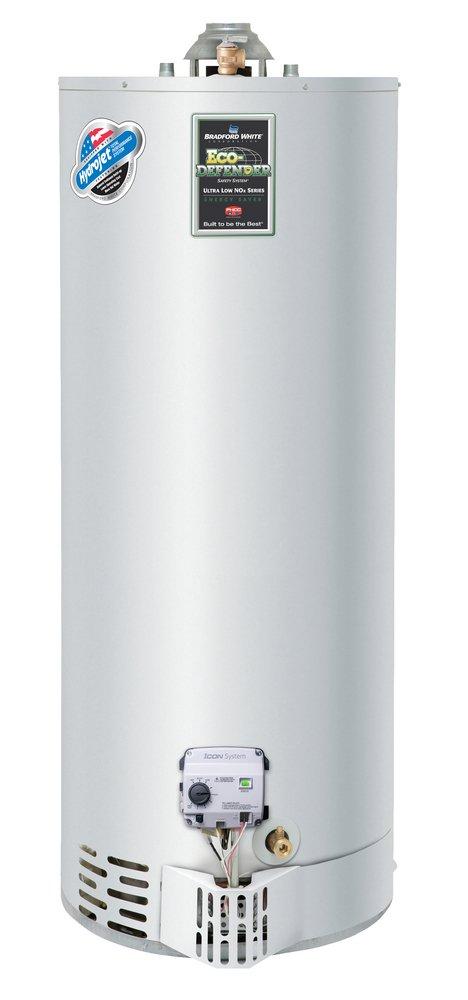

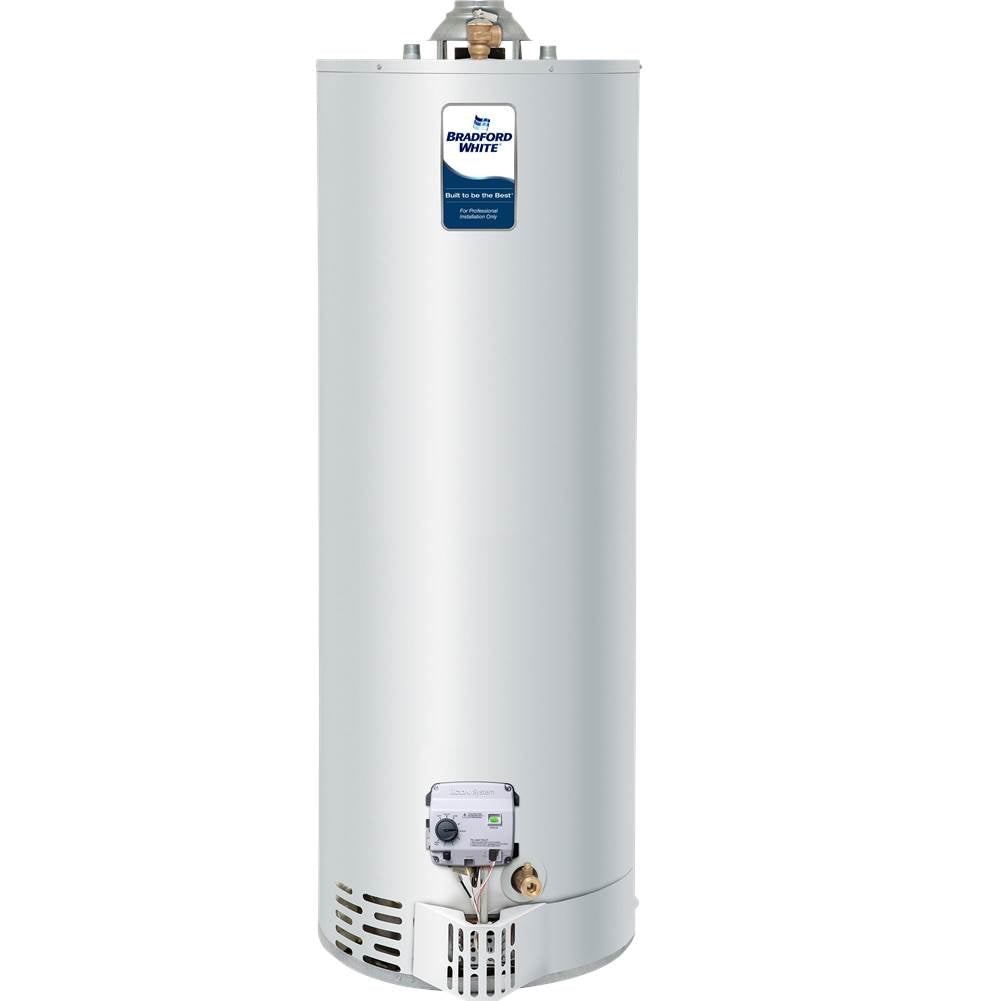

Bradford White URG230T6N-394 FVIR Eco-Defender Safety System 30 gal. Tall 32 MBH Residential Natural Gas Water Heater

Product Description

The BRADFORD WHITE URG230T6N-394 FVIR Eco-Defender Safety System is a 30-gallon tall residential natural gas water heater. It features a Vitraglas lining for tank protection and a Hydro Jet Total Performance System to reduce sediment buildup. This model complies with ultra-low NOx requirements and has 3/4-inch NPT factory-installed dielectric fittings.

• Features Vitraglas lining for superior tank protection.
• Equipped with Hydro Jet Total Performance System.
• Complies with the latest Ultra-Low Nox Requirement.

Product Highlights

This Bradford White water heater offers reliable performance and advanced safety features for residential use.

Product Information

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: URG230T6N-394

Technical Specifications

• Brand: Bradford White
• Capacity: 30 gal.
• Gas Type: Natural Gas
• Vent Type: Atmospheric
• Recovery Rate: 21 gph
• First Hour Rating: 52 gal.
• Ignition Type: Electronic
• Inlet Connection Size: 3/4 in.
• Outlet Connection Size: 3/4 in.
• Heating Capacity: 32000 Btu/hr
• Fuel Type: Natural Gas
• Gas Connection: 1/2 in
• Pressure Rating: 150 psi
• Ultra Low NOx: Yes
• Water Connection: 3/4 in NPT
• Product Type: Natural Gas Water Heater
• Diameter: 18"
• Depth: 21.19"
• Mounting: Floor Mounted
• CEC: Yes
• Prop65 Warning: Yes
• Application: Residential
• Cec Listed: Yes
• Center Line Of Water Connections: 8 in
• Doe Rated Storage Capacity: 29
• End Use: Water Heating
• Energy Source: Gas
• Input: 32000 BTU/Hr
• Massachusetts Approved: Yes
• Nitrogen Oxide Emissions Nox: Yes, it does comply with jurisdictions having 10ng/J NOx Regulations
• Placement: Indoor
• Product Group: Residential Water Heating
• Quantity: 1
• Safety Certification: ANSI Z21.10.1-2019/CSA 4.1-2019
• Turndown Ratio: On/Off
• Uniform Energy Factor: 0.60
• Vent Category: Category I
• Water Connection Size: 0.75 in
• Energy Factor: 0.6
• Vent Size: 3 x 4 in
• Working Pressure Psi: 150 Psi
• Floor To Gas Connection: 11.44 in
• Floor To Heater Top: 56.22 in
• Floor To Top Water Connections: 57.06 in
• Floor To Tp Connection: 49.66 in
• Floor To Vent Connection: 59.84 in
• Vent Pipe Diameter Exhaust: 0.75 in
