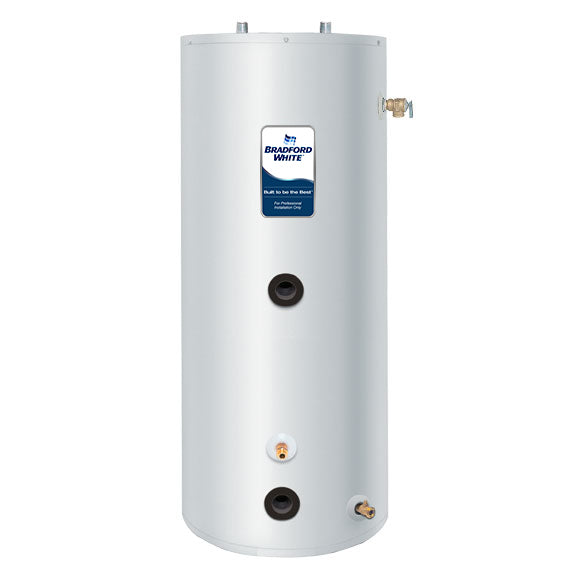

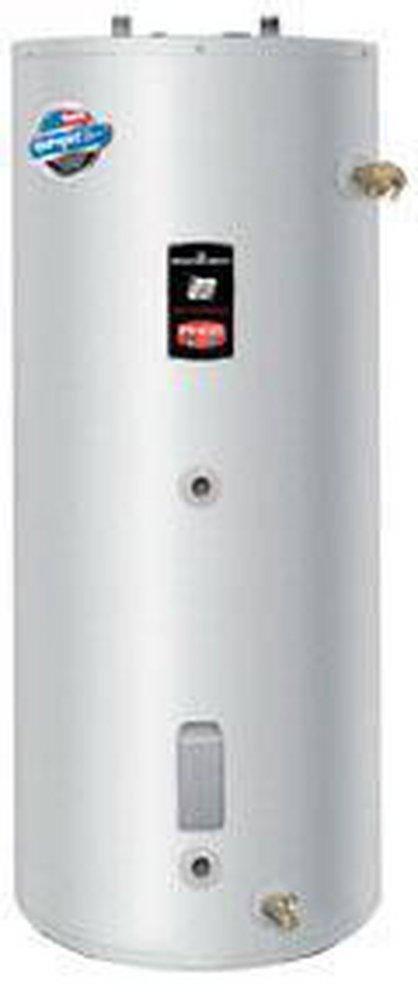

Bradford White SW-2-80-L PowerStor Series Indirect Water Heater 75 gal

Product Description

The BRADFORD WHITE SW-2-80-L PowerStor Series® indirect water heater works alongside a boiler to provide a reliable and efficient hot water solution. It features a single wall heat exchanger for quicker heat transfer and faster hot water delivery. The contractor or specifying engineer is responsible for ensuring the product meets local and state codes, standards, and regulations.

• Single-wall heat exchanger
• Vitraglas enamel lining helps to extend tank and heat exchanger life
• Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank

Product Highlights

This 75-gallon indirect water heater offers efficient hot water delivery and superior tank protection. Features include a single-wall heat exchanger and Vitraglas lining.

Product Information

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: SW-2-80-L
• Country of Origin: USA

Technical Specifications

• Capacity (Gallons): 75
• Connection Type: Threaded
• Water Connection: 3/4"
• Diameter (Inches): 24"
• Height (Inches): 59"
• Test Pressure (PSI): 300 psi
• Working Pressure: 150 psi
• BTU Input: 157000
• Application: Plumbing
• Domestic Water Capacity (Gallons): 71
• Coil Water Volume (Gallons): 2.7
• Heat Exchanger Type: Single Coil
• 1st Hour Rating, AHRI (180°F Boiler water temp): 295 Gal @ 135°F
• Continuous Draw Rating, AHRI (180°F Boiler water temp): 235 GPH @ 135°F
• Standby Heat Loss Rating, AHRI (180°F Boiler water temp): 0.6 °F/Hr
• Min. Heat Req. Rate, AHRI (180°F Boiler water temp): 175,000 BTU/Hr
• Min. Heat Source Flow Rate, AHRI (180°F Boiler water temp): 13.7 GPM
• 1st Hour Rating, DOE (200°F boiler water, 50°F potable water): 321 Gal @ 140°F 470 Gal @ 115°F
• Continuous Draw Rating, DOE (200°F boiler water, 50°F potable water): 4.2GPM @ 140°F 6.7GPM @ 115°F
• Anode(s): 3 Aluminum Rods
• Max Supply Water Temperature: 240°F
• Potable Water Connections: 3/4" NPT
• Boiler (Heat Exchanger) Supply and Return Connections: 3/4" NPT
• Insulation Thickness: 2"
