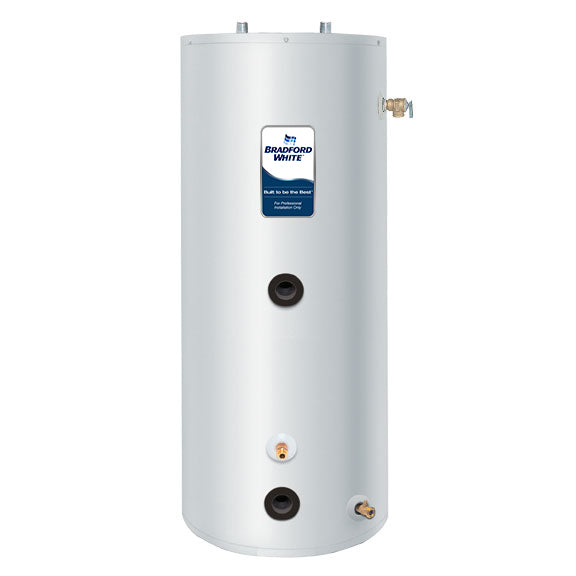

Bradford White SW-2-65-L PowerStor Indirect Water Heater 57.0 Gal

Product Description

The Bradford White SW-2-65-L is a 57-gallon PowerStor series single-wall coil indirect domestic hot water heater. Features include an immersed adjustable Honeywell aquastat, T&P relief valve, and three aluminum anode rods. The 2" non-CFC tank insulation minimizes heat loss at only 0.7°F / hr.

• Single-wall heat exchanger
• Vitraglas enamel lining helps to extend tank and heat exchanger life
• Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank

Product Highlights

This Bradford White indirect water heater connects to your boiler for efficient hot water supply with minimal heat loss and long-lasting performance.

Product Information

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: SW-2-65-L

Technical Specifications

• Application: Plumbing
• Capacity (Gallons): 60
• Connection Type: Threaded
• Diameter (Inches): 22"
• Height (Inches): 59.25"
• Test Pressure (PSI): 300 psi
• Water Connection: 3/4"
• Working Pressure (PSI): 150 psi
• BTU Input: 157000
• Domestic Water Capacity (Gallons): 57
• Coil Water Volume (Gallons): 2.7
• Heat Exchanger Type: Single Coil
• 1st Hour Rating, AHRI (180°F Boiler water temp): 275 Gal @ 135°F
• Continuous Draw Rating, AHRI (180°F Boiler water temp): 235 GPH @ 135°F
• Standby Heat Loss Rating, AHRI (180°F Boiler water temp): 0.7 °F/Hr
• Min. Heat Req. Rate, AHRI (180°F Boiler water temp): 175,000 BTU/Hr
• Min. Heat Source Flow Rate, AHRI (180°F Boiler water temp): 13.7 GPM
• 1st Hour Rating, DOE (200°F boiler water, 50°F potable water): 306 Gal @ 140°F 456 Gal @ 115°F
• Continuous Draw Rating, DOE (200°F boiler water, 50°F potable water): 4.2GPM @ 140°F 6.7GPM @ 115°F
• Anode(s): 3 Aluminum Rods
• Max Supply Water Temperature: 240°F
• Potable Water Connections: 3/4" NPT
• Boiler (Heat Exchanger) Supply and Return Connections: 3/4" NPT
• Max Working Pressure: 150 psi
• Dimensions (Diameter x Height): 22" x 59-1/4"
• Insulation Thickness: 2"
• Domestic Hot Water (DHW) Capacity (Gal.): 57
• Heating Water Capacity (Gal.): 57
• Fuel Type: Indirect Fired
• Overall Height (in.): 60
• Height (Floor To Top of Heater - in.): 59.25
• Jacket Diameter (in.): 22
• Minimum Boiler Output (BTU/hr): 115000
• Continuous Draw Rating (Gal./Hr@135°): 175
• First Hour Delivery Rating (Gal.@135°): 215
• Standby Loss (°F/hr.): 0.7
• Heating Surface (sq. ft.): 14.2
• Boiler Supply/Return (in.): .75
• Domestic Inlet/Outlet Connections (in.): .75
• Collection:: PowerStor Series®
• End Connections:: NPT
• Energy Star Compliant:: No
• First Hour Rating:: 275
• Height:: 60
• Water Heater Capacity Range:: 51 - 100 gal
• Water Heater Type:: Indirect Fired
