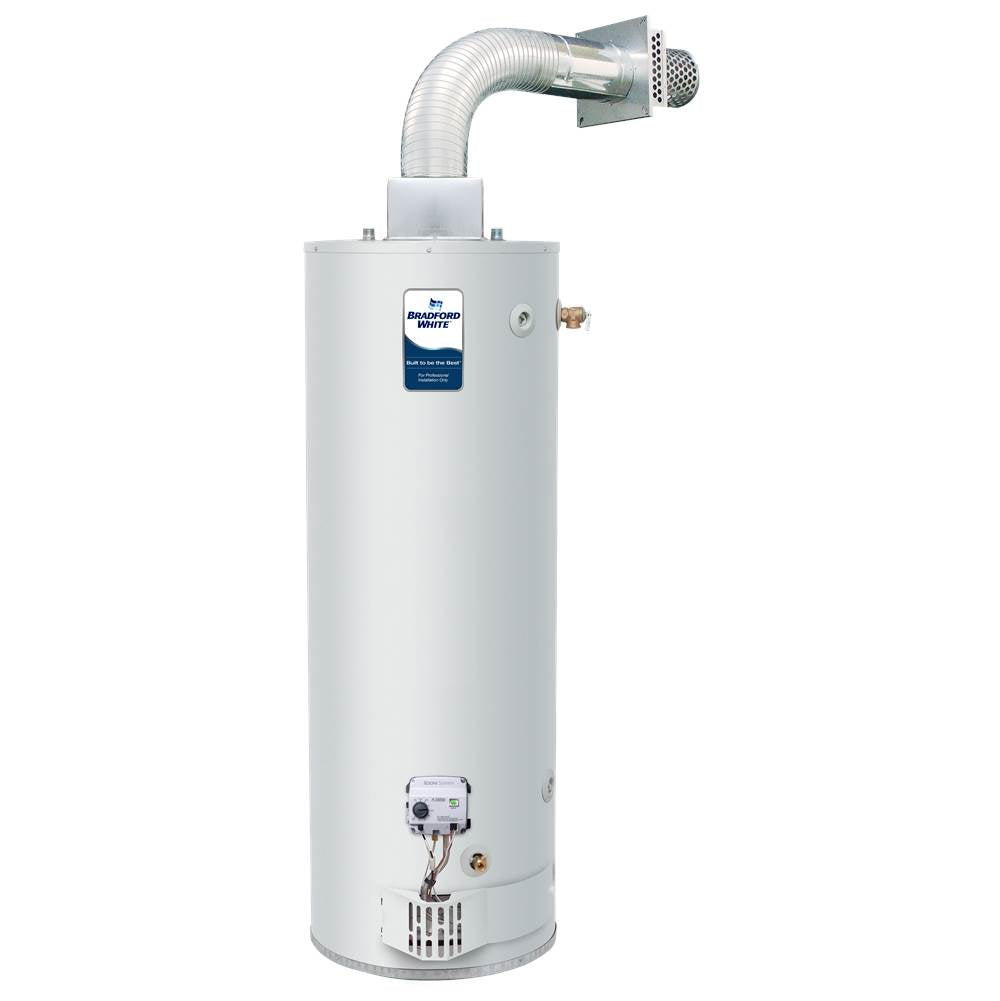

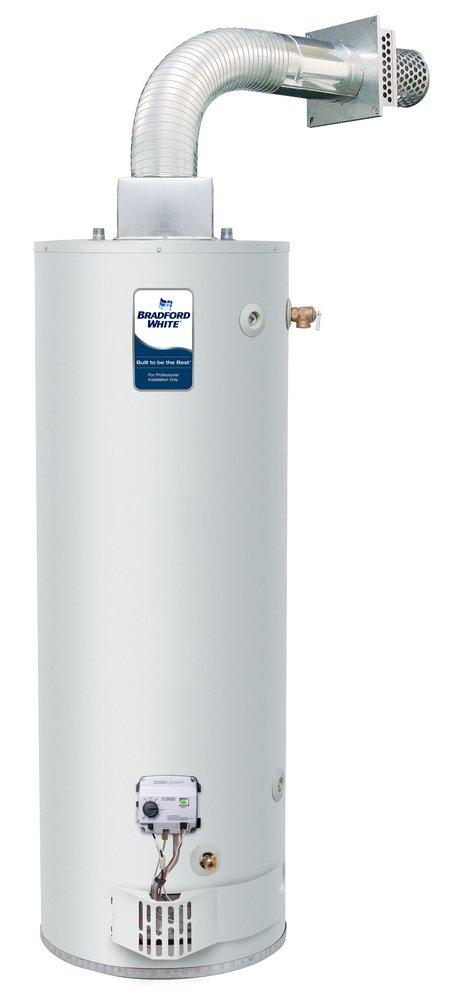

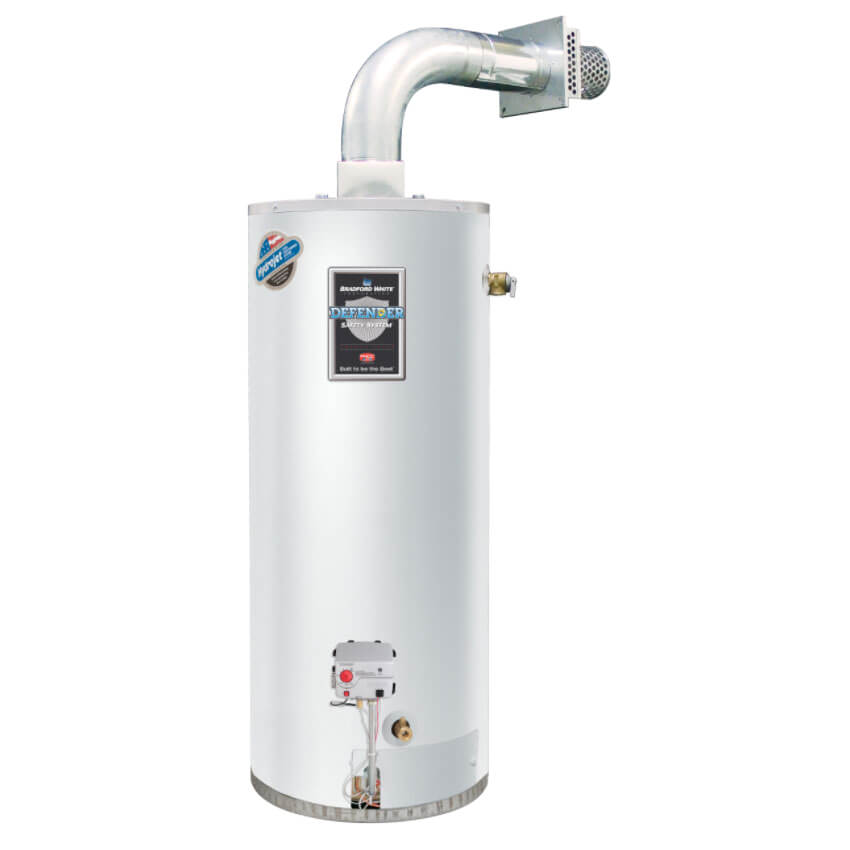

Bradford White RG2DV40S6X-FLX 40 Gallon Defender Safety System Direct Vent Energy Saver Residential Water Heater 36,000 BTU

Product Description

The Bradford White RG2DV40S6X-FLX is a 40-gallon direct vent water heater that utilizes a co-axial vent pipe, drawing air from the outside and venting combustion gases back outside, making it suitable for areas lacking sufficient combustion air. It features a flexible vent kit with a maximum vent length of 100 inches for horizontal termination.

• Features the Bradford White ICON System with millivolt powered technology and piezo igniter, eliminating the need for external electricity.
• Offers enhanced performance with proprietary algorithms for improved First Hour Delivery ratings and tighter temperature differentials.
• Includes a factory-installed Hydrojet Total Performance System to reduce sediment build-up and increase hot water delivery.

Product Highlights

This propane gas water heater has a Vitraglas lining for corrosion protection and 1-inch Non-CFC foam insulation to reduce heat loss. It is designed for 2-3 person households.

Product Information

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: RG2DV40S6X-FLX
• Country of Origin: USA

Technical Specifications

• BTU Input: 36000
• Fuel Type: Propane
• Vent Size: 3-6"
• Vent Type: Direct Vent
• Application: Plumbing
• Energy Factor: 0.62
• Gas Connection: 1/2"
• Water Connection: 3/4"
• Diameter (Inches): 22"
• Energy Star Rated: No
• Capacity (Gallons): 40
• Intended Household: 2-3 Person
• Max Altitude (Feet): 2000
• Recovery Efficiency: 78%
• 1st Hour Delivery (Gallons): 73
• Height (Inches): 63.375"
• Depth (Inches): 31"
• Finish: Vitraglas®
• Heating Capacity: 36000 Btu/hr
• Ignition Type: Piezo
• Material: Steel
• Mounting Type: Surface
• Pressure Rating: 150 psi
• Recovery Rate: 39 gph at 90 deg F Rise
• Tall or Short: Short
• Tank Capacity: 40 gal
• Temperature Rating: 160 deg F
• Type: Standard
• Ultra Low NOx: false
• Uniform Energy Factor: 0.60
• Working Pressure Psi: 150 Psi
• Product Type: Liquid Propane Water Heater
• Country of Origin: USA
• Oversized: Yes
• Made in USA: Yes
• Mounting: Floor Mounted
• Listing: ANSI Z21.10.1-2019/CSA 4.1-2019
• Prop65 Warning: Yes
• Cec Listed: Yes
• Center Line Of Water Connections: 8 in
• Doe Rated Storage Capacity: 38
• End Use: Water Heating
• Energy Source: Gas
• First Hour Rating: 62
• Floor To Gas Connection: 13 in
• Floor To Heater Top: 50.19 in
• Floor To Top Water Connections: 41 in
• Floor To Tp Connection: 43.5 in
• Gas Connection Size: 0.5 in
• Input: 36000 BTU/Hr
• Massachusetts Approved: Yes
• Placement: Indoor
• Product Group: Residential Water Heating
• Safety Certification: ANSI Z21.10.1-2019/CSA 4.1-2019
• Vent Category: Category I
• Vent Pipe Diameter Exhaust: 3 in
