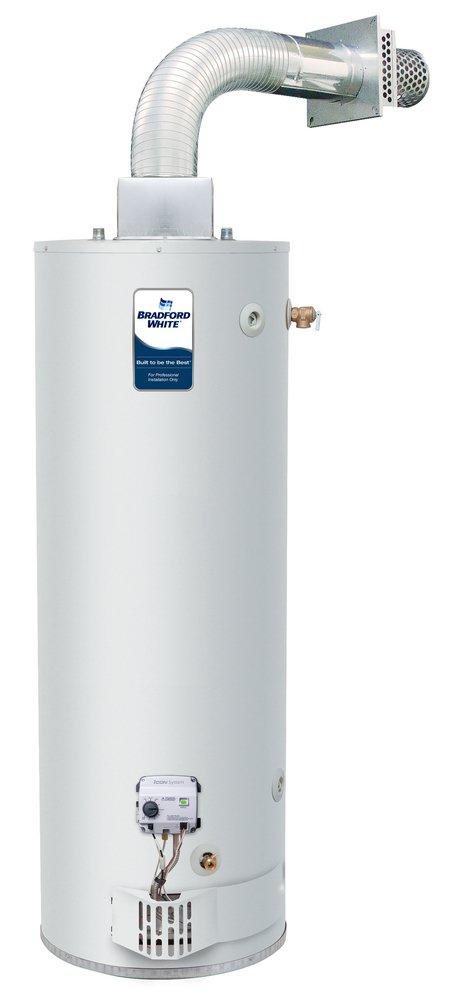

Bradford White RG2DV40S6NFLX 40 Gallon Defender Safety System Direct Vent Energy Saver Residential Water Heater (Nat Gas)

Product Description

The BRADFORD WHITE RG2DV40S6NFLX is a 40-gallon Defender Safety System direct vent energy saver residential water heater designed for natural gas. It features a flexible vent kit and utilizes a co-axial vent pipe for combustion air intake and exhaust. The Bradford White ICON System provides intelligent gas control with millivolt-powered technology and a piezo igniter.

• Flexible Vent Kit with a maximum vent length of 100" (horizontal termination only).
• Bradford White ICON System with intelligent gas control and piezo igniter.
• Vitraglas lining provides superior protection from the corrosive effects of hot water.

Product Highlights

This Bradford White water heater offers enhanced performance, intelligent diagnostics, and a maintenance-free design for efficient and reliable hot water supply.

Product Information

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: RG2DV40S6NFLX
• Country of Origin: USA

Technical Specifications

• Intended Household: 2-3 Person
• Fuel Type: Natural Gas
• Capacity (Gallons): 40
• Application: Plumbing
• BTU Input: 38000
• Water Connection: 3/4"
• Vent Type: Direct Vent
• First Hour Delivery (Gallons): 73
• Gas Connection: 1/2"
• Height (Inches): 63.375"
• Vent Size: 3-6"
• Diameter (Inches): 22"
• Recovery Efficiency: 78%
• Depth (Inches): 31"
• Energy Factor: 0.62
• Energy Star Rated: No
• Max Altitude (Feet): 2000
• BTU Rating: 38000 Btu/hr
• Connection Type: NPT
• Domestic/Import: Domestic
• Finish: Vitraglas Lined
• Ignition System: ICON®
• Ignition Type: Piezo
• Mounting Type: Floor
• Pressure Rating: 150 psi
• Recovery Rate: 41 gph
• Temperature Rating: 160 deg F
• Uniform Energy Factor (UEF): 0.60
• Product Type: Natural Gas Water Heater
• Center Line Of Water Connections: 8 in
• Doe Rated Storage Capacity: 38
• End Use: Water Heating
• Energy Source: Gas
• First Hour Rating: 62
• Floor To Gas Connection: 13 in
• Floor To Heater Top: 50.19 in
• Floor To Top Water Connections: 41 in
• Floor To Tp Connection: 43.5 in
• Gas Connection Size: 0.5 in
• Input: 38000 BTU/Hr
• Massachusetts Approved: Yes
• Placement: Indoor
• Product Group: Residential Water Heating
• Safety Certification: ANSI Z21.10.1-2019/CSA 4.1-2019
• Trailer Load Factor Drop 53: 68
• Trailer Load Factor Straight 53: 72
• Turndown Ratio: On/Off
• Vent Category: Category I
• Vent Pipe Diameter Exhaust: 3 in
• Water Connection Size: 0.75 in
• Working Pressure Psi: 150 Psi
• Oversized: Yes
• Made in USA: Yes
• Mounting: Floor Mounted
• Listing: ANSI Z21.10.1-2019/CSA 4.1-2019
• Prop65 Warning: Yes
• Cec Listed: Yes
• AFUE: 78.00 %
• ANSI: ANSI Z21.10.1
• Antimicrobial: Yes
• Emission: Low NOx
• Energy Star Compliant: No
• Lining of Tank: Vitraglas®
• MBH: 38
• Maximum Temperature: 160
• NSF: NSF 372
• Power Source: Gas
• Pressure - Maximum: 300 psi
• Proposition 65: WARNING: CANCER AND REPRODUCTIVE HARM. WWW.P65WARNINGS.CA.GOV
• Recovery 90°F Rise GPH: 41
• Temperature Range: Up to 160 Deg F
• UL Listed: No
• UPC: 671632808564
• Water Connections: Top
• Water Heater Capacity Range: 30 - 40 gal
• Water Heater Type: Short
