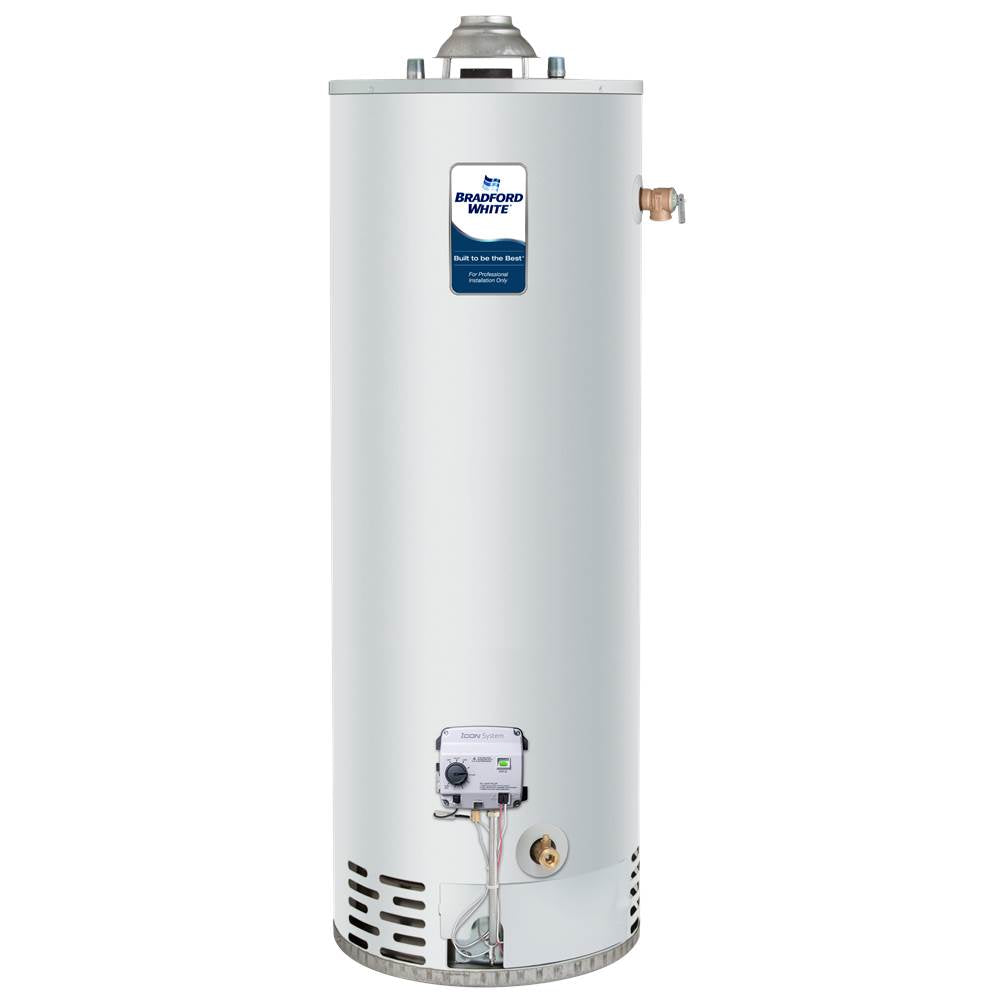

Bradford White RG240T6N-394-600 Gas Water Heater 40000 Btu/hr 40 gal

Product Description

The Bradford White RG240T6N-394-600 is a Defender Safety System gas water heater with a 40,000 BTU/hr heating capacity and a 40-gallon tank. It features atmospheric venting and delivers a recovery rate of 43 GPH at a 90-degree F rise. The unit is designed for residential use with a 6-year tank warranty.

• Equipped with Defender Safety System
• Features a 40-gallon tank capacity
• Operates on natural gas with a 40000 BTU/hr input

Product Highlights

Residential natural gas water heater with a 40-gallon tank, 40000 BTU/hr input, and atmospheric vent.

Product Information

Standard Information

• Brand: Bradford White
• Manufacturer Part Number: RG240T6N-394-600
• Country of Origin: USA

Technical Specifications

• Brand: Bradford White
• Domestic/Import: Domestic
• Energy Factor: 0.64
• Fuel Type: Natural Gas
• Gas Connection: 1/2 in
• Heating Capacity: 40000 Btu/hr
• Ignition Type: Piezo
• Material: Steel
• Pressure Rating: 150 psi
• Recovery Rate: 43 gph at 90 deg F Rise
• Tank Capacity: 40 gal
• Temperature Rating: Up to 160 deg F
• Ultra Low NOx: false
• Vent Size: 3 in
• Vent Type: Atmospheric
• Water Connection: 3/4 in NPT
• Product Type: Natural Gas Water Heater
• Diameter: 20"
• Depth: 23.5"
• Capacity (gal.): 40
• Application: Residential
• Center Line Of Water Connections: 8 in
• Doe Rated Storage Capacity: 38
• End Use: Water Heating
• Energy Source: Gas
• First Hour Rating: 75
• Floor To Gas Connection: 13 in
• Floor To Heater Top: 56.63 in
• Floor To Top Water Connections: 43 in
• Floor To Tp Connection: 49.75 in
• Floor To Vent Connection: 60.13 in
• Gas Connection Size: 0.5 in
• Input: 40000 BTU/Hr
• Massachusetts Approved: Yes
• Nitrogen Oxide Emissions Nox: No, it does not comply with jurisdictions having 10ng/J NOx Regulations
• Placement: Indoor
• Product Group: Residential Water Heating
• Quantity: 1
• Safety Certification: ANSI Z21.10.1-2019/CSA 4.1-2019
• Trailer Load Factor Drop 53: 104
• Trailer Load Factor Straight 53: 108
• Turndown Ratio: On/Off
• Uniform Energy Factor: 0.64
• Vent Category: Category I
• Vent Pipe Diameter Exhaust: 3 in
• Water Connection Size: 0.75 in
• Working Pressure Psi: 150 Psi
• Listing: ANSI Z21.10.1-2019/CSA 4.1-2019
• ANSI: ANSI Z21.10.1 2017
• Antimicrobial: Yes
• BTU: 40000
• CEC Compliant: For Sale in CA
• CSA Certified: CSA 4.1-2019
• Collection: FVIR Defender Safety System®
• Drain Valve Material: Brass
• ETL Listed: No
• Emission: Low NOx
• End Connections: NPT
• Energy Star Compliant: No
• Height: 60-1/8 in
• Lining of Tank: Vitraglas®
• MBH: 40
• Power Source: Gas
• Pressure - Maximum: 300 psi
• Recovery 90°F Rise GPH: 43
• UL Listed: No
• UPC: 671632313822
• Uniform Energy Factor (UEF): 0.64
• Water Connections: Top
• Water Heater Capacity Range: 30 - 40 gal
• Water Heater Type: Tall
